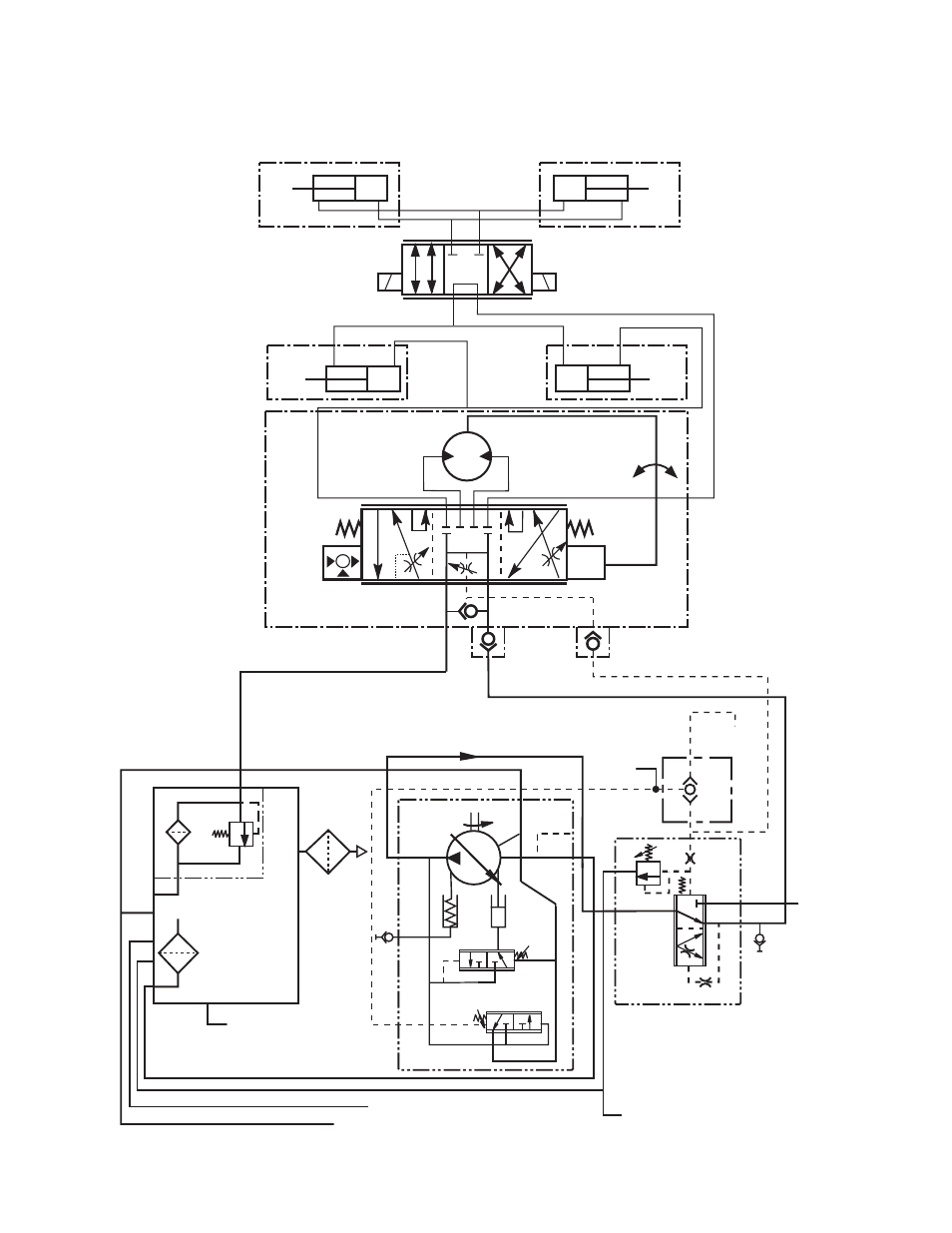

8042/10042/10054 Steering Schematic
(S/N 9909 & After)
RESERVOIR
25
PSI
TEMP. SWITCH
195° F
500 / 600
PSI STANDBY
3000
PSI
PUMP
X
SHUTTLE
VALVE
0-45
GPM
PRESSURE
REDUCING
VALVE
PRIORITY
VALVE
2450-2550
PSI
REAR AXLE VALVE
BRAKE VALVE
TP
X
4-W
2-W
CRAB
STEERING CYLINDER - L.H. - REAR
STEERING CYLINDER - R.H. - REAR
STEERING CYLINDER
R.H. - FRONT
STEERING CYLINDER
L.H. - FRONT
CONTROL
VALVES
CONTROL
VALVES
MH0650
