SIMULATED FLOW OPERATION
The Simulated Flow mode of the Hale FoamLogix
system allows operation of the foam pump without
discharging water through a foam ca pable discharge
or when the flow sensor is not functioning.
The simulated flow mode is used for draining the
foam tank for:
❑
Cleaning
❑
Checking calibration of the feedback sensor
❑
Verifying foam pump operation
❑
Manually controlling foam injection if the flow
sensor malfunctions.
The factory default simulated flow rate is 150
GPM (568 LPM). The simulated flow rate and the
concentrate injection percentage rate are set by the
rate adjustment buttons on the control unit display,
while in simulated flow mode.
The simulated flow function provides manual
operation of the foam injection system required by
NFPA standards.
CAUTION!
WHEN OPERATING THE HALE FOAMLOGIX IN
SIMULATED FLOW MODE AN OUTLET FOR THE
FOAM CONCENTRATE MUST BE PROVIDED TO
PREVENT EXCESSIVE PRESSURE BUILDUP IN
DISCHARGE PIPING OR HOSES.
Simulated flow sequence
Uncoil and place the end of the bypass hose 1.
into a suitable container to collect the foam
concentrate.
Place the BYPASS valve in the 2. BYPASS
position.
Energize the apparatus electrical system and 3.
press Hale FoamLogix power button ( i ) to turn
ON the system.
The Hale FoamLogix enters the STANDBY 4.
mode. (See Figure 41: “Display - Simu lated
Flow Operation.”)

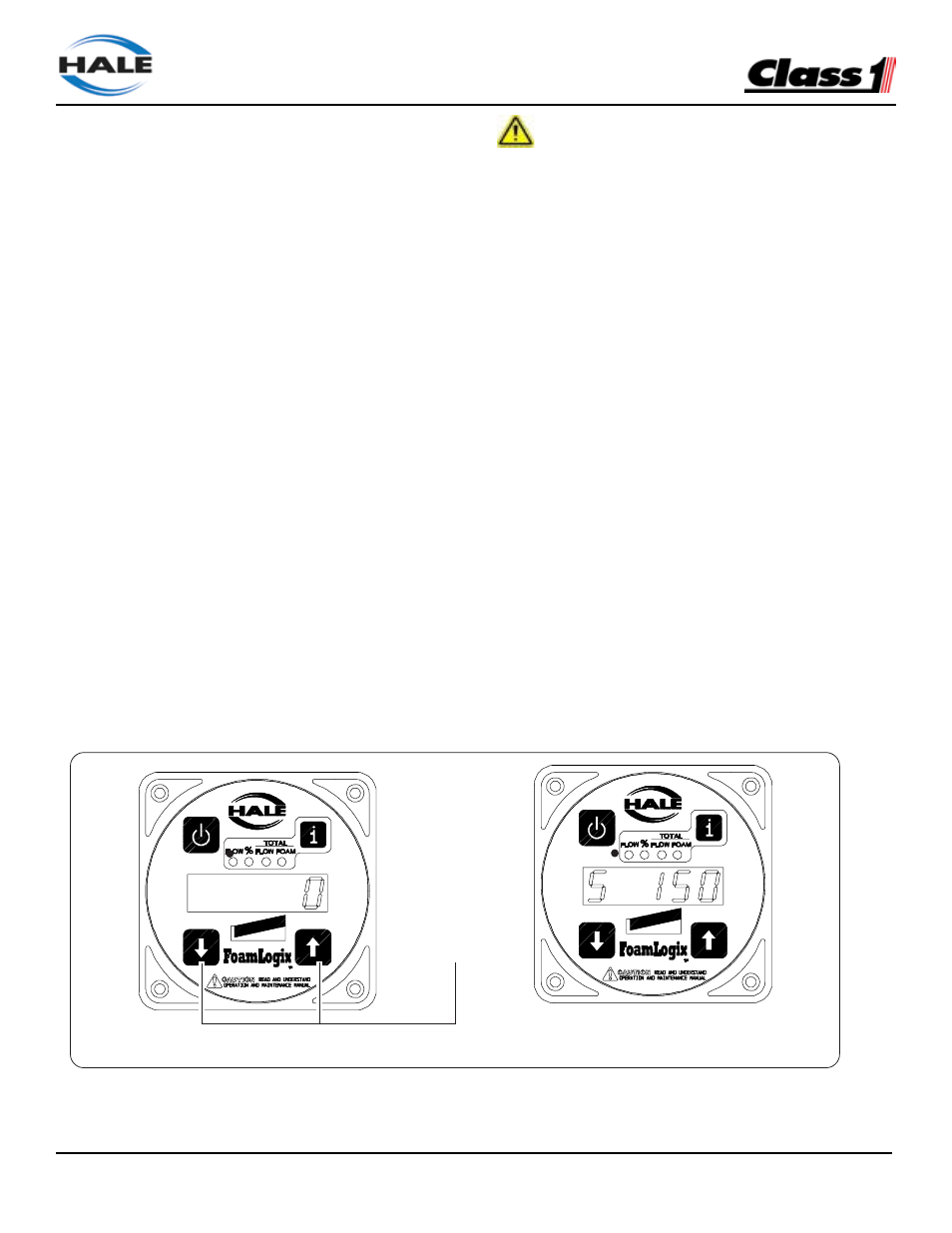

Figure 41: Display - Simulated Flow Operation
64 FOAMLOGIX, Model 2.1A Class "A"
Electronic Foam Proportioning System
Operation
ISO 9001 CERTIFIED
The Simulated Flow mode of the Hale FoamLogix
system allows operation of the foam pump
without discharging water through a foam ca-
pable discharge or when the flow sensor is not
functioning.
The simulated flow mode is used for draining the
foam tank for:
❑
Cleaning
❑
Checking calibration of the feedback
sensor
❑
Verifying foam pump operation
❑
Manually controlling foam injection if the
flow sensor malfunctions.
The factory default simulated flow rate is 150
GPM (568 LPM). The simulated flow rate and
the concentrate injection percentage rate are set
by the rate adjustment buttons on the control unit
display, while in simulated flow mode.
The simulated flow function provides manual
operation of the foam injection system required
by NFPA standards.
CAUTION!
WHEN OPERATING THE HALE FOAMLOGIX IN
SIMULATED FLOW MODE AN OUTLET FOR THE
FOAM CONCENTRATE MUST BE PROVIDED TO
PREVENT EXCESSIVE PRESSURE BUILDUP IN
DISCHARGE PIPING OR HOSES.
Simulated flow sequence
1. Uncoil and place the end of the bypass
hose into a suitable container to collect the
foam concentrate.
2. Place the BYPASS valve in the BYPASS
position.
3. Energize the apparatus electrical system
and press Hale FoamLogix power button
( i ) to turn ON the system.
4. The Hale FoamLogix enters the STANDBY
mode. (See Figure 41: “Display - Simu-
lated Flow Operation.”)
SIMULATED FLOW OPERATION
Figure 41: Display - Simulated Flow Operation
Diaplay - Entering Simulated Flow Mode
Simultaneously
PRESS and RELEASE
Diaplay - Simulated Flow Mode
