FoamLogix, Model 2.1A and 1.7AHP Class “A”
Electronic Foam Proportioning Systems 37
FOAMLOGIX, Model 2.1A Class "A" 35
Electronic Foam Proportioning System
Installation
ISO 9001 CERTIFIED
Minimum Length Nipple for 2-1/2”
(64mm) Pipe = 12-1/2” (318mm)
Hale HPF25 Flow Sensor
Hale 115 2-1/2”
NPT Flange
Check Valve
Injector Fitting
Hale Mini Manifold,
provides 4 discharge
outlets. Hale “115”
Flanges available in 1-1/4”
to 3” FNPT (25-76mm)
Hale “115” Wafer-
Type Check Valve
Hale 2H-98H Elbow
(“115” Flange x
2-1/2” FNPT)
Hale “115”
Wafer-Type
Check Valve
Support Bracket
(Manufactured by Installer)

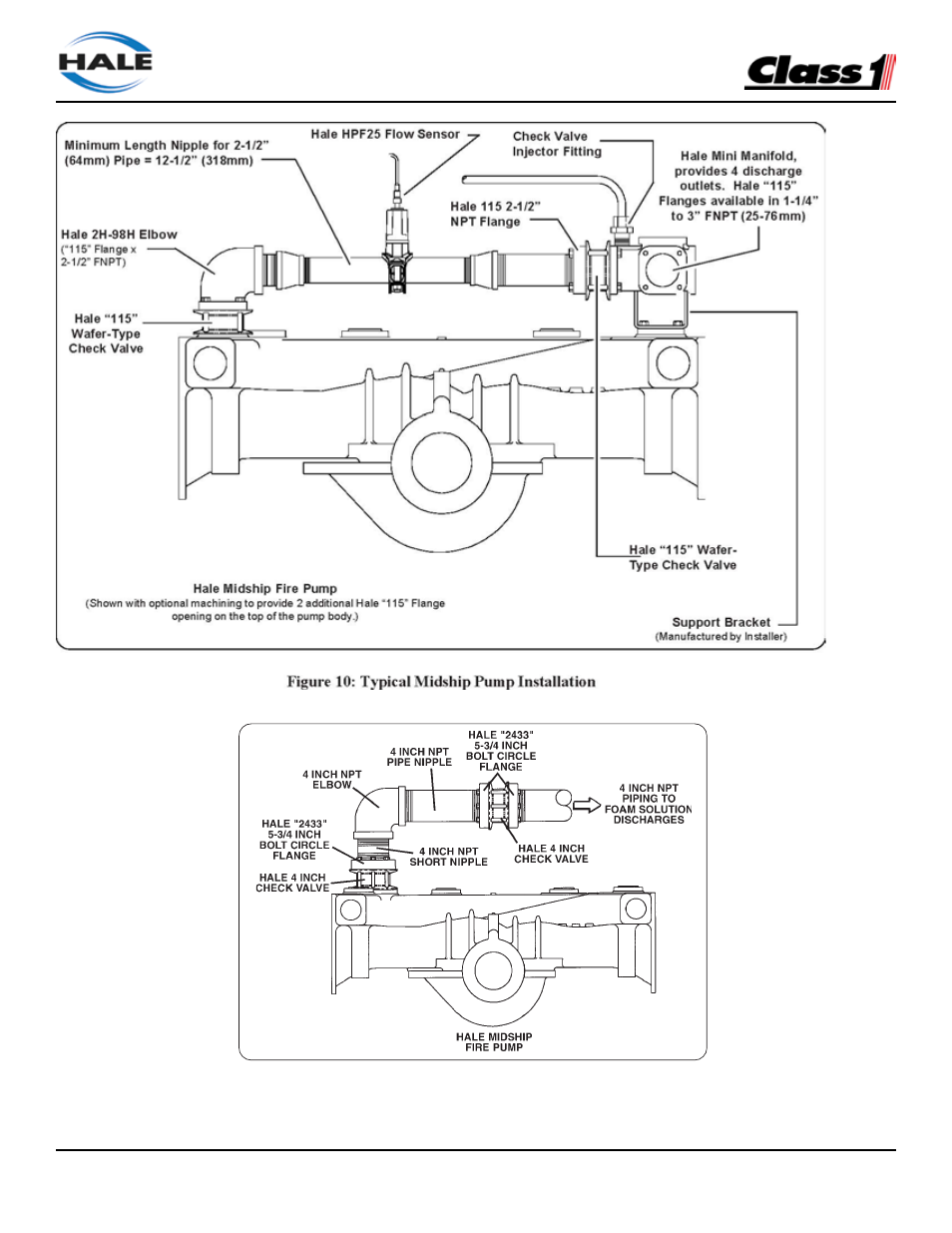

Figure 10: Typical Midship Pump Installation
Hale Midship Fire Pump
(Shown with optional machining to provide 2 additional Hale “115” Flange
opening on the top of the pump body.)
Figure 11: “Typical 4” Check Valve Installation, Midship Pump”
Figure 11: “Typical 4” Check Valve Installation, Midship Pump
