5. Installation
5.1 Location
The site selected for the installation of your DLC-XP/RC is largely dependent on that of the PULSAR
metering pump. Review the PULSAR Installation Operation Maintenance Instruction Manual provided
with your PULSAR metering pump. It details system related issues that are important to proper
operation of the PULSAR metering pump.
Your DLC-XP/RC with the NEMA-7 option consists of 2 main components: the DLC-XP is a pump
mounted actuator for installation in hazardous environments, the DLC-RC is the controller that
supervises the actuator (DLC-XP). The DLC-RC should be mounted in an area where the operator has
access to the front of the unit and a clear view of the display panel and keyboard. It must be mounted
within 305m (1000ft) of the DLC-XP. Avoid locations where both the DLC-XP/RC would be subjected
to extreme cold or heat. Note the following warning statement. The installation of this device should
comply with national, state and local codes.

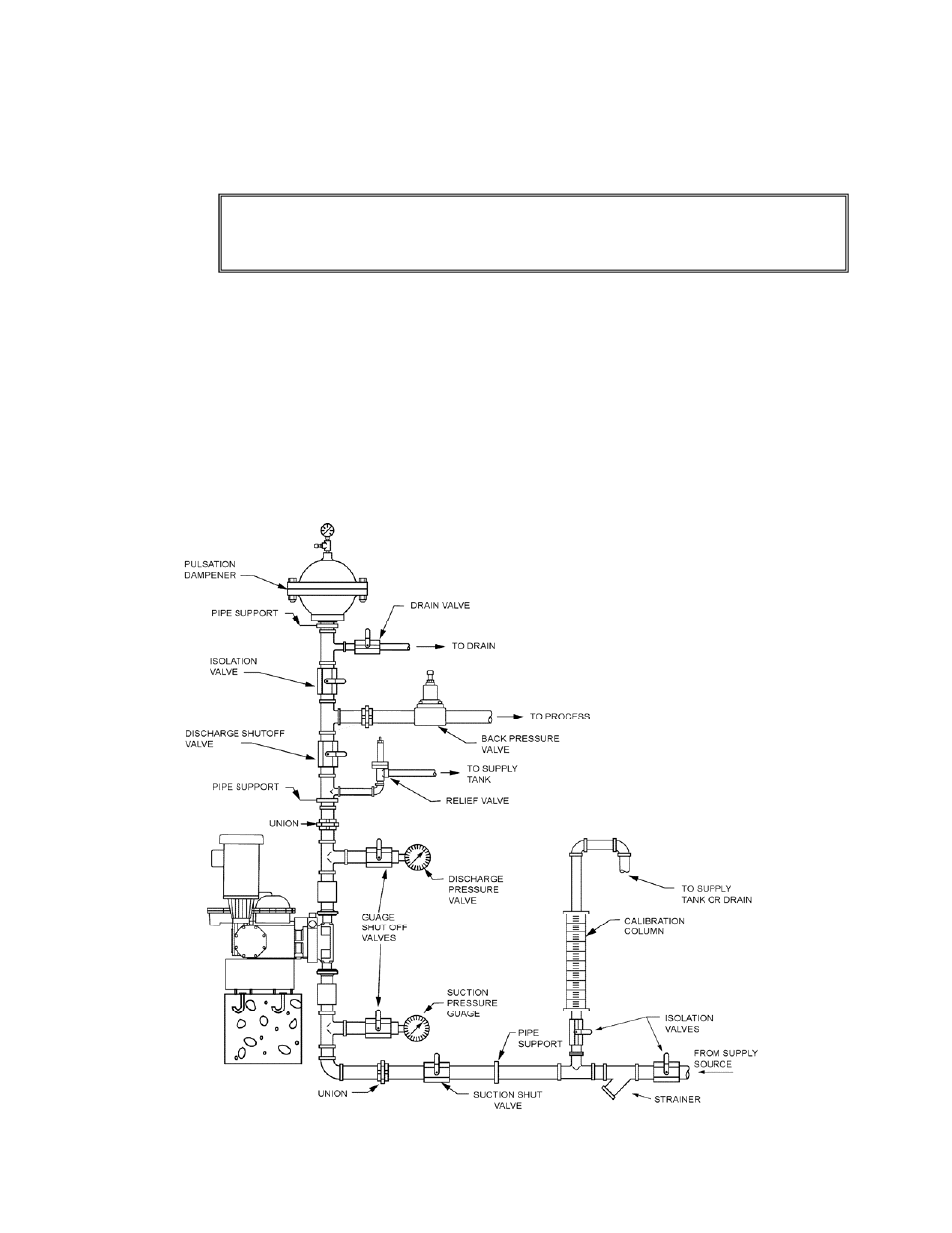

Figure 1. Typical Installation.
IMPORTANT! Review the Safety section prior to installing the DLC-XP/RC. This
section contains important information required to properly install and operate the
equipment in an industrial environment.
