10

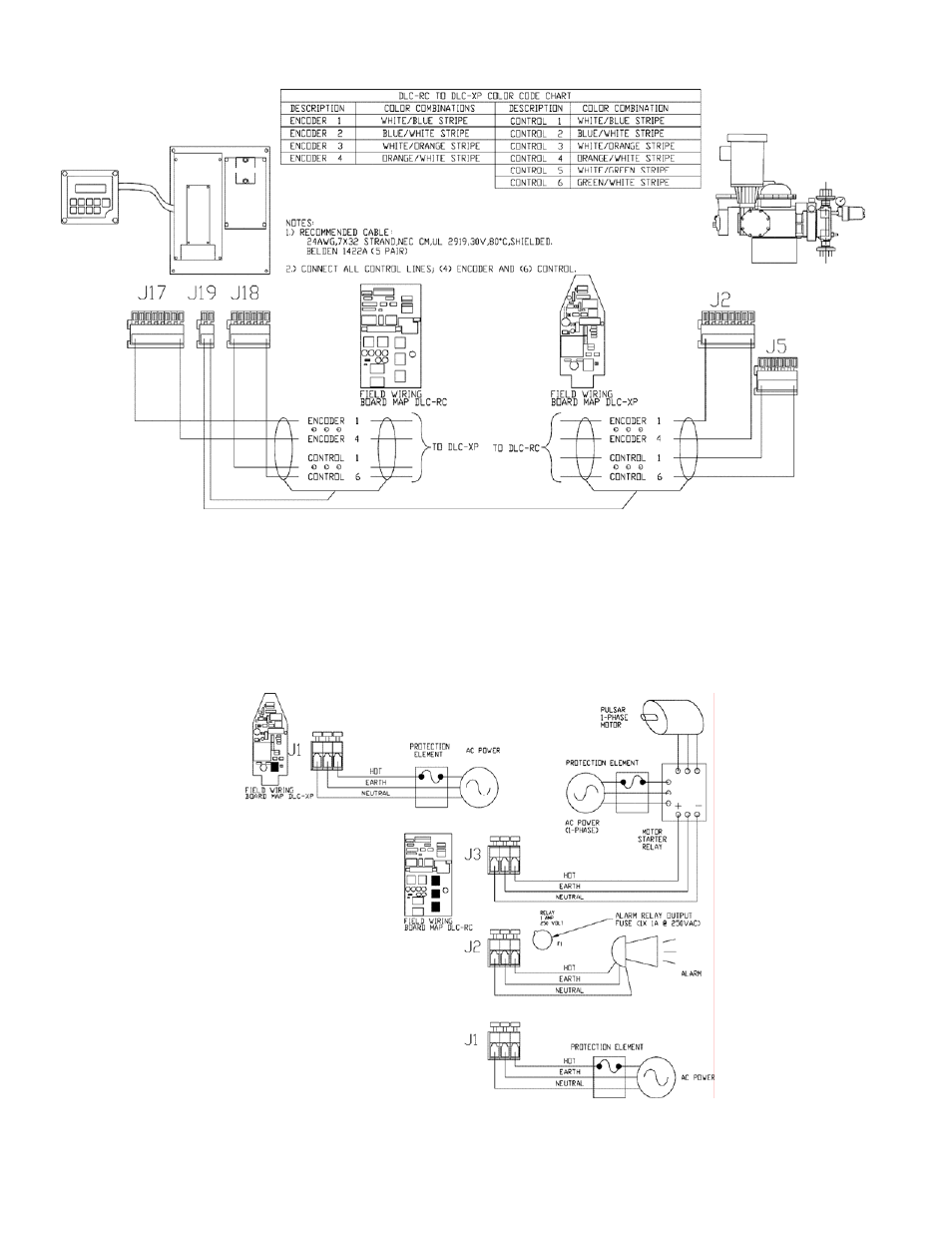

Figure 4. Control Connections
5.5 High Voltage Connections
There is only one high voltage connection to be made on the DLC-XP: the supply power (J1). On the
DLC-RC, there are only three high voltage connections: the supply power (J1), the PULSAR motor
starter relay load (J3), and the Alarm Relay Load (J2). Only the supply power and PULSAR motor
starter relay load connections are required. Refer to Figure 5 for connection location.
Figure 5. High Voltage Connections
