Allied Telesis AT-S20 - Manual (Page 94)

Setting Security/Source Address Table Options
6-20
6HWWLQJ#6HFXULW\
7KUHVKROG
1. Select < Threshold:intruder protection when port
MAC address limit exceeded>
When enabled, this feature displays in bold print on your screen.
6HWWLQJ#1XPEHU
RI#0$&#$GGUHVV
Select < Config MAC address limit per port> The
following screen displays.

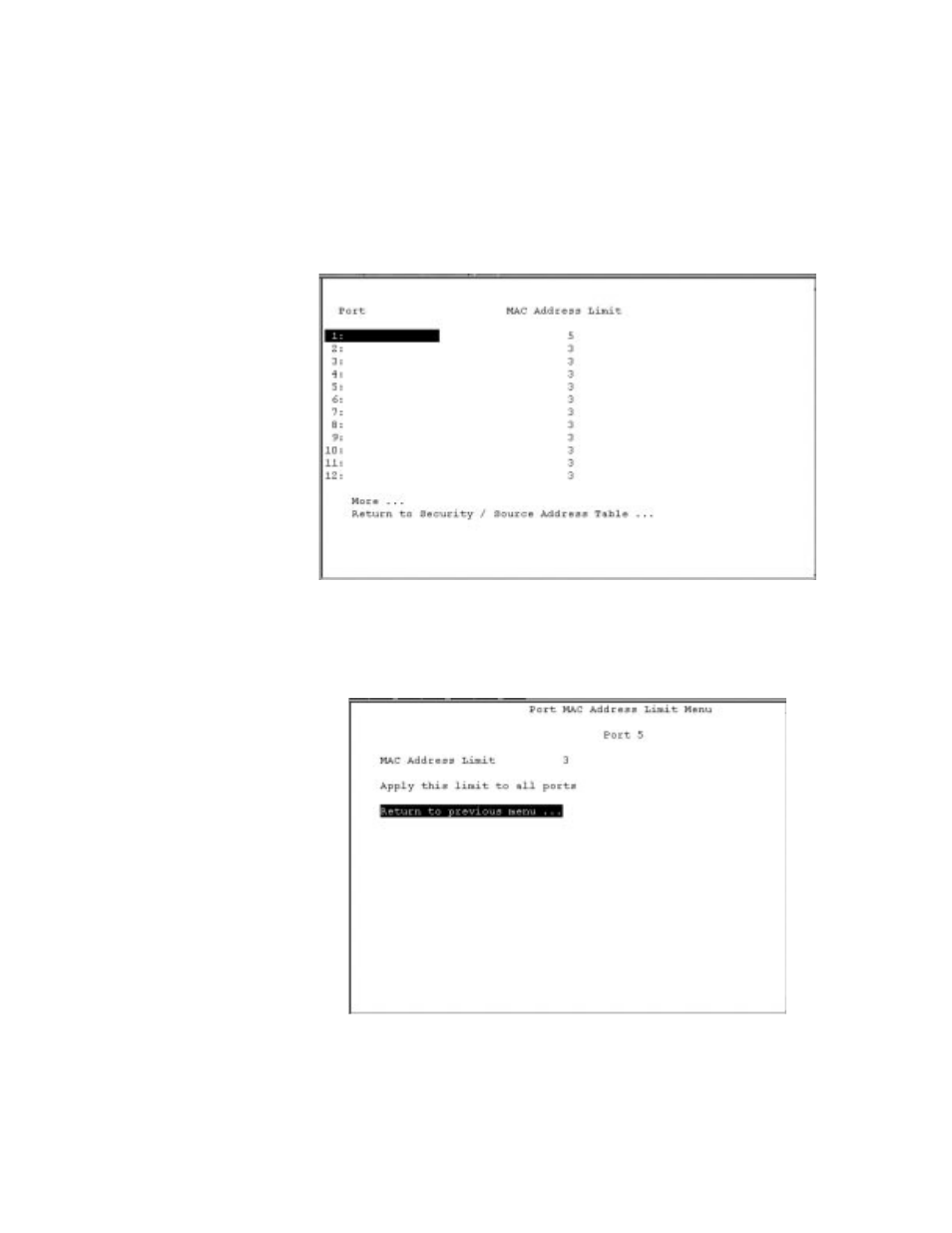

Figure 6-20 Five MAC Addresses Assigned to Port 1
2. Select the specified port and enter the maximum number of MAC
addresses assigned to that port, for example three MAC addresses
for Port 5.
Figure 6-21 MAC Address Limit on Port 5
