AT-S20 User’s Guide
5-7
$GGLQJ#D#1HZ
9/$1
0HQX1
Virtual LANs>
new table entry>
1. Select Add new table entry> .
The following screen displays.

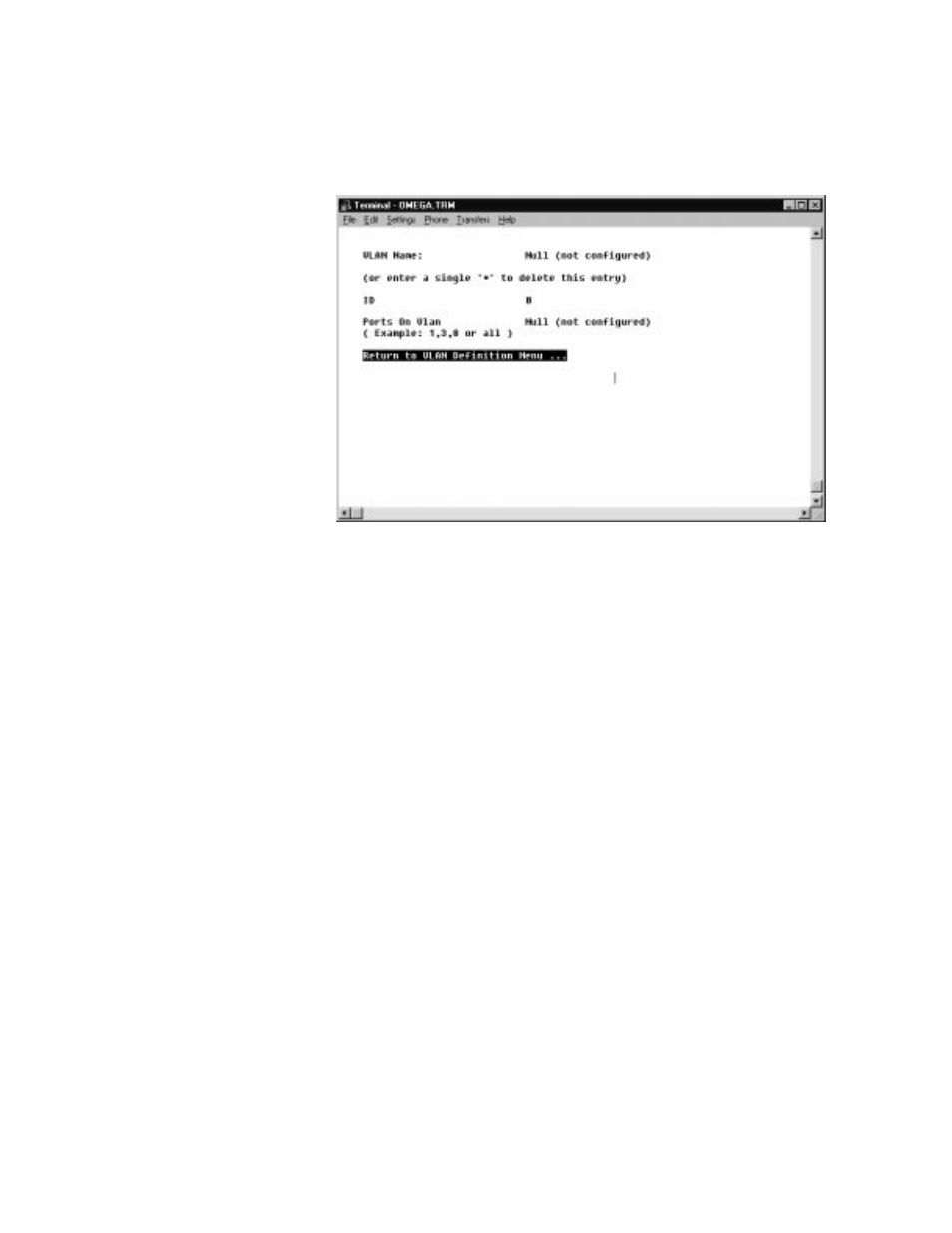

Figure 5-6 Adding New VLAN Descriptors
2. Enter the following VLAN descriptors:
❑ New VLAN name (in this example Lindsey)
When you enter a new VLAN name, for example Lindsey, the
ID number automatically increments to the next VLAN ID
number, for example from 1 to 2. See following screen.
❑ VLAN ports (in this example 14, 15)
By default, the uplink ports are included in the VLAN ports. A
port can belong to any number of VLANs, maximum of 32
VLANs.
