Figure32 port link, status, and mode states – Allied Telesis AT-S20 User Manual
Page 30
Navigating Around the Switch
3-4
If you click any other area other than a specified port on the switch’s
front panel, the following table displays.

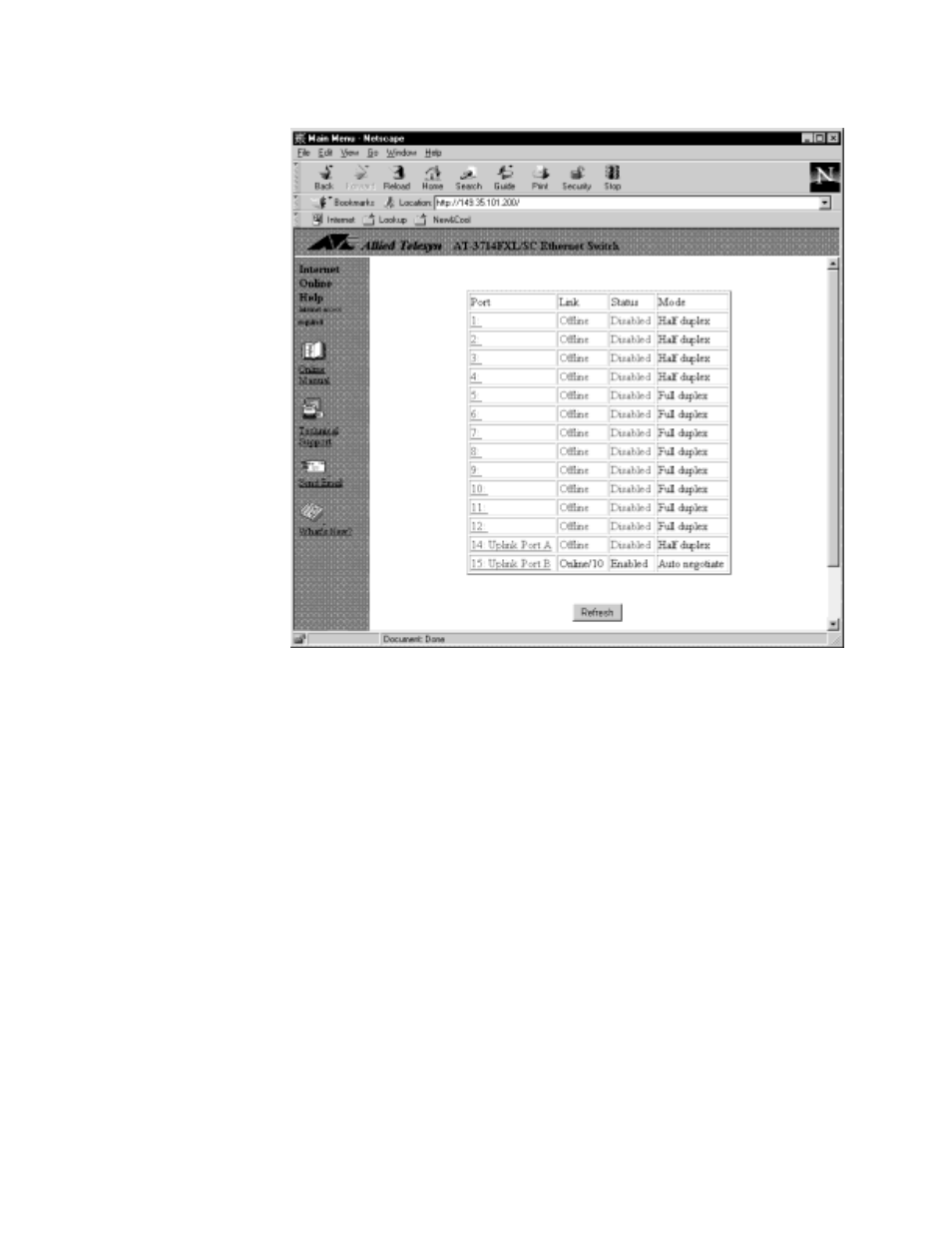

Figure 3-2 Port Link, Status, and Mode States
You also can click on the Omega Main Menu.
You are now ready to configure your switch. See Chapter 4,
Configuration and Administration.
