Navigating around the switch, Figure31 port 15 settings, Navigating around the switch -3 – Allied Telesis AT-S20 User Manual
Page 29: 1dyljdwlqj#$urxqg#wkh#6zlwfk
AT-S20 User’s Guide
3-3
1DYLJDWLQJ#$URXQG#WKH#6ZLWFK
The switch’s front panel is active. You can click anywhere on the
switch and a menu or table displays. For example, if you click Port 15,
that port’s settings appear, as shown in Figure 3-1.

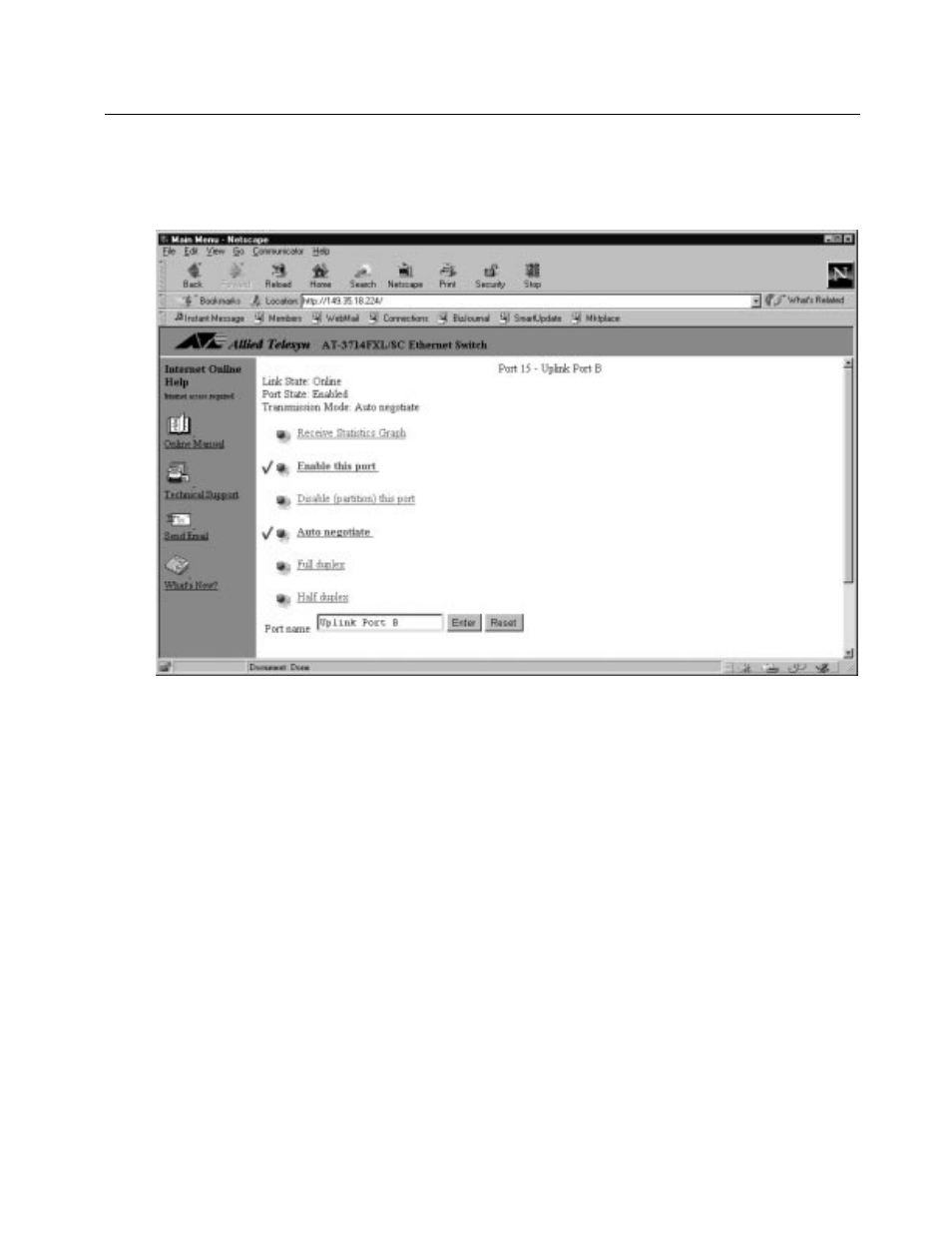

Figure 3-1 Port 15 Settings
