AT-S20 User’s Guide
6-29
The graph shows the types of frames received by the switch
over a period since the switch’s last reset or since the counters
have been reset to zero. Table 6-3 lists and defines the types of
received frames.
2. Select RMON Statistics from the Receive Statistics Graph to
display the RMON Statistics Graph.
3. Select a port, for example Port 1 . Figure 6-28 displays the RMON
Statistics for Port 1.

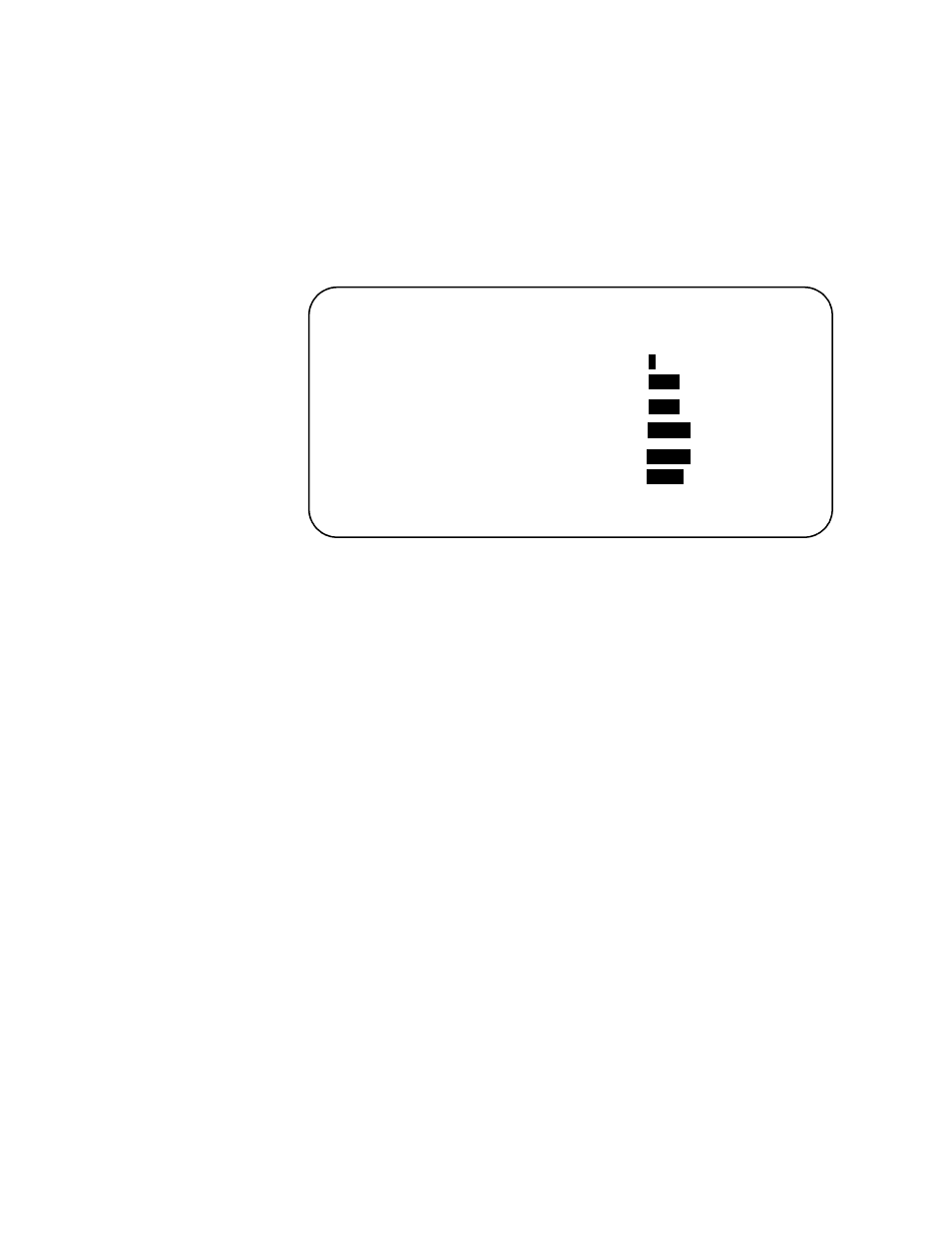

Figure 6-27 RMON Statistics for Port 1
Accounting
Port 1
RMON Statistics Graph
64 Byte Frames: 1350
65-127 Byte Frames: 7444
128-255 Byte Frames: 7444
256-511 Byte Frames: 9787
512-1023 Byte Frames: 9787
1024-1518 Byte Frames: 7456
Zero all statistics counters on the entire system
Return to Port Statistics Graph ...
