Configuring Device Security
Configuring Server Based Authentication
Page 56

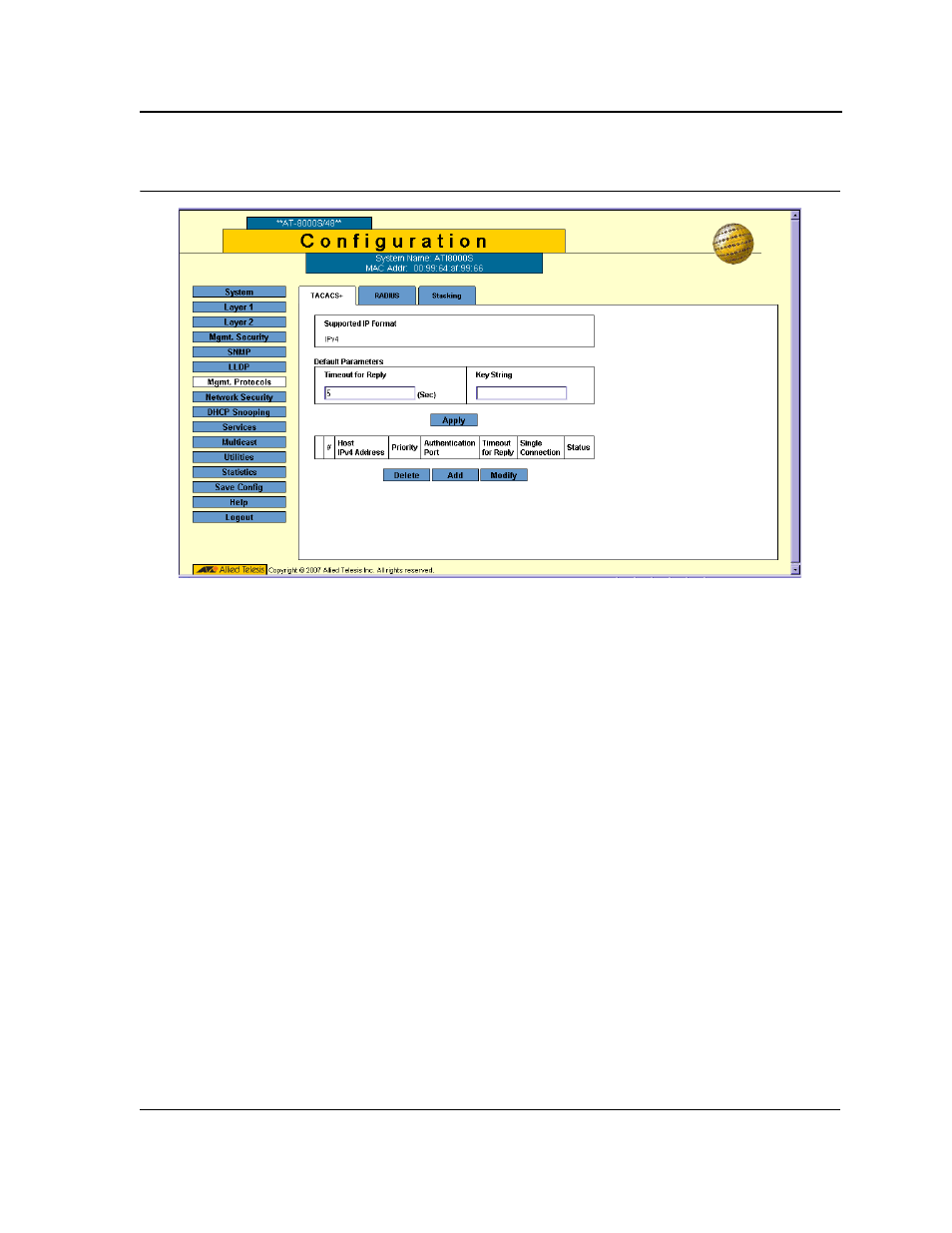

Figure 27: TACACS+ Page
The TACACS+ Page contains the following fields:
• Supported IP Format — Indicates that IPv4 is supported.
• Timeout for Reply — Defines the time interval, in seconds, that passes before the connection between the
device and the TACACS+ server times out. The field range is 1-30 seconds and the default is 5 seconds.
• Key String — Defines the default key string.
• Server # — Displays the server number.
• Host IPv4 Address — Displays the TACACS+ server IPv4 address.
• Priority — Defines the order in which the TACACS+ servers are used. The field range is 0-65535. The
default is 0.
• Authentication Port — Identifies the authentication port. The device communicates with the TACACS+
server through the authentication port. The default is 49.
• Timeout for Reply — Defines the time interval in seconds that passes before the connection between the
device and the TACACS+ server times out. The field range is 1-60 seconds and the default is 10 seconds.
• Single Connection — Maintains a single open connection between the device and the TACACS+ server.
The possible field values are:
– Checked — Enables a single connection.
– Unchecked — Disables a single connection.
• Status — Indicates the connection status between the device and the TACACS+ server. The possible field
values are:
– Connected — Indicates there is currently a connection between the device and the TACACS+ server.
– Not Connected — Indicates there is not currently a connection between the device and the TACACS+
server.
2. Click Add. The Add TACACS+ Page opens.
