Viewing Statistics
Managing RMON Statistics
Page 225
Not approved by Document Control. For review only.
Configuring RMON Events
The RMON Events Page contains fields for defining, modifying and viewing RMON events statistics.
To add an RMON event:
1. Click Statistics > RMON Events. The RMON Events Page opens:

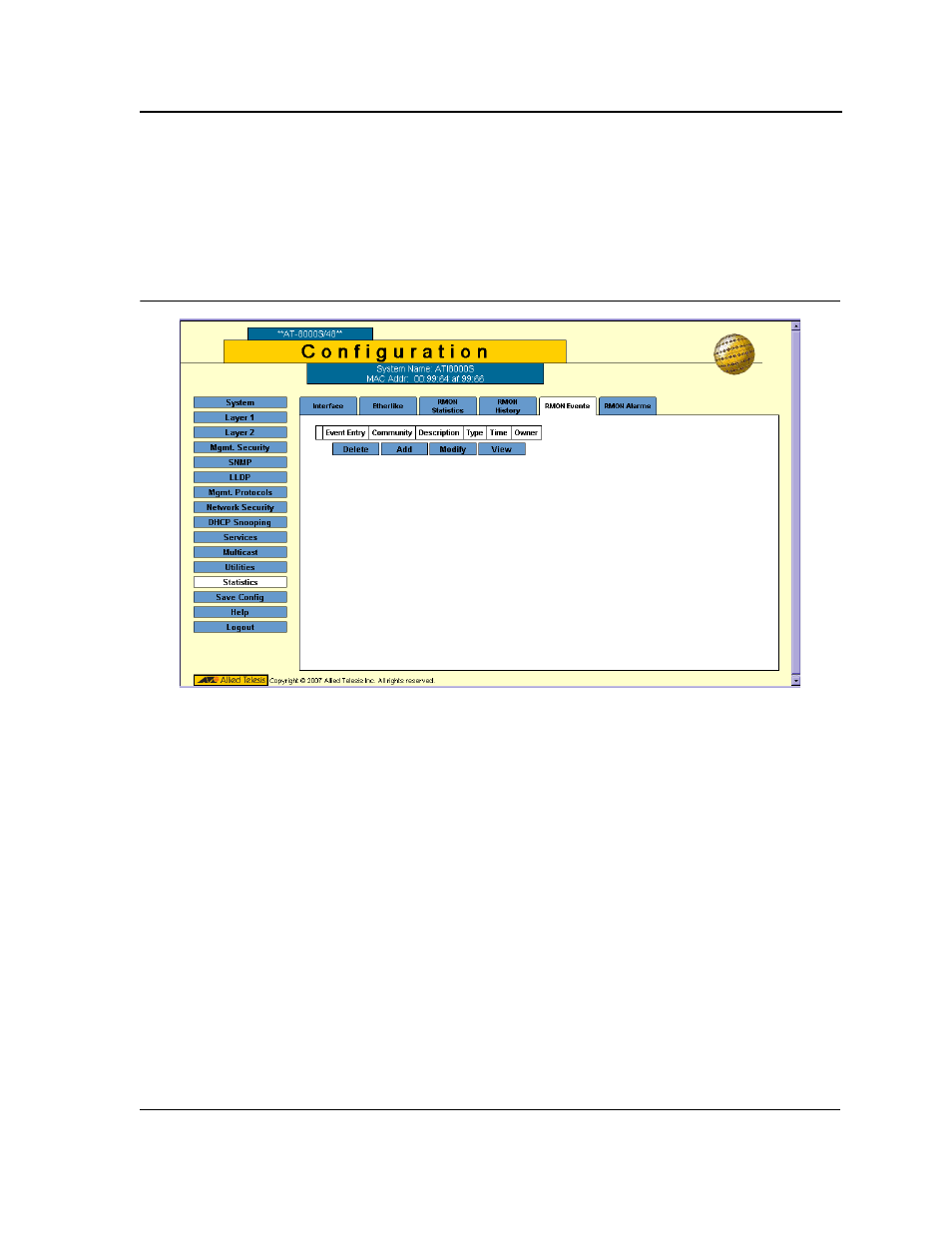

Figure 157:RMON Events Page
The RMON Events Page contains the following fields:
• Event Entry — Displays the event.
• Community — Displays the community to which the event belongs.
• Description — Displays the user-defined event description.
• Type — Describes the event type. Possible values are:
– Log — Indicates that the event is a log entry.
– Trap — Indicates that the event is a trap.
– Log and Trap — Indicates that the event is both a log entry and a trap.
– None — Indicates that no event occurred.
• Time — Displays the time that the event occurred.
• Owner — Displays the device or user that defined the event.
2. Click Add. The Add RMON Events Page opens:
