Configuring SNMP
Page 176
2. Click Add. The Add Notify Page opens:

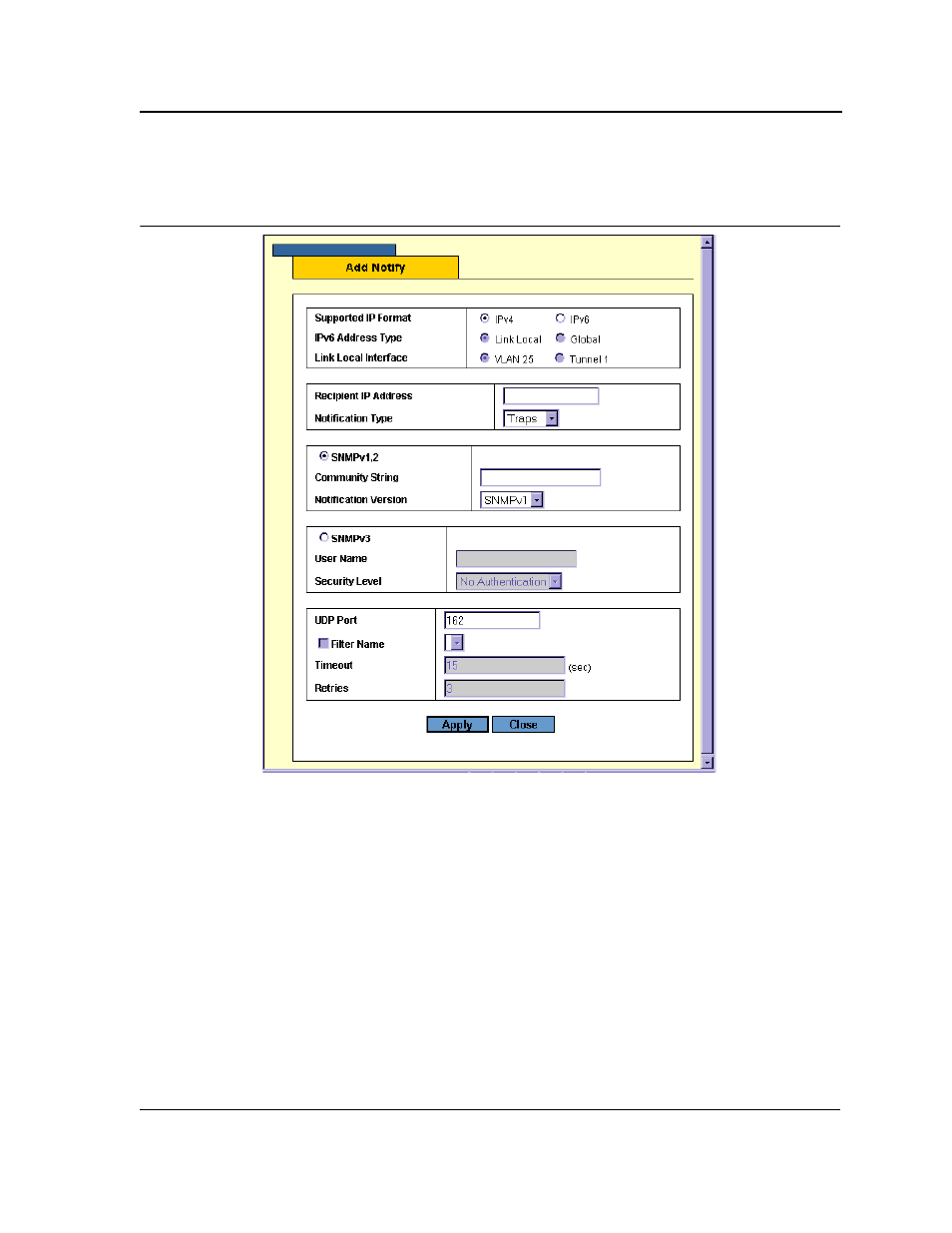

Figure 121:Add Notify Page
In addition to the SNMP Notify Page, the Add Notify Page contains the following fields:
• Supported IP Format — Indicates the type of IP addressing protocol supported. The possible values are:
– IPv4
– IPv6
• IPv6 Address Type — Defines the type of configurable static IPv6 IP address for an interface. The possible
values are:
– Link Local — Defines a Link Local address; non routable and can be used for communication on the
same network only. A Link Local address has a prefix of 'FE80'.
– Global — Defines a globally unique IPv6 address; visible and reachable from different subnets.
• Link Local Interface — Indicates the type of Link Local interface. The possible values are:
– VLAN 25
– Tunnel 1
3. Define the fields.
