Configuring Interfaces
Defining MAC Based Groups
Page 128
To add a mapped group:
1. Click Layer 2 > MAC Based Groups. The MAC Based Groups Page opens:
2. Below the Mapping Group table, click the Add button. The Add MAC Address Group Mappings Page opens:

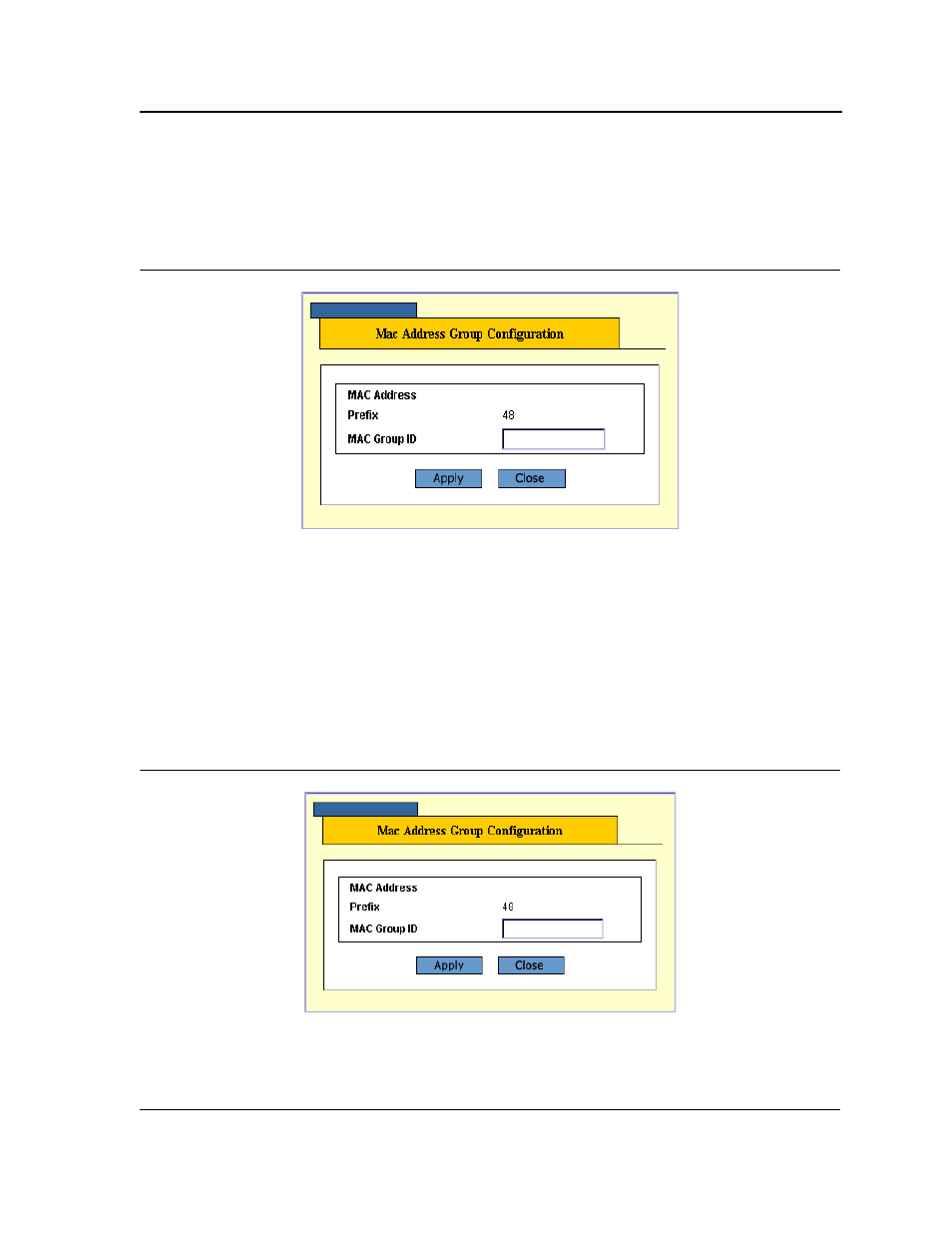

Figure 83: Add MAC Address Group Mappings Page
In addition to the fields in the MAC Based Groups Page, the Add MAC Address Group Mappings Page contains
the following additional fields:
• Group Type – Indicates the VLAN Group to which interfaces are mapped. The possible field value is:
– MAC-based – Indicates that interfaces are mapped to MAC based VLAN groups.
3. Select a VLAN to map with the group (VLAN ID).
4. Click Apply. The mapping group is added, and the device is updated.
To modify mapping group settings:
1. Click Layer 2 > MAC Based Groups. The MAC Based Groups Page opens:
2. Click Modify. The MAC Address Group Mappings Configuration Page opens.
Figure 84: MAC Address Group Mappings Configuration Page
3. Change the mapped VLAN (VLAN ID).
4. Click Apply. The mapping group is modified, and the device is updated.
