Configuring Spanning Tree
Configuring Classic Spanning Tree
Page 135
Defining STP Properties
The Spanning Tree Page contains parameters for enabling and configuring STP on the device.
To enable STP on the device:
1. Click Layer 2 > Spanning Tree. The Spanning Tree Page opens:

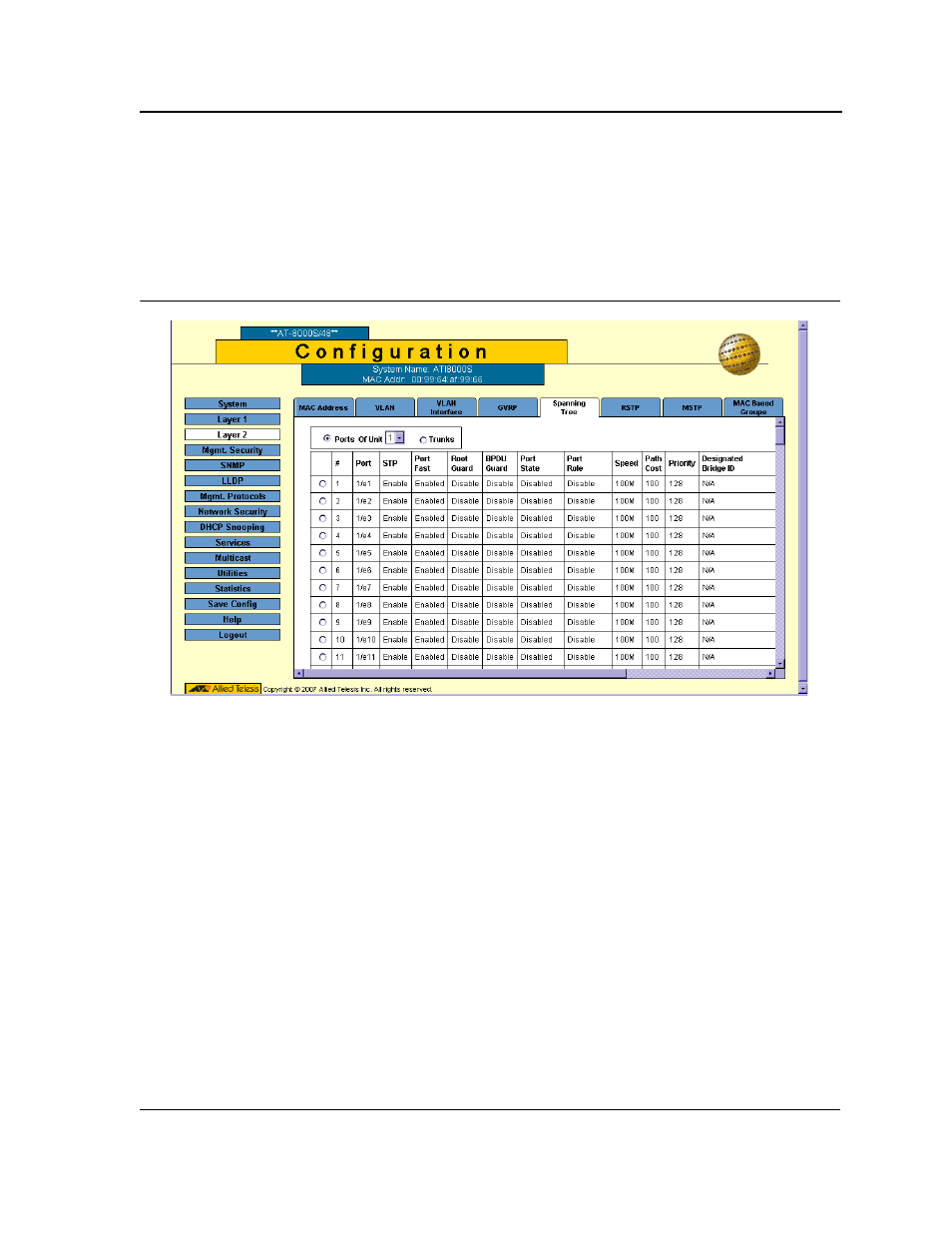

Figure 89: Spanning Tree Page
The STP General section of the Spanning Tree Page contains the following fields:
• Spanning Tree State — Indicates whether STP is enabled on the device. The possible field values are:
– Enable — Enables STP on the device.
– Disable — Disables STP on the device.
• STP Operation Mode — Specifies the STP mode that is enabled on the device.
The possible field values are:
– Classic STP — Enables Classic STP on the device.
– Rapid STP — Enables Rapid STP on the device.
– Multiple STP — Enables Multiple STP on the device.
• BPDU Handling — Determines how BPDU packets are managed when STP is disabled on the port or
device. BPDUs are used to transmit spanning tree information. The possible field values are:
– Filtering — Filters BPDU packets when spanning tree is disabled on an interface.
– Flooding — Floods BPDU packets when spanning tree is disabled on an interface. This is the default
value.
