Configuring LLDP
Page 183
• State — Indicates the LLDP state on the port. The possible field values are:
– Tx Only — Enables transmitting LLDP packets only.
– Rx Only — Enables receiving LLDP packets only.
– Tx & Rx — Enables transmitting and receiving LLDP packets. This is the default value.
– Disable — Indicates that LLDP is disabled on the port.
• Optional TLVs — Contains a list of optional TLVs advertised by the port. For the complete list, see the
Available TLVs field.
• Management IP Address — Indicates the management IP address that is advertised from the interface.
Ports can only advertise one address, and only static IP addresses can be advertised. However, if auto
advertise is selected, then the software selects an available static and dynamic IP addresses. The possible
field values are:
– Stop Advertising — Indicates the IP address is not advertised.
– Auto Advertise - Indicates that the software automatically selects a management IP address to which to
advertise. All addresses are advertised (both Static and DHCP).
2. Click Modify. The Modify Port Settings Page opens:

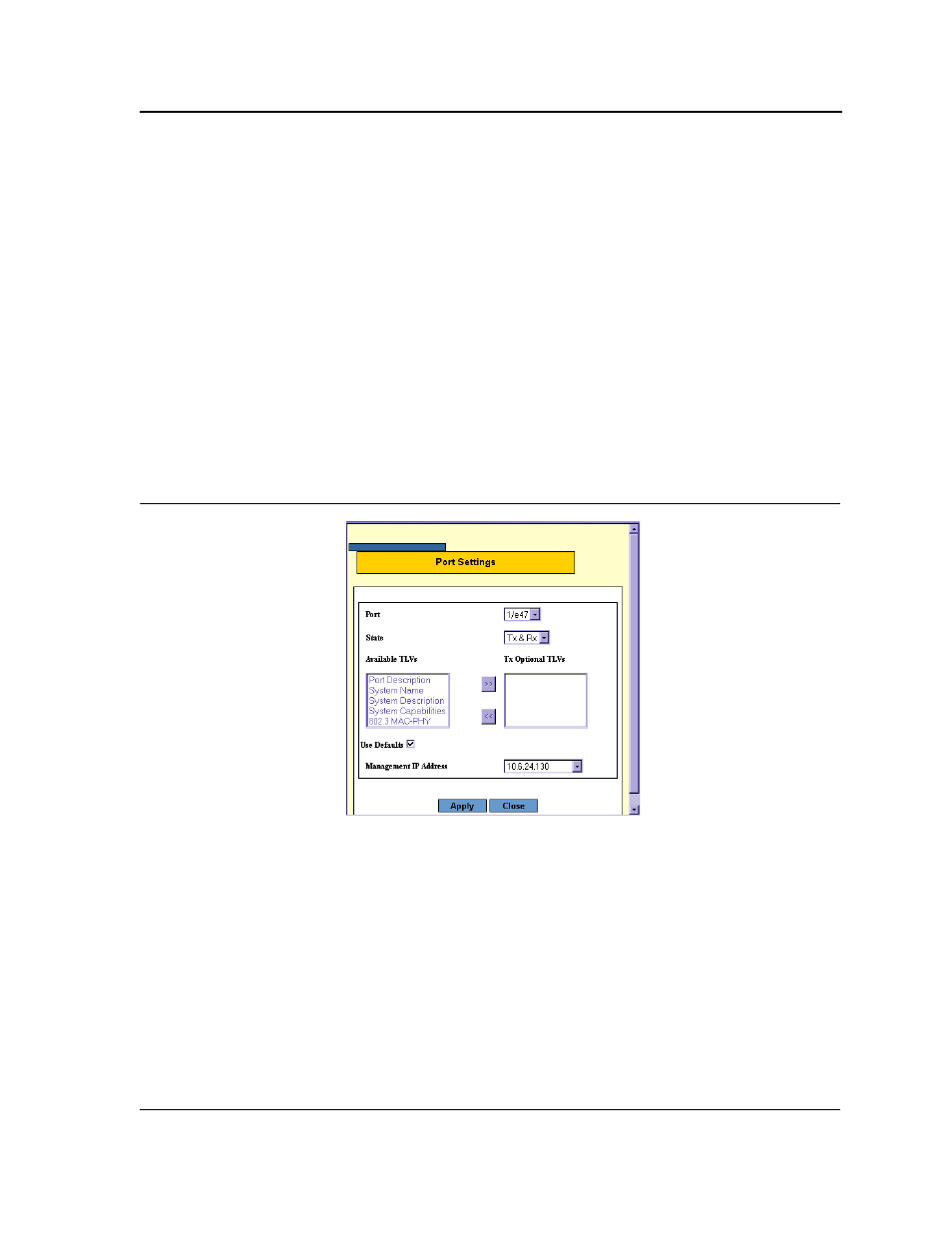

Figure 127:Modify Port Settings Page
3. Select the port for which the LLDP parameters are defined in the Port drop-down box.
4. Define whether LLDP are only transmitted, only received or both transmitted and received on the port in the
State field.
Or
Select Disable to not transmit or receive LLDP packets.
5. Select the TLV to be transmitted by moving the TLVs from the Available TLVs list to the Tx Optional TLVs
list.
Or
Select the Use Default checkbox to use the factory default settings.
6. Select the Management IP state in the Management IP Address drop-down box.
7. Click Apply. The Port LLDP settings are defined, and the device is updated.
