Viewing Statistics
Viewing Device Statistics
Page 217
Not approved by Document Control. For review only.
Viewing Etherlike Statistics
The Etherlike Statistics Page displays interface statistics.
To view Etherlike statistics:
1. Click Statistics > Etherlike. The Etherlike Statistics Page page opens:

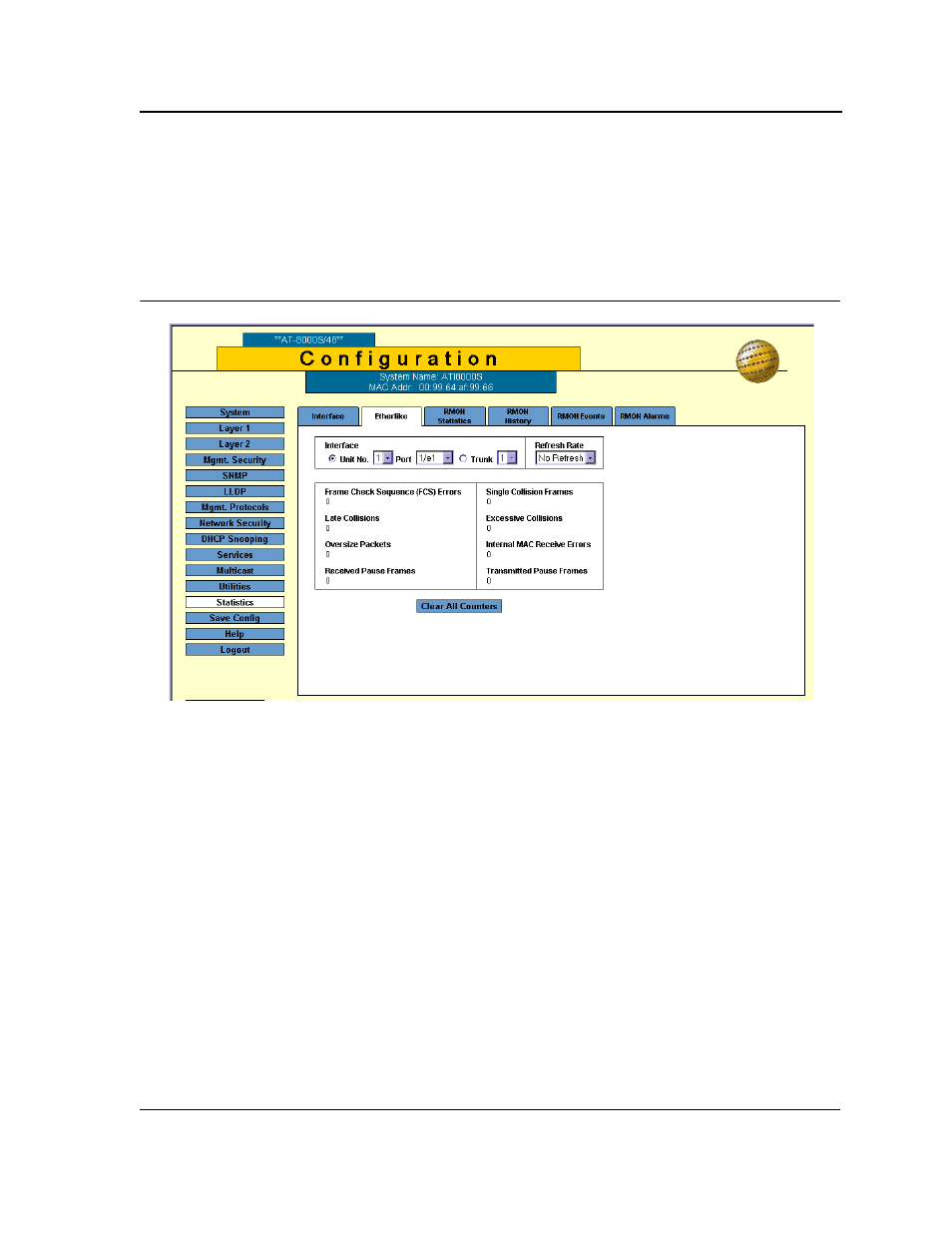

Figure 151:Etherlike Statistics Page
The Etherlike Statistics Page contains the following fields:
• Select the interfaces displayed in the table.
– Port — Specifies the port for which the Etherlike statistics are displayed.
– Trunk — Defines the specific trunk for which the Etherlike statistics are displayed.
• Refresh Rate — Defines the frequency of the interface statistics updates. The possible field values are:
– 15 Sec — Indicates that the Etherlike statistics are refreshed every 15 seconds.
– 30 Sec — Indicates that the Etherlike statistics are refreshed every 30 seconds.
– 60 Sec — Indicates that the Etherlike statistics are refreshed every 60 seconds.
– No Refresh — Indicates that the Etherlike statistics are not refreshed.
• Frame Check Sequence (FCS) Errors — Displays the number of FCS errors received on the selected
interface.
• Single Collision Frames — Displays the number of single collision frames received on the selected
interface.
• Late Collisions — Displays the number of late collision frames received on the selected interface.
• Excessive Collisions — Displays the number of excessive collisions received on the selected interface.
• Oversize Packets — Displays the number of oversized packet errors on the selected interface.
