Chapter 4: Cabling the Network Ports
96

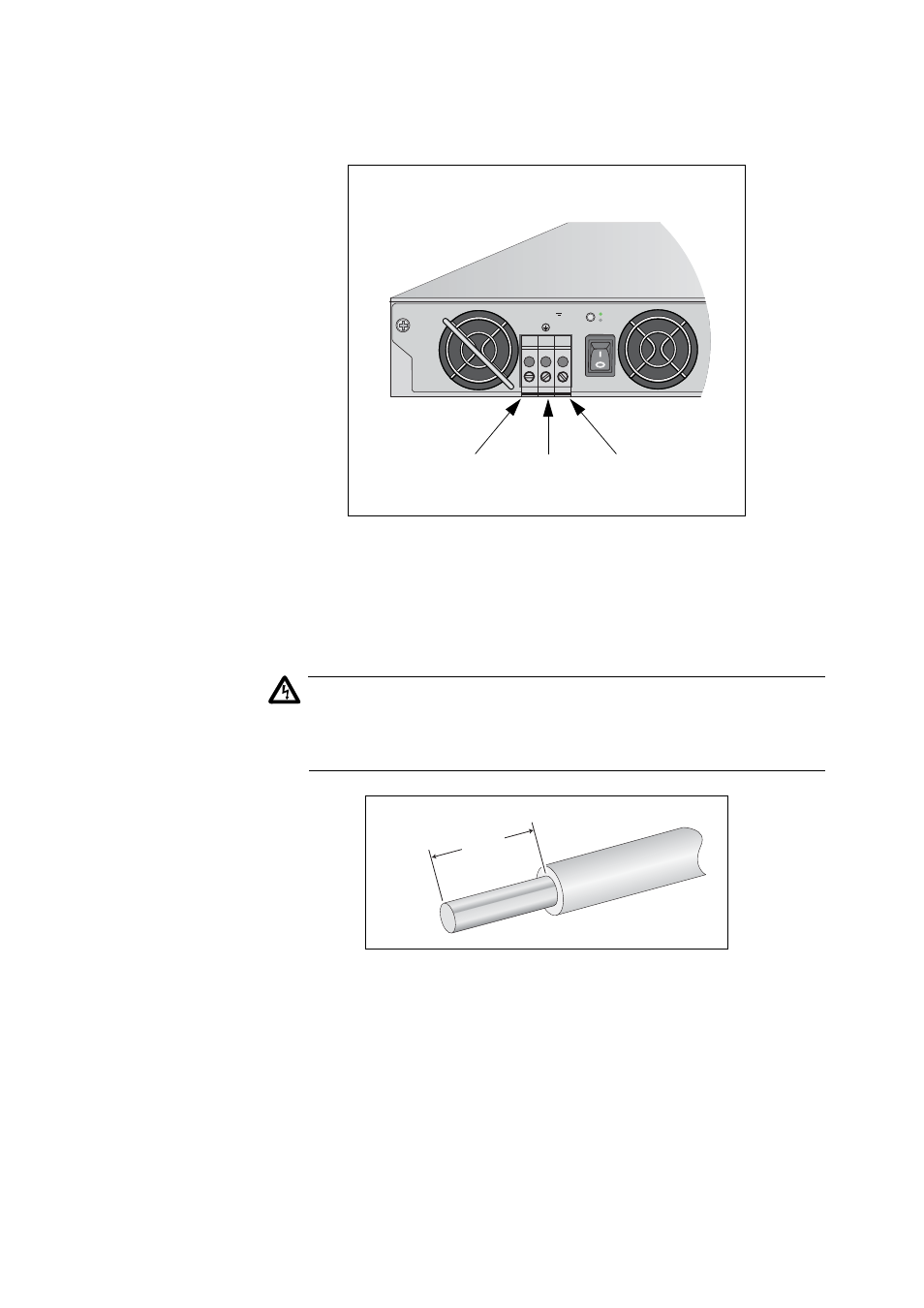

Figure 54. DC Terminal Block on the DC AT-PWR250 Power Supply
Module
4. With a 14-gauge wire-stripping tool, strip the three wires in the tray
cable coming from the DC input power source to 8mm ± 1mm (0.31 in.,
± 0.039 in.), as shown in Figure 55 on page 96.
Warning
Do not strip more than the recommended amount of wire. Stripping
more than the recommended amount can create a safety hazard by
leaving exposed wire on the terminal block after installation. E10
Figure 55. Stripped Wire
5. Insert the power supply ground wire into the middle connector of the
DC terminal and tighten the connection with a flathead screwdriver, as
shown in Figure 56 on page 97.
2205
A
A
A
T
-PWR250
DC OUT
FAULT
+ -
6A
40-60VDC
FOR CENTRALIZED DC POWER C ONNECTION,
INST
ALL ONL
Y IN A
ON
OFF
+48 VDC Positive Ground -48 VDC Negative
Terminal Terminal Terminal
8mm ±1mm
(0.31in. ±0.039in.)
