x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide
87

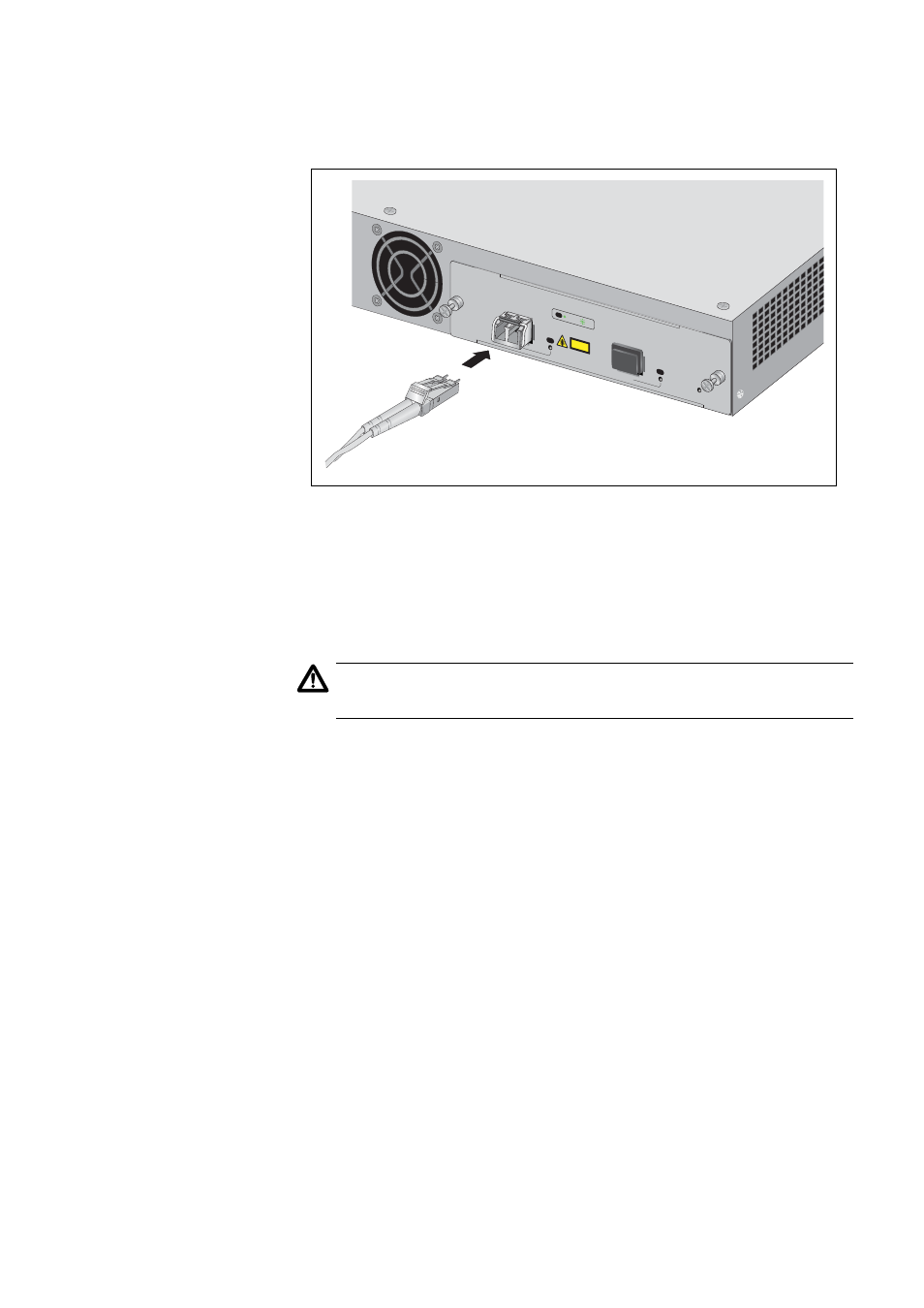

Figure 51. Connecting a Fiber Optic Cable to the SFP+ Transceiver
8. Connect the other end of the stacking cable to a Stack Port on the
stacking module in the next switch of the stack. A stacking cable must
crossover and connect to a different port on the next stacking module.
Stack Port 1 on a module must connect to Stack Port 2 on the next
module.
Caution
Do not connect two stack Port 1 ports or stack Port 2 ports together.
RP S
READY
S TACKIN
G
risk of
rvicing
AT-LX44CPUCVR AT-x6EM/X
S 2
1
2 L/A
L/A
POWER
S FP+
S FP+ CLASS 1 LASER P RODUCT
10G LIN K ACT
L/A
