Chapter 3: Installing the Hardware
82

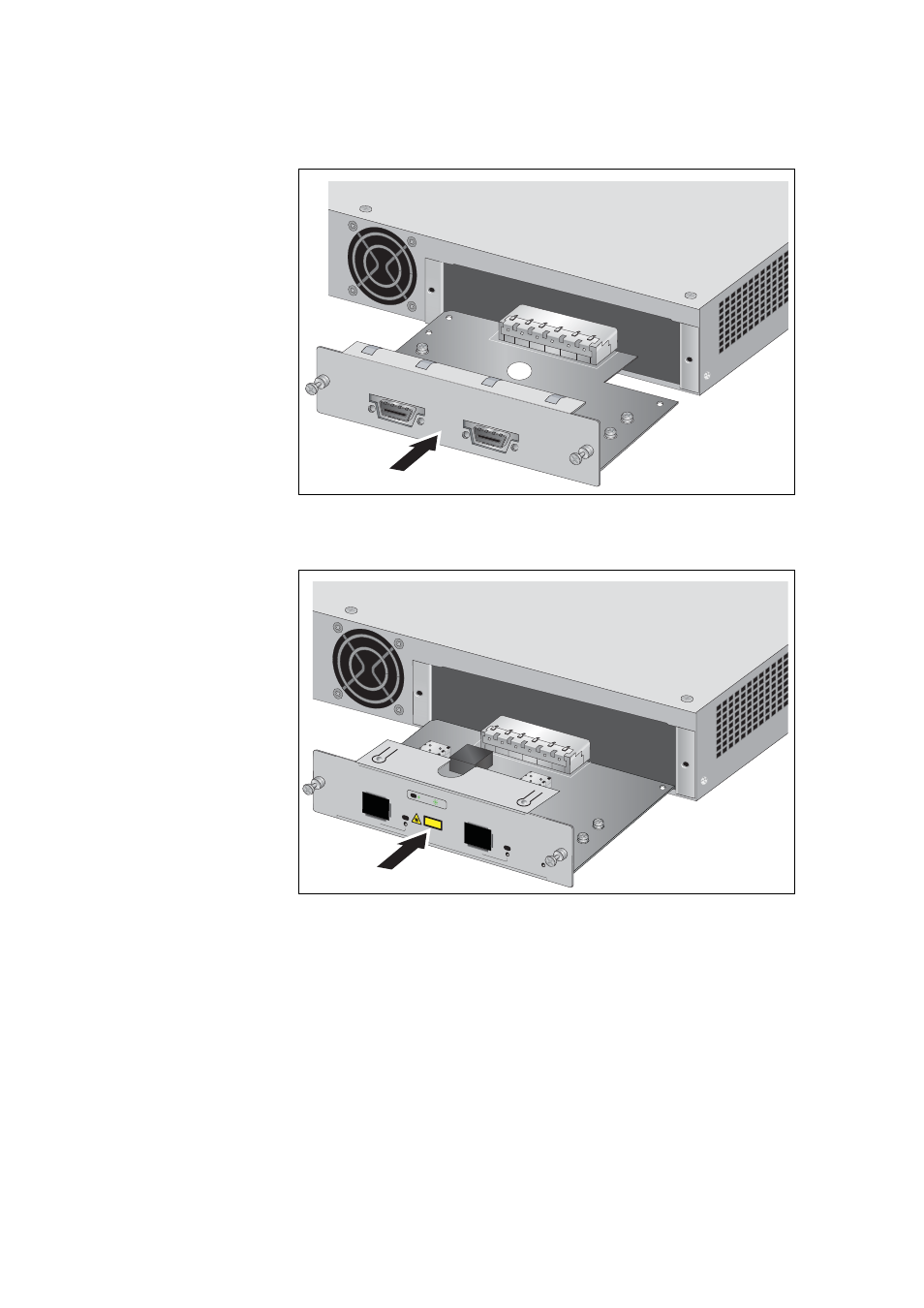

Figure 42. Installing the AT-StackXG Stacking Module
Figure 43. Installing the AT-x6EM/XS2 Stacking Module
4. Secure either the AT-StackXG or AT-x6EM/XS2 stacking module to
the chassis by tightening the two captive screws with a cross-head
screwdriver, as shown in Figure 44 and Figure 45.
RP S
READY
S TACKING
risk of
rvicing
AT-LX44CPUCV
R
AT-StackXG
Stack Po
rt 1
Stack Po
rt 2
RP S READY
S TACKING
risk of
rvicing
AT-LX44CPUCV
R
AT-x6EM/X
S 2
1
2 L/A
L/A
W PO
S FP+
S FP+ CLASS 1 LASER P RODUC T
10G LIN K ACT
L/A
