Chapter 3: Installing the Hardware
86
5. Verify that the handle on the SFP+ transceiver is in the upright
position, as shown in Figure 49, to prevent inadvertently removing the
transceiver.

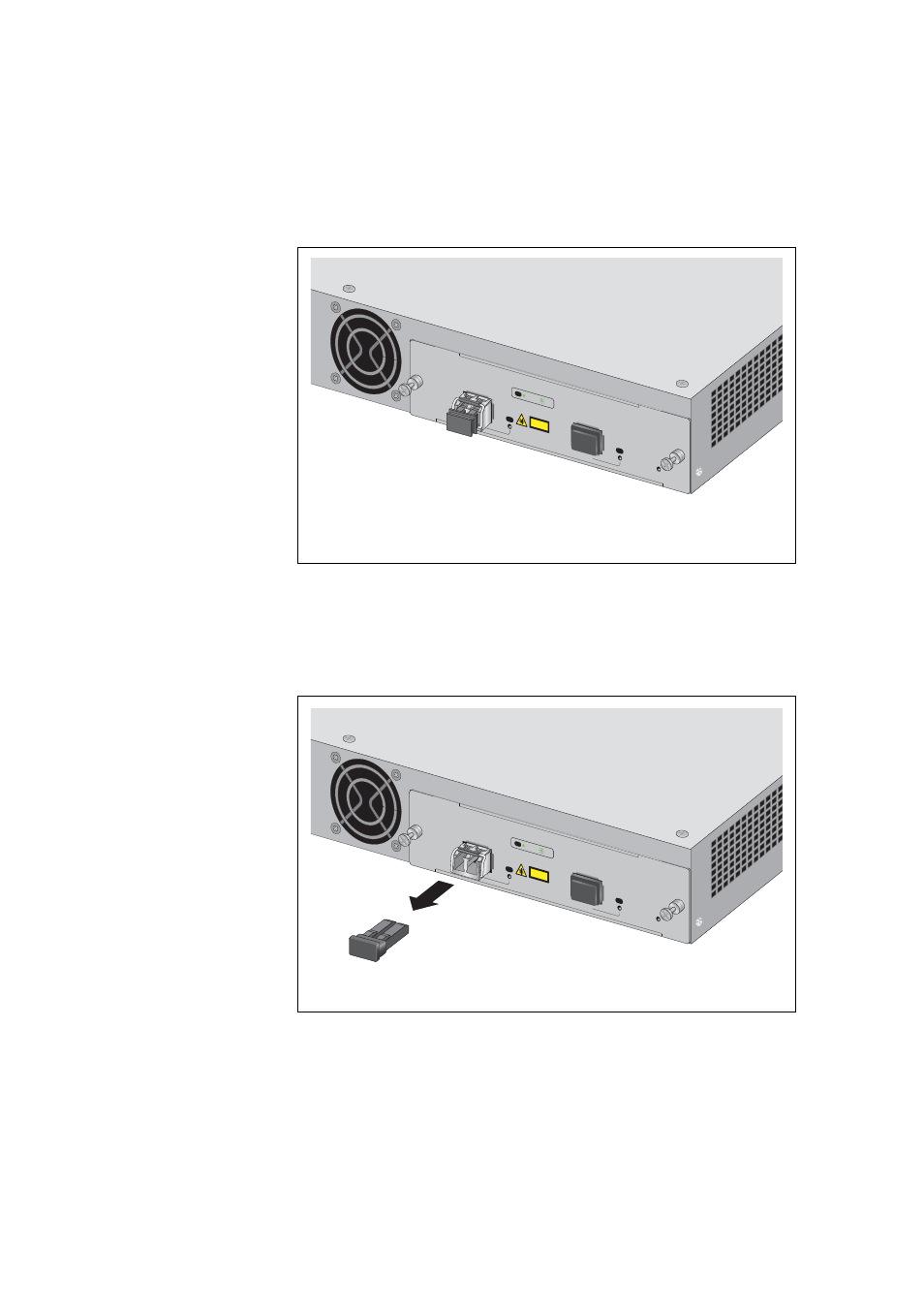

Figure 49. Positioning the SFP+ Transceiver Locking Handle
6. Remove the dust plug from the SFP+ transceiver, as shown in
Figure 50.
Figure 50. Removing the Dust Plug from an SFP+ Transceiver
7. Connect a cable to the SFP+ transceiver, as shown in Figure 51. For
SFP+ optical and cabling specifications, consult the documentation
shipped with the module.
RP S READY
S TACKIN
G
risk of
rvicing
AT-LX44CPUCVR AT-x6EM
/X S 2
1
2 L/A
L/A
POWER
S FP+
S FP+ CLASS 1 LASER P RODUCT
10G LINK
ACT
L/A
RP S
READY
S TACKIN
G
risk of
rvicing
AT-LX44
CPUCVR
AT-x6EM/X
S 2
1
2 L/A
L/A
POWER
S FP+
S FP+ CLASS 1 LASER P RODUCT
10G LINK
ACT
L/A
