x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide

53

AC Power Connector

The x610 switches have a single AC power supply socket on the rear

panel, which has autoswitch AC inputs. To power the switch on or off,

connect or disconnect the power cord.
For countries that require 100-125 VAC installations, the power cord plug

provided with the AT-PWR1200 power supply has a 20 Amp, 125 V NEMA

5-20P plug. This plug is only compatible with a NEMA 5-20R receptacle.

See Figure 28.

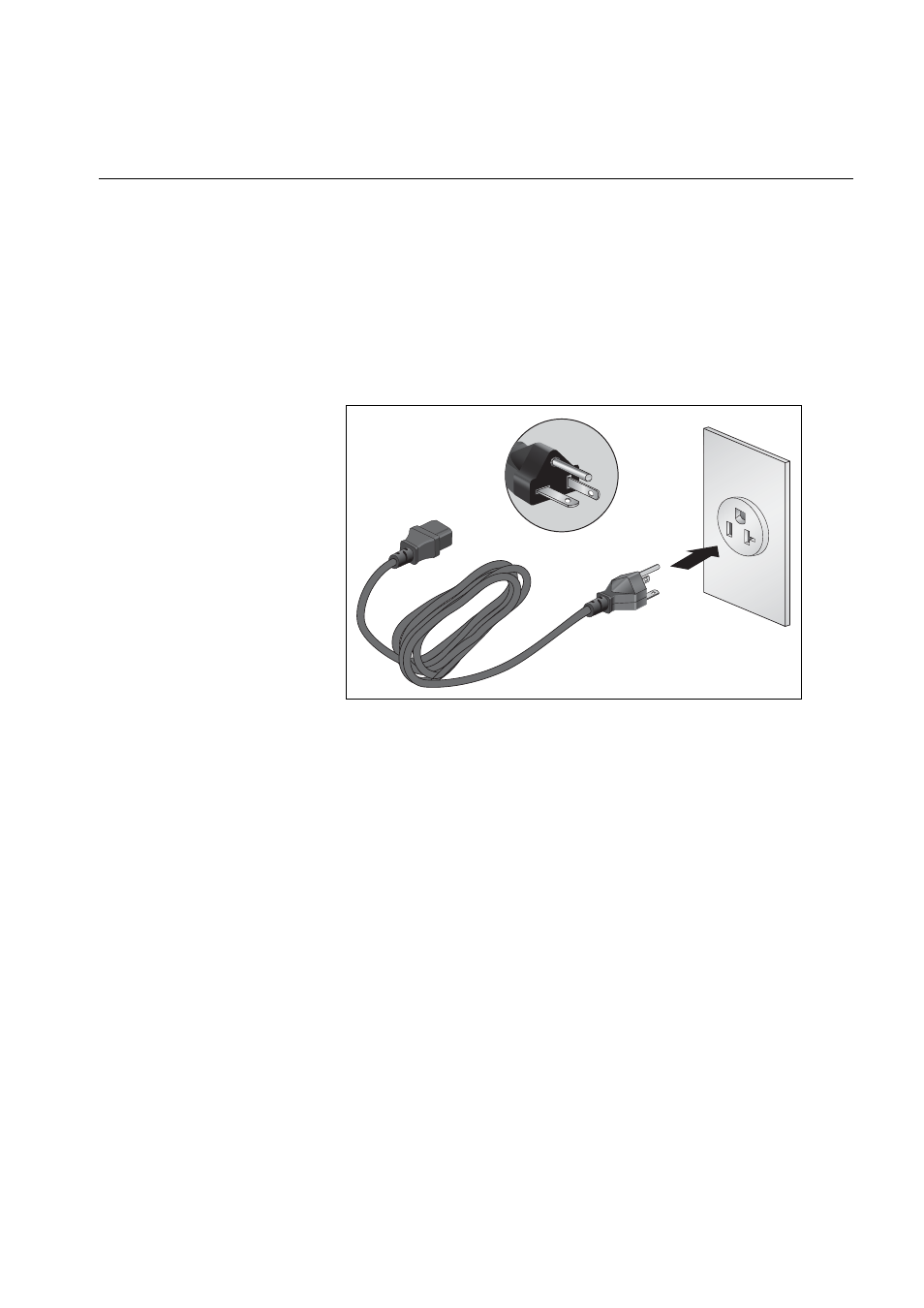

Figure 28. 100-125 VAC 125 V NEMA 5-20 Plug and Receptacle

Refer to “Technical Specifications” on page 113 for the input voltage

range.
