Power Supplies
The x610-24Ts-POE+, x610-24Ts/X-POE+, x610-48Ts-POE+ and
x610-48Ts/X-POE+ switches are supplied with a factory installed blank
panel on the power supply port. Either a 250W (AT-PWR250) power
supply (PSU), 800W (AT-PWR800) PSU, shown in Figure 22, or a 1200W
(AT-PWR1200) PSU, shown in Figure 23, can be installed in these
switches. Note that the AT-PWR250 supplies system power only to the
switch. Either an AT-PWR800 or an AT-PWR1200 is required to supply
power to the PoE+ ports in addition to system power to the switch.
Warning
Do not hot swap the power supply modules. Always disconnect the
AC cord before the power supply module is removed and ensure the
power supply module is correctly installed before reconnecting the
AC cord.
Note
When installed, the AT-PWR1200 Module extends 5.6 cm (2.2 in.)
from the back panel of the chassis.
The model of PSU that is installed determines the maximum number of
PoE+ ports that are supported on the switch. The maximum number of
PoE+ and PoE ports supported on the switch, depending on the model of
PSU installed, is described in “Power Capacity” on page 55.

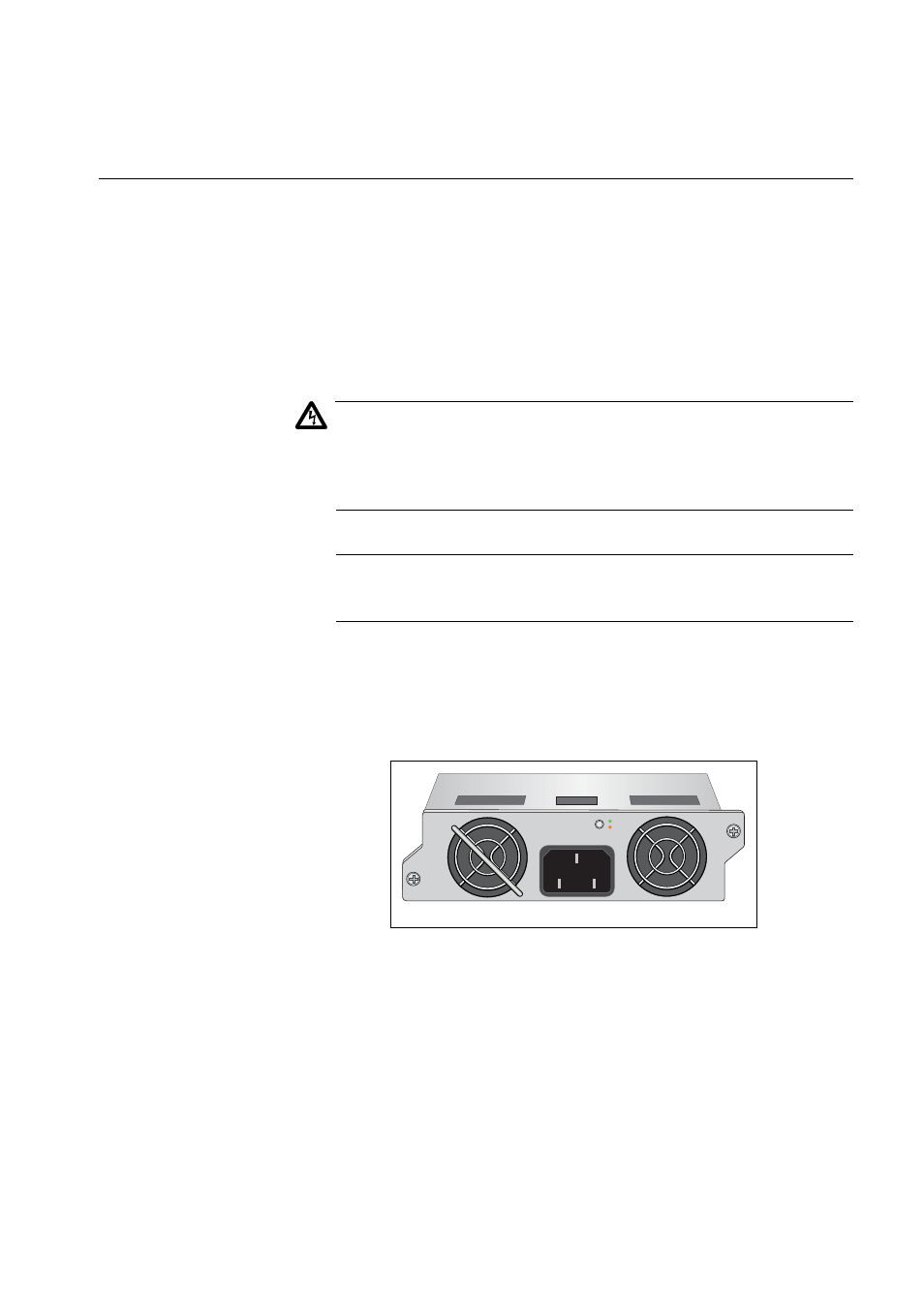

Figure 22. AT-PWR800 Power Supply
2186
A
T
-PWR800
100-240VAC~ 12A MAX
DC OUT
FAULT
