Appendix A: Technical Specifications
118
RJ-45 Style Serial Terminal Port Pinouts
Table 22 lists the pin signal definitions on the RJ-45 style serial terminal
port.
AT-RPS3000 21-pin Connector Pinouts
Figure 62 illustrates the pin layout of the RPS 21-pin D-combo port and
connector used to connect the AT-RPS3000 Redundant Power Supply to
x610 Series Switches.

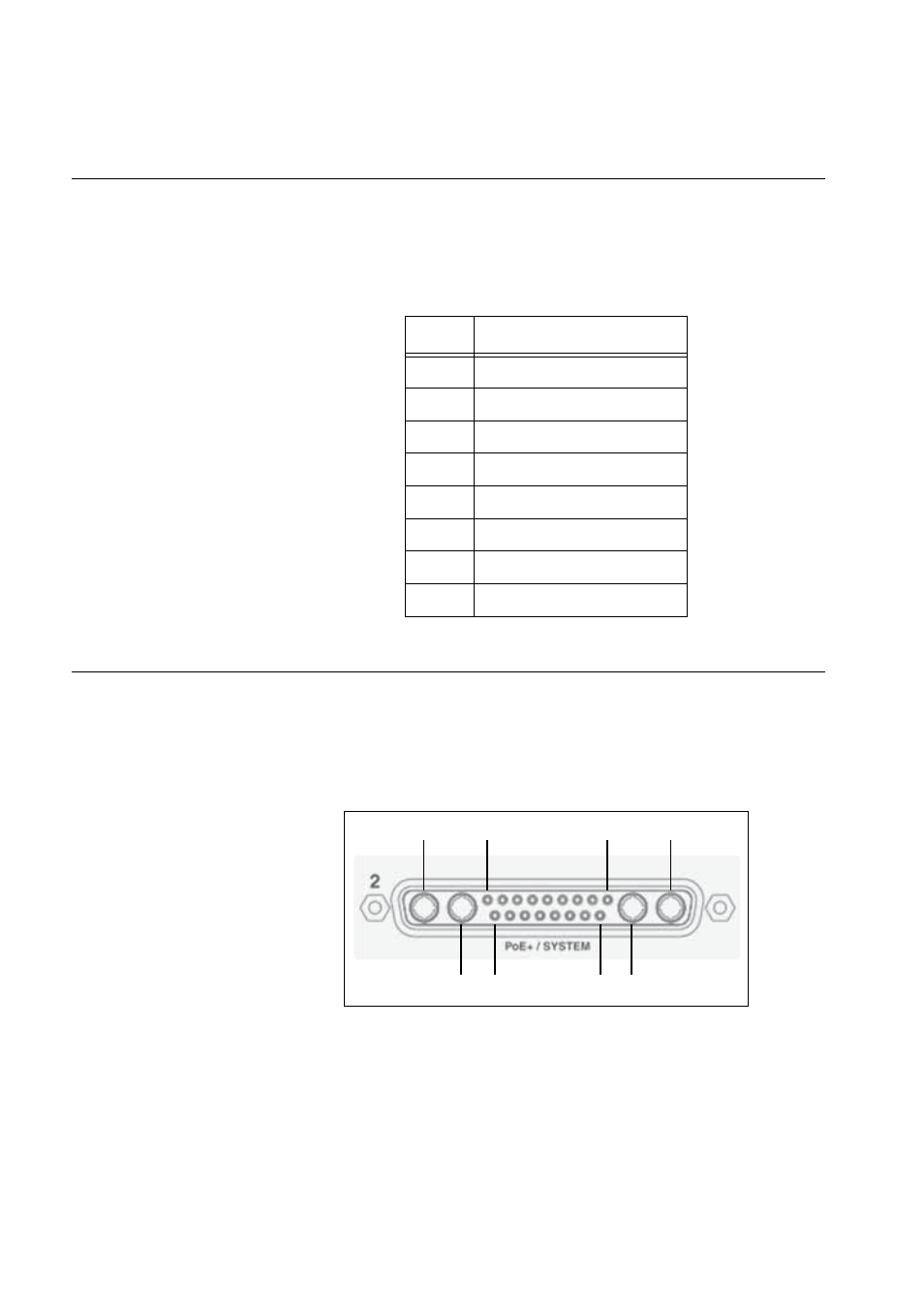

Figure 62. AT-RPS3000 21-Pin Connector Layout
Table 22. RJ-45 Style Serial Terminal Port Pin Signals
Pin Signal
1 Request to Send
2 Data Terminal Ready
3 Transmit Data
4 Data Carrier Detect
5 Ground
6 Receive Data
7 Data Set Ready
8 Clear to Send
A1
A3
A4 1
10
9
17 A2
