x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide

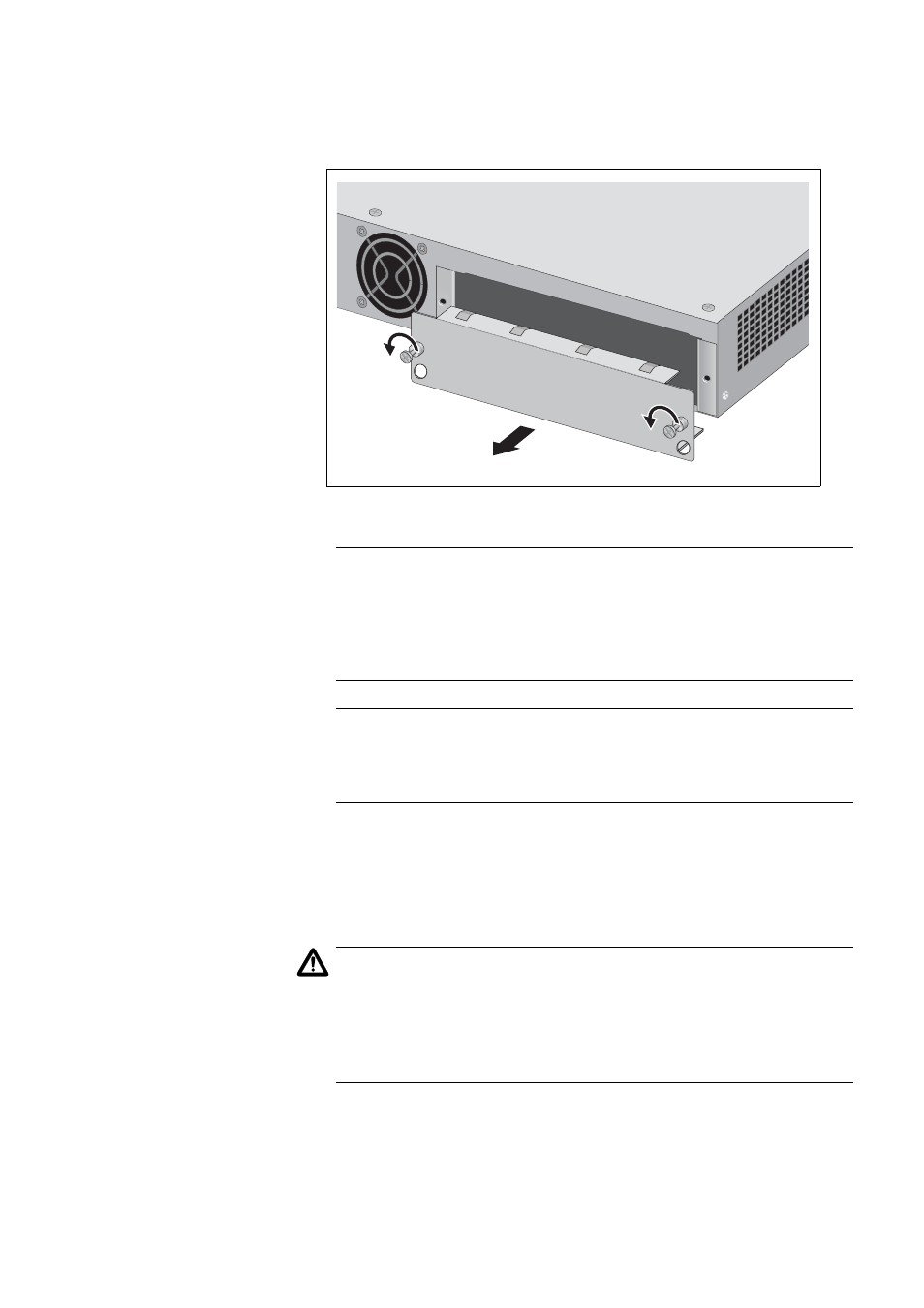

Figure 41. Removing the Blank Panel from the Expansion Slot

Note

All x610 Series Layer 3 Switch models, except the x610-48Ts/X and

x610-48Ts/X-POE+, are shipped from the factory with a blank panel

installed in the rear panel expansion slot. The x610-48Ts/X and

x610-48Ts/X-POE+ are shipped from the factory with an AT-LBM

module installed.

Note

Do not remove the blank panel from the chassis until you are ready

to install a module. An open slot allows dust to enter the unit and

reduces proper airflow and cooling.

3. Align the edges of either the AT-StackXG or AT-x6EM/XS2 stacking

module with the guides in the slot and carefully slide the module into

the chassis until it is flush with the rear panel of the chassis, as shown

in Figure 42 and Figure 43. Light pressure may be needed to seat the

module on the connector on the rear panel of the chassis.

Caution

Do not force the VCStack stacking module into place. Doing so may

damage the connector pins on the backplane inside the chassis. If

there is resistance, remove the module and reinsert it after verifying

that the edges of the card are properly aligned in the guides in the

chassis’ module slot.
