x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide
85
Cabling an
AT-x6EM/XS2
Stacking Module
1. Remove the dust plug from a transceiver slot on the switch, as shown
in Figure 47.

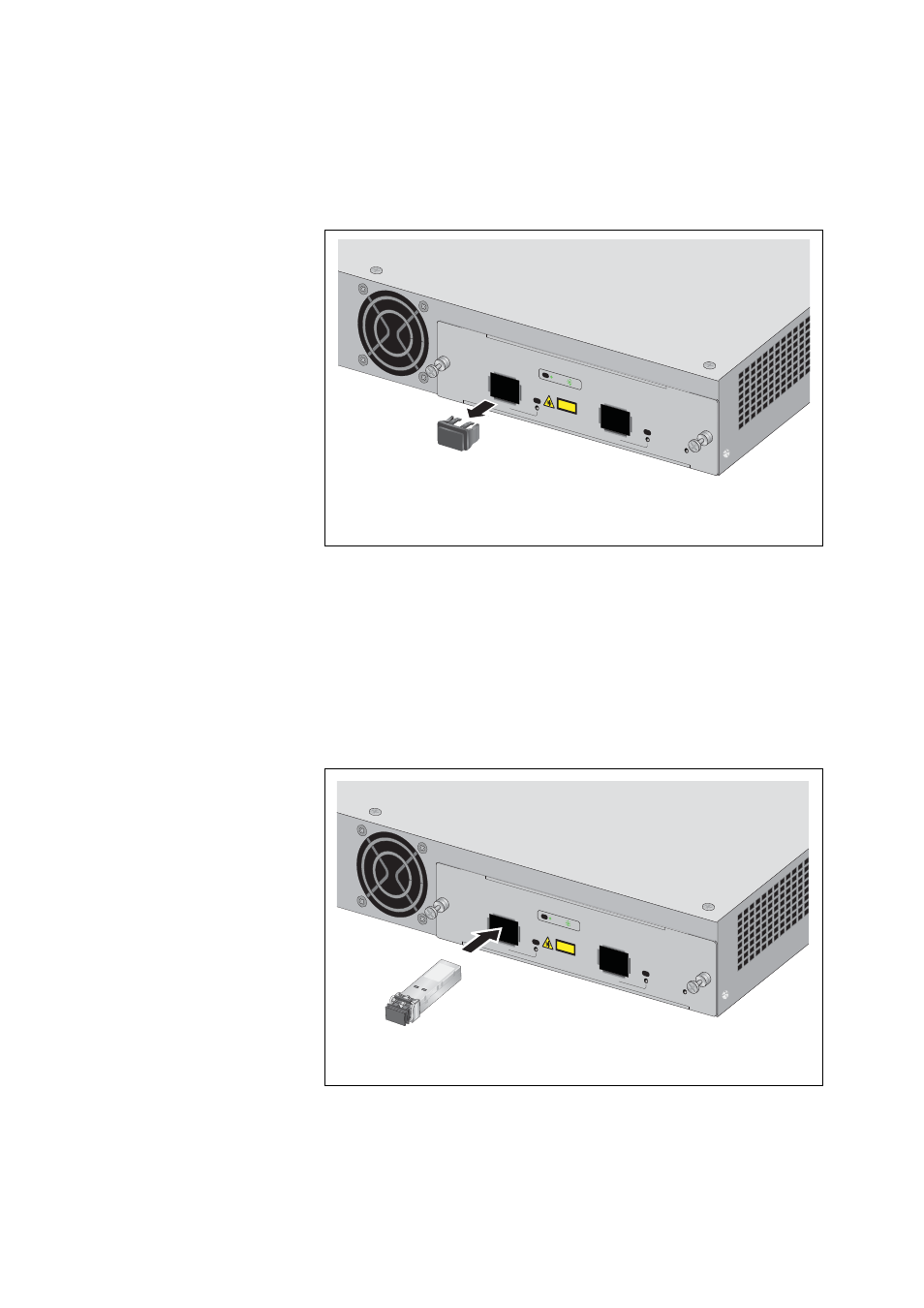

Figure 47. Removing a Dust Plug from a SFP+ Slot
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. Position the transceiver with the label facing up.
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 48.
Figure 48. Installing an SFP+ Transceiver
