x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide
79
VCStack Stacking Module Installation
Overview When you are preparing the x610 switches for a VCStack configuration, a
VCStack stacking module must be installed in the expansion slot on the
rear panel of the unit. Two VCStack stacking modules are available:
ˆ
The AT-StackXG, shown in Figure 39, has two full-duplex, 12 Gbps
stacking ports.
ˆ
The AT-x6EM/XS2, shown in Figure 40, has two 10 Gbps SFP+ stacking
slots.

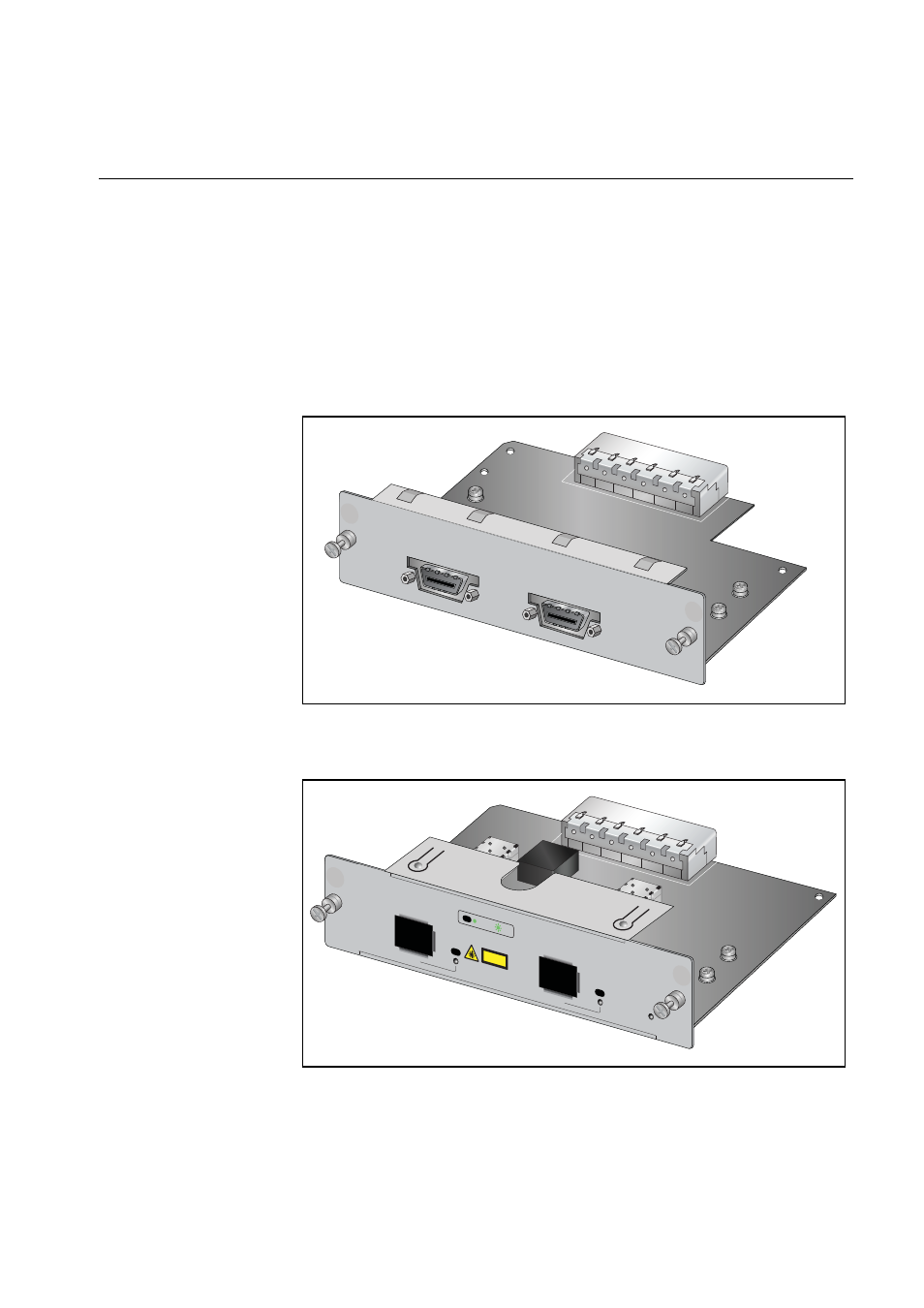

Figure 39. AT-StackXG Stacking Module
Figure 40. AT-x6EM/XS2 Stacking Module
Note that if the x610 switch is to be part of mixed-mode VCStack an
1240
AT-LX44CPUCVR AT-StackXG
Stack Port 1
Stac k Por t 2
2216
AT-LX44CPUCVR
POW
AT-x6EM/XS2
1
2 L/A
L/A
SFP+
SFP+ CLASS 1 LASER PRODUCT
10G LINK
ACT
L/A
