SFP and SFP+ Transceiver Slots
The x610 Series switches feature slots for optional Gigabit Ethernet SFP
transceivers, as listed in Table 2. The SFP slots support both fiber optic
and copper transceivers. Fiber optic transceivers let you connect the
switches to other network devices over long distances using fiber optic
cables. Copper transceivers allow you to add more twisted pair ports to
your x610 Series switch.
The x610-24Ts/X, x610-24Ts/X-POE+, x610-48Ts/X, and
x610-48Ts/X-POE+ switches feature additional slots for optional Gigabit
Ethernet SFP+ transceivers, as listed in Table 2. The SFP+ slots support
both fiber optic and copper 10 Gbps transceivers.

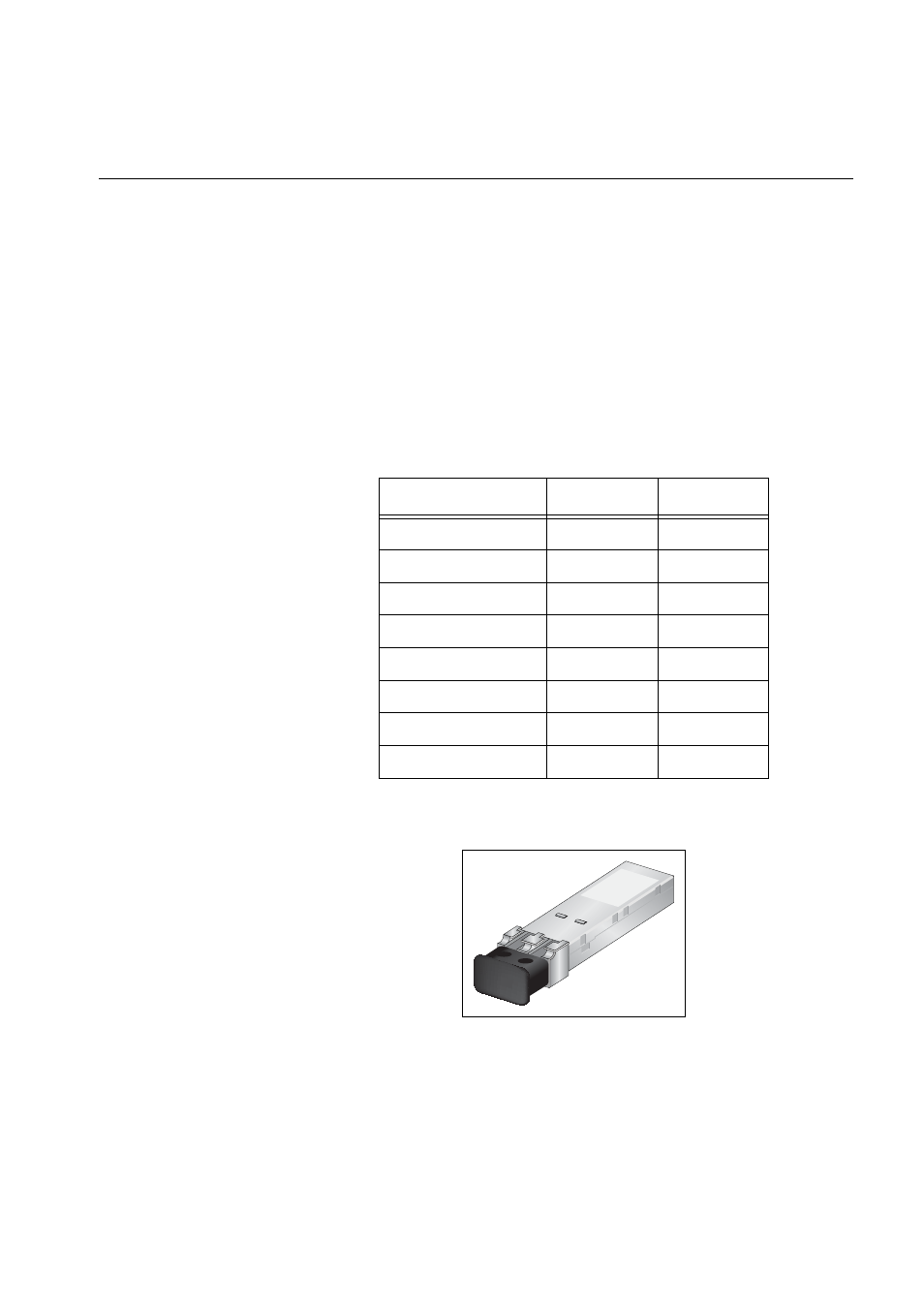

Figure 9 shows a SFP/SFP+ transceiver.
Figure 9. SFP/SFP+ Transceiver
Refer to “Installing SFP and SFP+ Transceivers” on page 92 for the SFP
installation instructions.
Table 2. Number of SFP and SFP+ Slots on x610 Series Switches
Model SFP Slots SFP+ Slots
x610-24Ts 4 -
x610-24Ts-POE+ 4 -
x610-24Ts/X 4 2
x610-24Ts/X-POE+ 4 2
x610-48Ts 4 -
x610-48Ts-POE+ 4 -
x610-48Ts/X 2 2
x610-48Ts/X-POE+ 2 2
