x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide
93
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. Position the transceiver with the label facing up if installing in a top slot
and with the label facing down if installing in a bottom slot.
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 53.

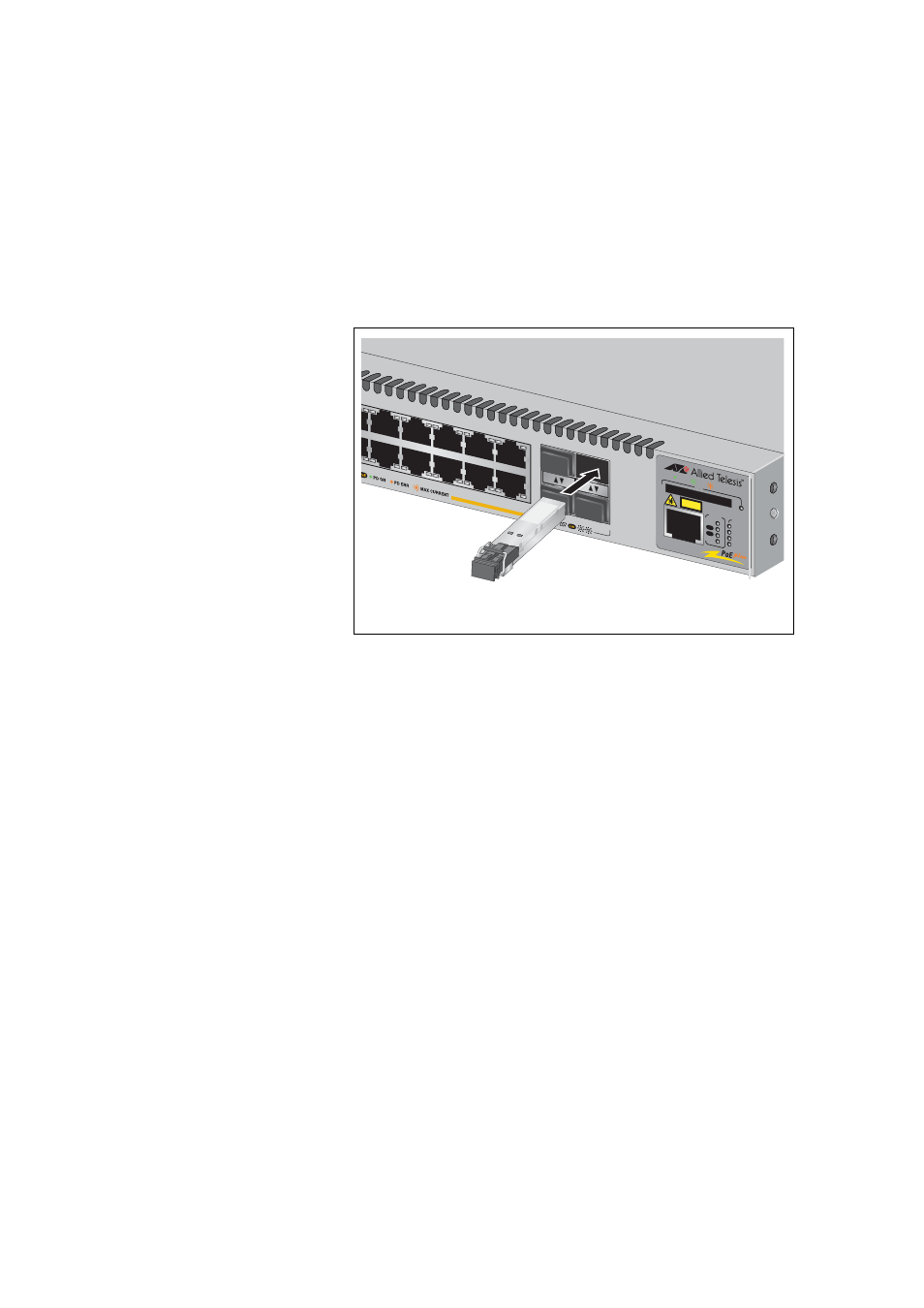

Figure 53. Installing a Transceiver
5. Repeat this procedure to install additional SFP or SFP+ transceivers or
go to “Cabling the 10/100/1000Base-T and Fiber Optic Ports” on
page 94.
For SFP optical and cabling specifications, consult the documentation
shipped with the module.
22
S FP
2 3
21
24
15
17
19
21R
16
1 8
20
22R
24R
2 3 R
1000 / 100
SD
STATUS
FAULT
MASTER
RPS
PWR
PRES
MSTR
L/A
L/A
CLASS 1 LASER PR ODUCT
1
2
STACK
BU S Y
READ Y
FAULT
CON S OLE
