Chapter 1: Overview
28
x610-48Ts/X-
POE+ Switch
The x610-48Ts/X-POE+ switch has the following hardware features:
ˆ
48 10/100/1000Base-T ports with Power over Ethernet Plus (PoE+)
capability.
ˆ
Two Gigabit Ethernet small form-factor pluggable (SFP) transceiver
slots
ˆ
Two 10 Gigabit Ethernet small form-factor pluggable plus (SFP+)
transceiver slots
ˆ
An RJ-45 style serial terminal port for local (out-of-band) management
ˆ
One SD slot supporting SD and SDHC cards
ˆ
Status LEDs for the ports, transceiver slots, and system
ˆ
Redundant power supply connector
ˆ
AT-LBM (Loop Back) module installed in the rear of the switch

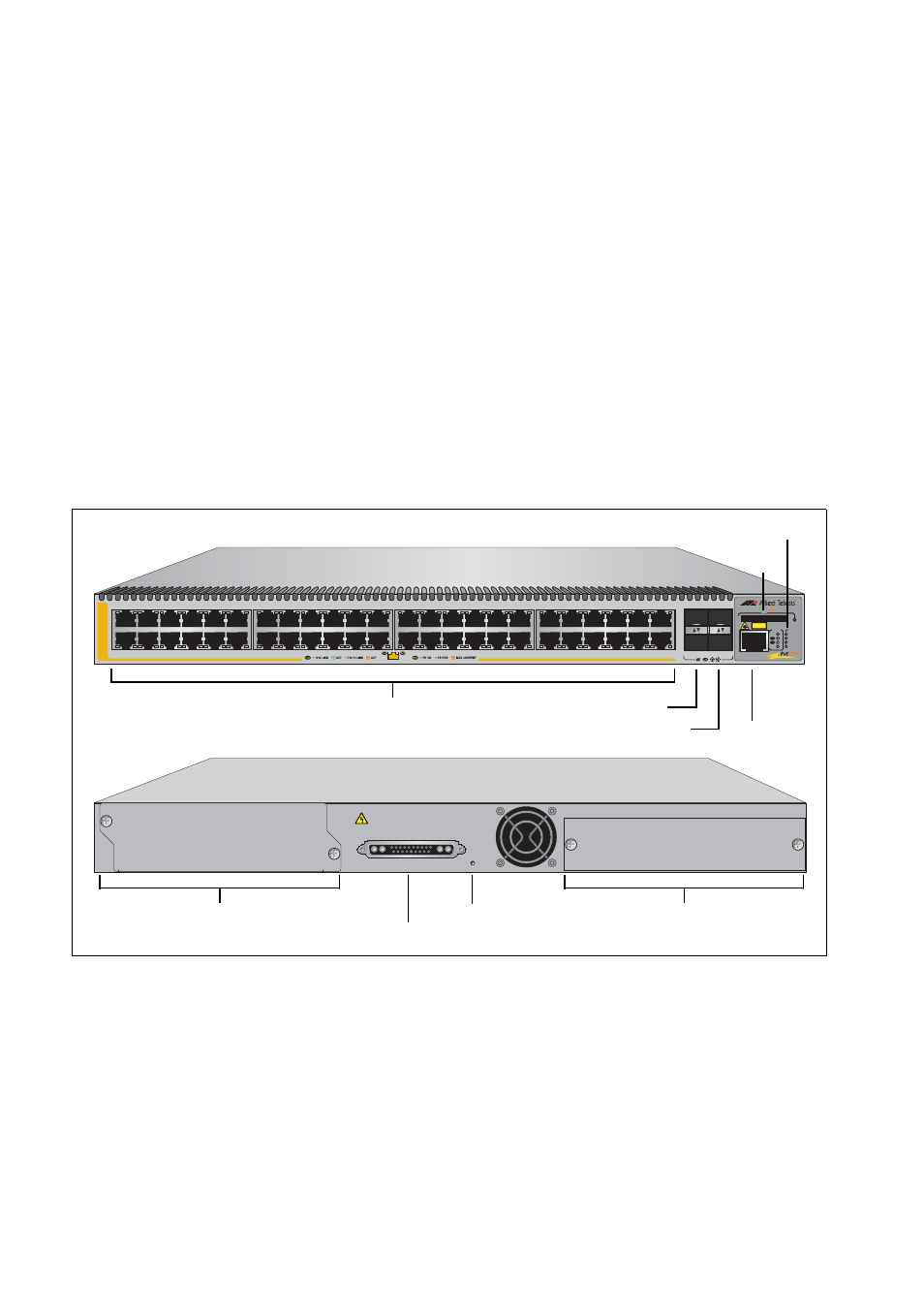

Figure 8 shows the x610-48Ts/X-POE+ switch front and rear panel.
Figure 8. x610-48Ts/X-POE+ Switch
48R 38 40 42 44 46 2 4 6 8 10 12 34 36 32 26 28 30 16 14 22 24 18 20
SFP 49 SFP+ 47 47R 37 39 41 43 45 1 3 5 7 9 11 15 13 17 19 21 23 33 31 35 25 27 29
x610-48Ts/X-POE+ 10G 48 50 1000 / 100
SD
STATUS
FAULT
MASTER
RPS
PWR
PRES
MSTR
L/A
L/A
CLASS 1 LASER PRODUCT
1
2
STACK
BUSY READY FAULT
CONSOLE
1 0/100/1000Base-T Ports SFP Slots
System and Stack LEDs
SD Slot
RPS LED
RJ-45 SFP+ Slots
Console Port
PO
WER SUPPL
Y
RPS
READY
RPS INPUT
56V/18A MAX 12V/21A MAX
STACKING
WARNING
This unit may have more than one power input. To reduce the risk of
electric shock, disconnect both A/C and RPS inputs before servicing
unit.
AT-LBM
RPS Connector
Power Supply Slot with Blank Panel Expansion Slot with AT-LBM Module
