x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide
21
Switch Descriptions
The following sections describe the x610 Series Layer 3 Gigabit Ethernet
Switches.
x610-24Ts Switch The x610-24Ts switch has the following hardware features:
ˆ
24 10/100/1000Base-T ports
ˆ
Four Gigabit Ethernet small form-factor pluggable (SFP) transceiver
slots
ˆ
An RJ-45 style serial terminal port for local (out-of-band) management
ˆ
One SD slot supporting SD and SDHC cards
ˆ
Status LEDs for the ports, transceiver slots, and system
ˆ
Redundant power supply connector
ˆ
Expansion slot for either an AT-StackXG or an AT-x6EM/XS2 stacking
module
ˆ
Fixed 120 watts power supply

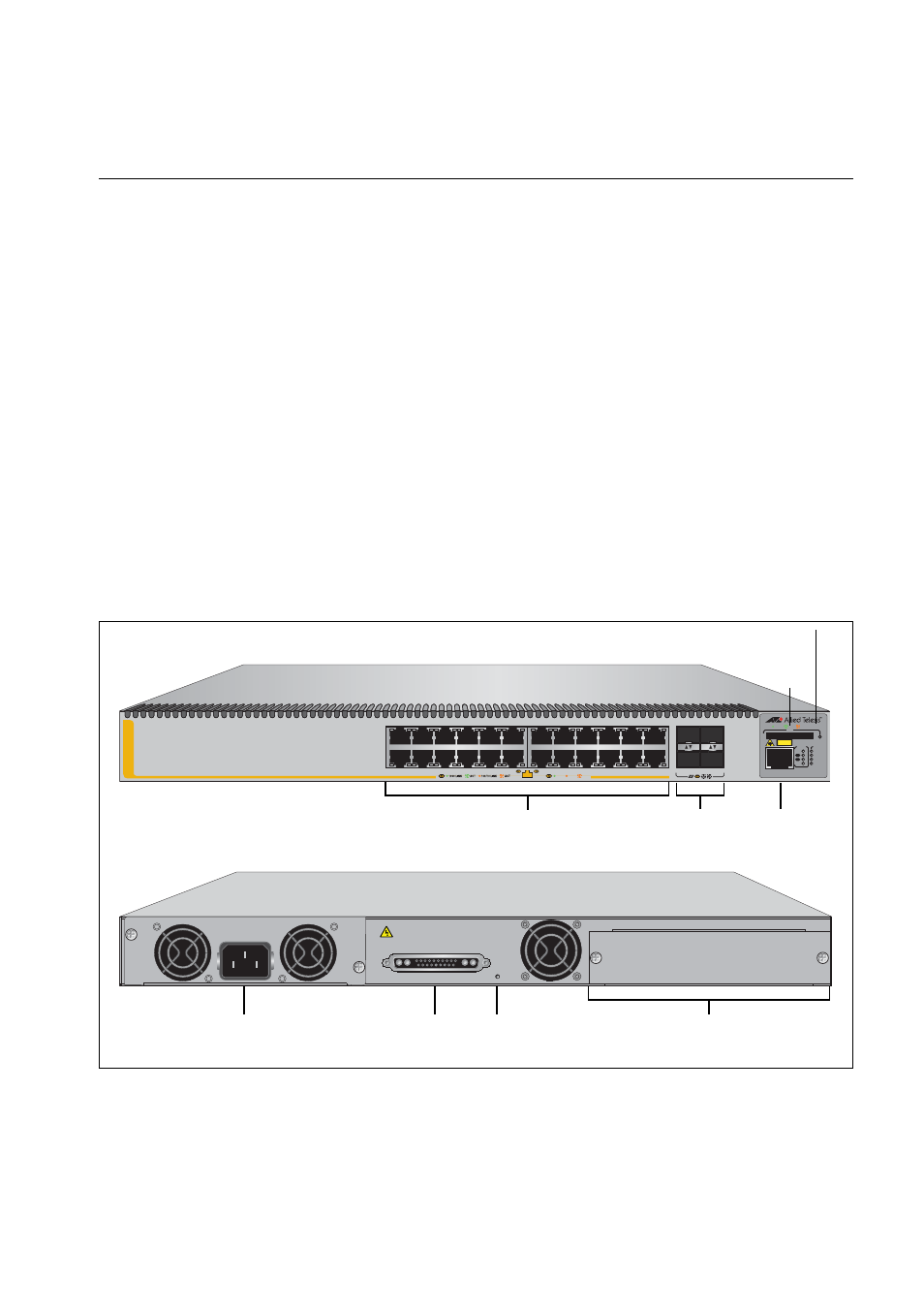

Figure 1 shows the x610-24Ts switch front and rear panels.
Figure 1. x610-24Ts Switch
22
SFP 23 21
24 4 6 8 10 12
3 5 1
2
7 9 11 13 15 17 19
16 18 20 14 1000 / 100
21R 23R
22R 24R
x610-24Ts
SD
STATUS
FAULT
MASTER
RPS
PWR
PRES
MSTR
L/A
L/A
CLASS 1 LASER PRODUCT
1
2
STACK
BUSY READY FAULT
CONSOLE
FDX HDX COL
PO
WER SUPPL
Y
RPS
READY
RPS INPUT
12V/21A MAX
STACKING
WARNING
This unit may have more than one power input. To reduce the risk of
electric shock, disconnect both A/C and RPS inputs before servicing
unit.
100-240VAC~
SD Slot
RJ-45
Console
Port
1 0/100/1000Base-T Ports SFP Slots
System and Stack LEDs
AC Power
Connector
RPS Connector Expansion Slot with Blank Panel RPS LED
