x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide
101
Starting a Local
Management
Session
The following procedure describes how to connect an RJ-45 cable to an
x610 switch. For information about how to log onto the AlliedWare Plus
Operating System Software
, see the AlliedWare Plus
Operating System
Software Reference Guide.
To start a local management session on the unit, perform the following
procedure:
1. Connect the RJ-45 end of the management cable included with the
x610 switch to the Terminal Port on the front panel of the switch, as
shown in Figure 60.

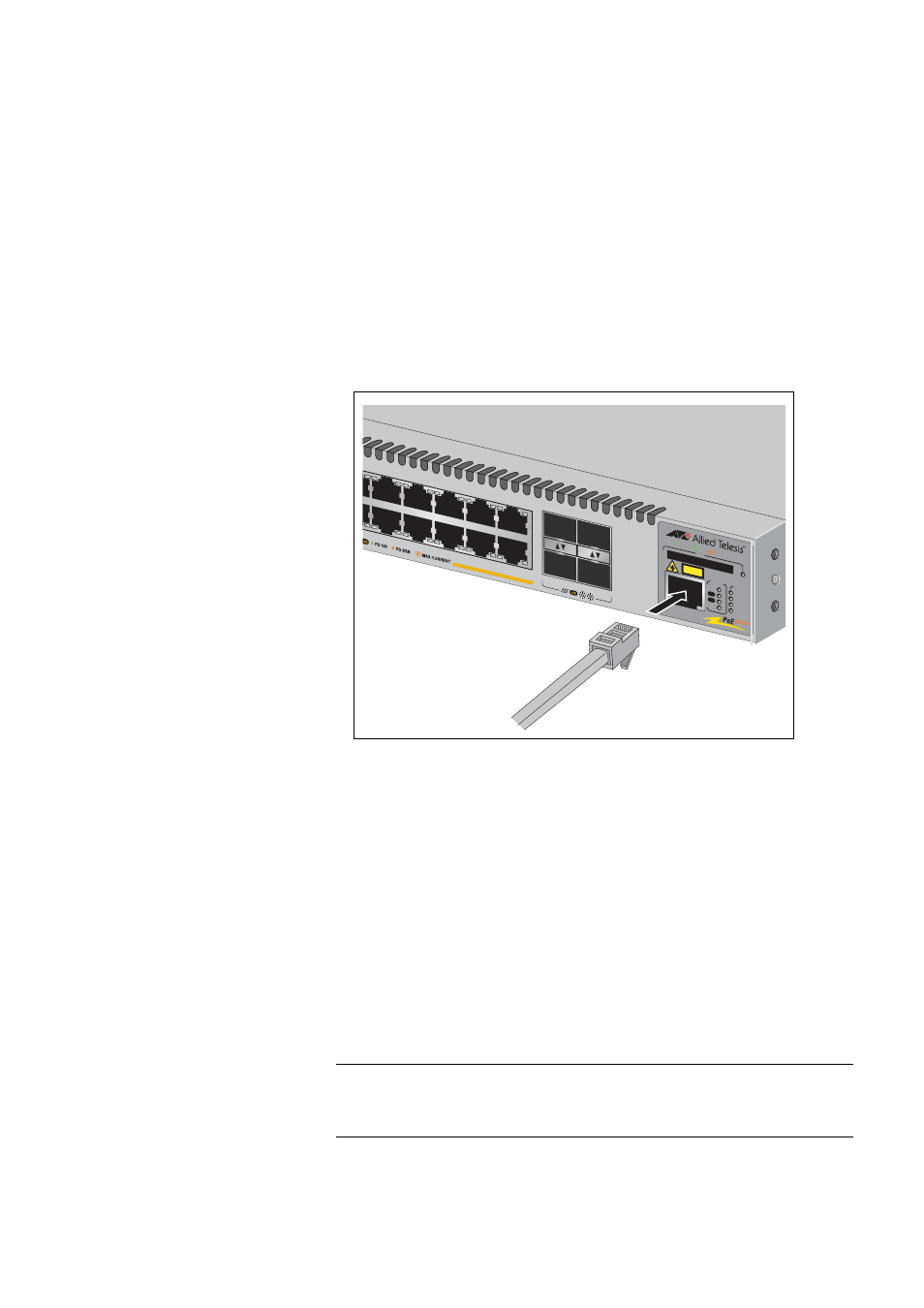

Figure 60. Connecting the Management Cable to the RJ-45 Terminal Port
on the Switch
2. Connect the other end of the cable to an RS-232 port on a terminal or
a personal computer with a terminal emulation program.
3. Configure the terminal or terminal emulation program as follows:
ˆ
Baud rate: Default is 9600 bps (Range is 9600 to 115200 bps)
ˆ
Data bits: 8
ˆ
Parity: None
ˆ
Stop bits: 1
ˆ
Flow control: None
Note
The port settings are for a DEC VT100 or ANSI terminal, or an
equivalent terminal emulator program.
22
S FP
2 3
21
24
15
17
19
21R
16
1 8
20
22R
24R
2 3 R
1000 / 100
SD
STATUS
FAULT
MASTER
RPS
PWR
PRES
MSTR
L/A
L/A
CLASS 1 LASER PRODUC T
1
2
STACK
BU S Y
READ Y
FAULT
CON S OLE
