Allied Telesis AT-SBx31CFC960 User Manual
Page 282
Chapter 13: Replacing Modules
282

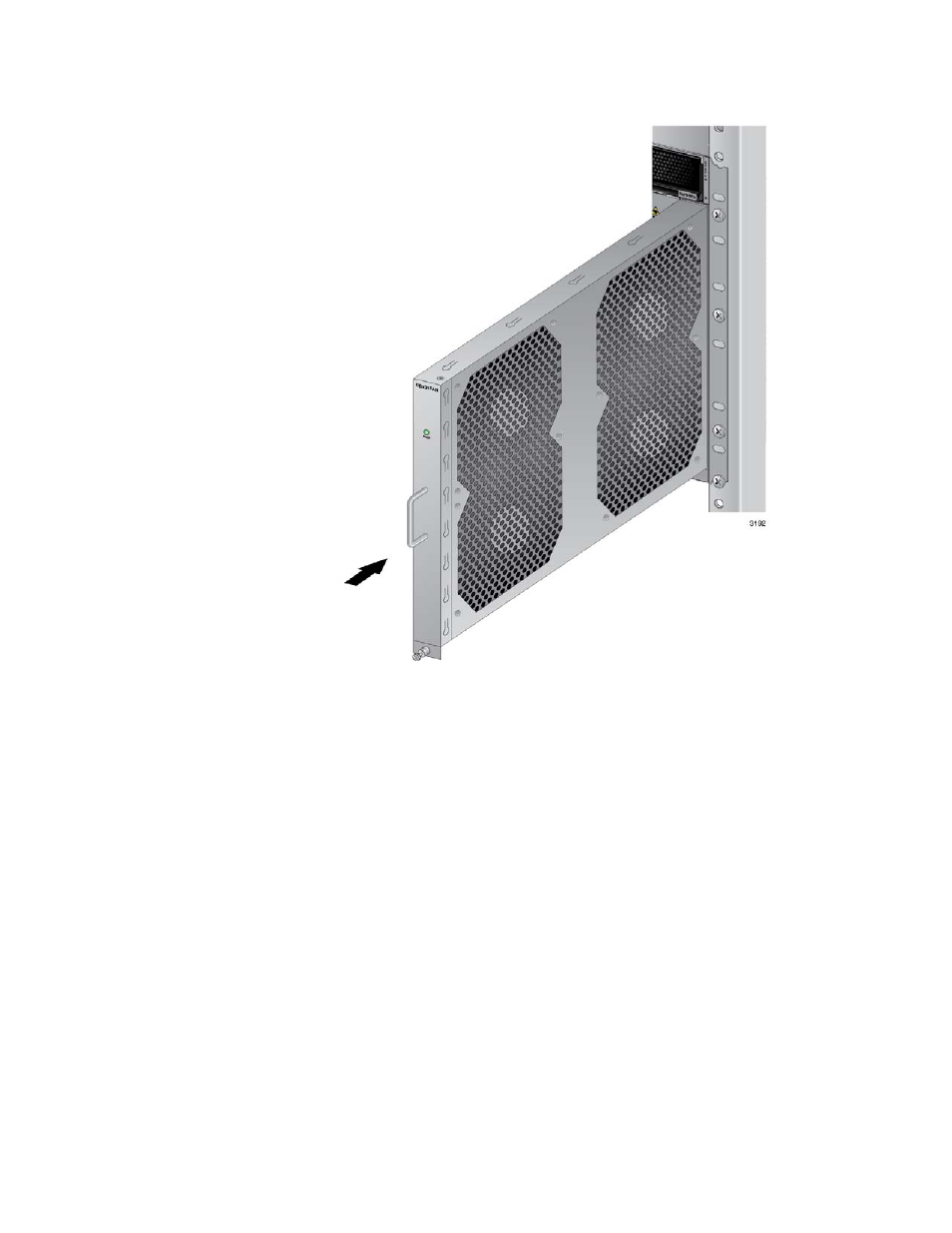

Figure 176. Installing a New AT-SBxFAN12 Fan Module
2. When you feel the fan module make contact with the connector on the
backplane, gently push on the top and bottom of the faceplate to seat
the module on the connector. Refer to Figure 177 on page 283.
