SwitchBlade x3112 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
129
If any item is missing or damaged, contact your Allied Telesis sales
representative for assistance.

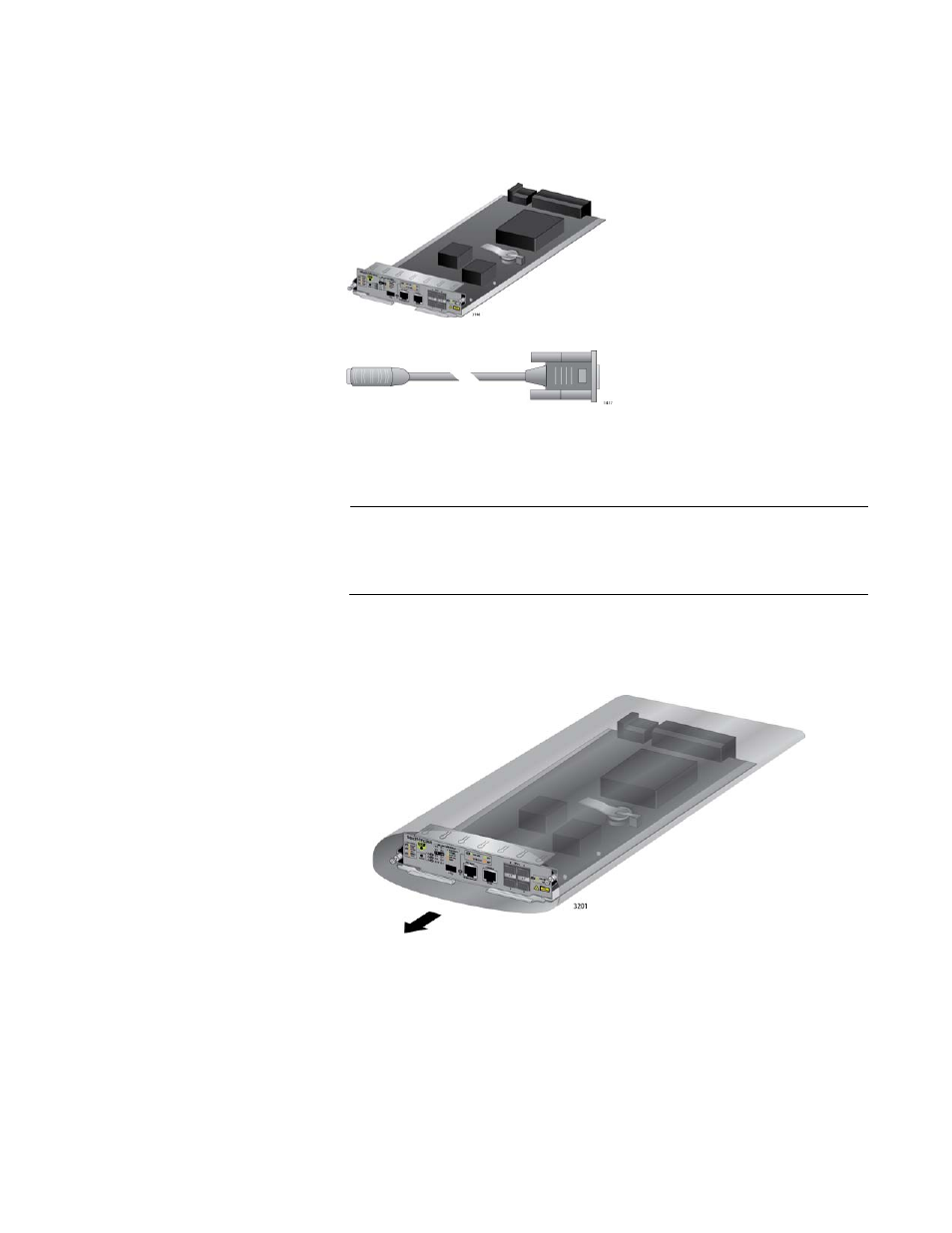

Figure 68. Items Included with the AT-SBx31CFC960 Controller Fabric
Card
Note
Store the packaging material in a safe location. You should use the
original shipping material if you need to return the unit to Allied
Telesis.
3. Carefully remove the controller card from the anti-static bag. Refer to
Figure 69. Removing the AT-SBx31CFC960 Controller Fabric Card from
the Anti-static Bag
4. Remove the battery insulator tab on the controller card by sliding it out
from between the battery and battery clip, as shown in Figure 70 on
page 130.
One AT-SBx31CFC960
Controller Fabric Card
One 2 m (6.6 ft) local
management cable with
RJ-45 (8P8C) and DB-9
(D-sub 9-pin) connectors.
