Chapter 8: Installing the Transceivers and Cabling the Ports
150
Installing SFP and CSFP Transceivers in the AT-SBx31GC40 Line
Card
Please review the information in “Guidelines to Installing SFP, SFP+,
CSFP, and XFP Transceivers” on page 145 before performing this
procedure.
To install SFP and CSFP transceivers in AT-SBx31GC40 Line Cards,
perform the following procedure:
1. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
2. Remove the dust cover from the slot chosen for the transceiver.

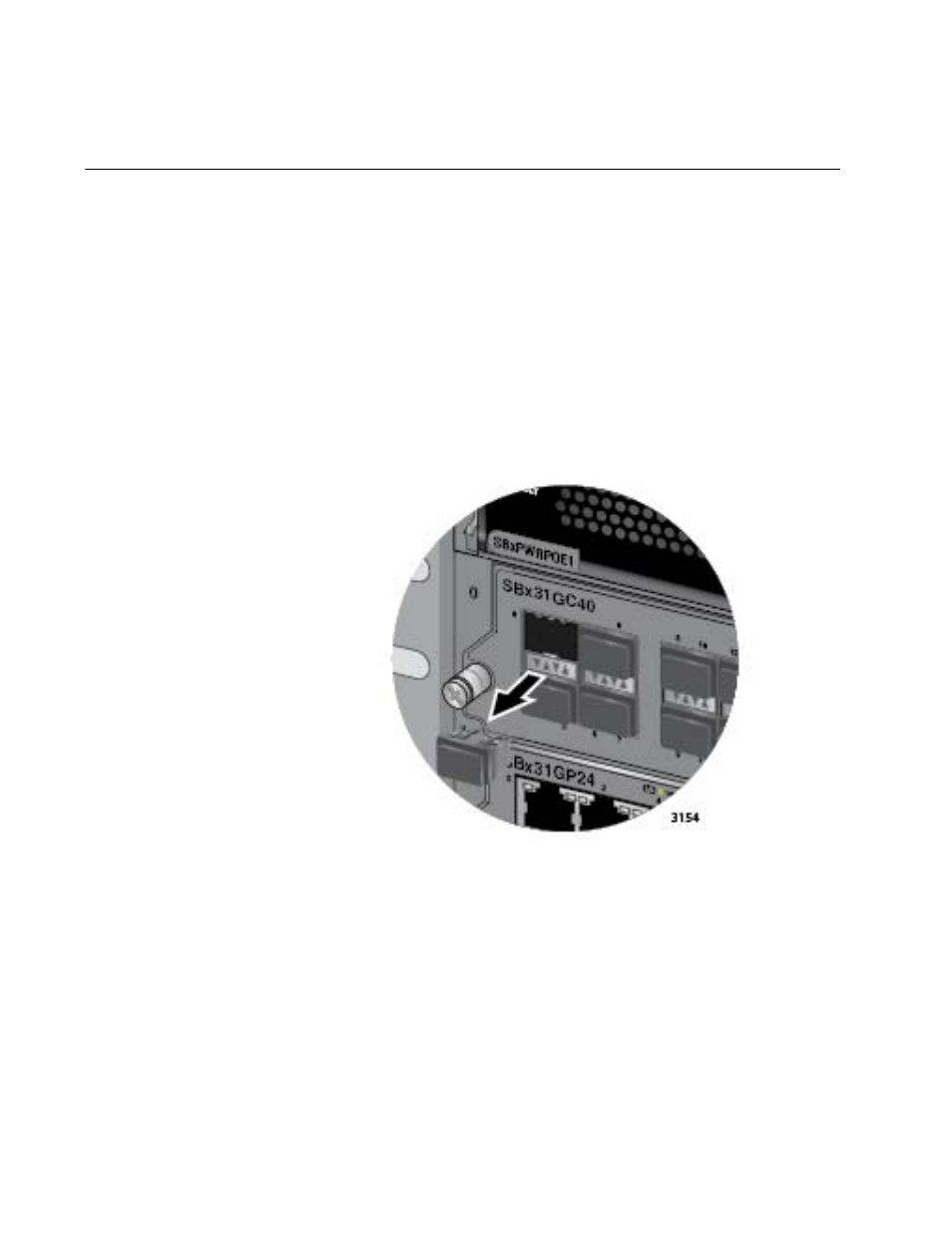

Figure 89 shows the dust cover being removed from the first slot on
the line card in slot 0 of the chassis.
Figure 89. Removing the Dust Cover from a Transceiver Slot on the AT-
SBx31GC40 Line Card
3. To install an SFP or a CSFP transceiver in a slot on the top row of the
line card, orient it with the label on top, as shown in Figure 90 on page
151. To install it into a slot on the bottom row of the line card, orient it
with the label on the bottom.
