Chapter 8: Installing the Transceivers and Cabling the Ports

160

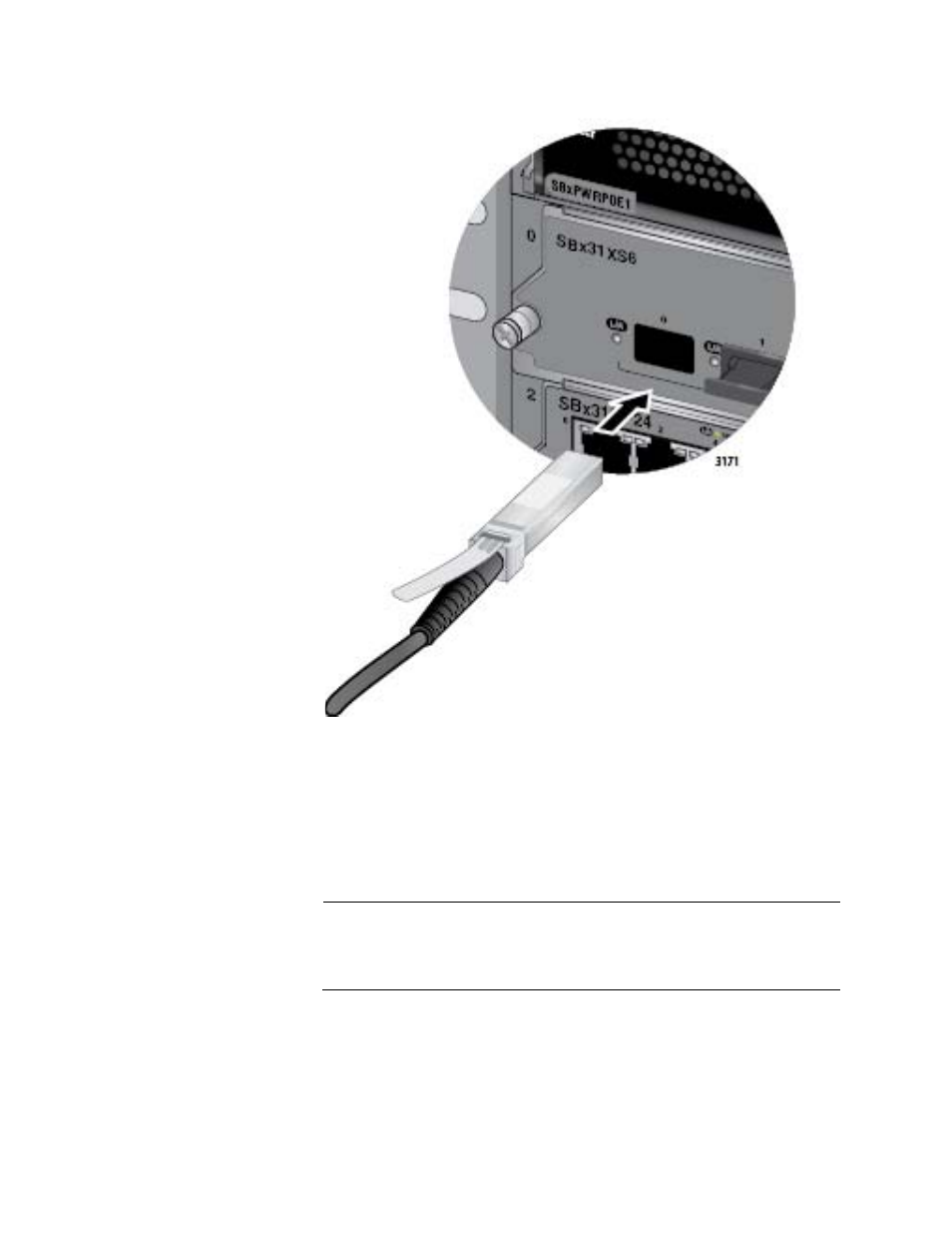

Figure 100. Installing the AT-SP10TW Cable in the AT-SBx31XS6 Line

Card

4. Install the other end of the cable into an SFP+ slot on another network

device.

5. Repeat this procedure to install additional AT-SP10TW Cables.

Note

To remove the connector and cable from the SFP+ slot, gently push
on the connector, pull on the release tab, and then slide the
connector from the slot.

After installing the AT-SP10TW Cables in the AT-SBx31XS6 Line Card, do
one of the following:

To install and cable additional transceivers, go to the appropriate
