Chapter 8: Installing the Transceivers and Cabling the Ports
162
Installing XFP Transceivers in the AT-SBx31XZ4 Line Card
Please review the information in “Guidelines to Installing SFP, SFP+,
CSFP, and XFP Transceivers” on page 145 before performing this
procedure.
To install XFP transceivers in the AT-SBx31XZ4 Line Card, perform the
following procedure:
1. Remove the dust plug from the slot chosen for the transceiver, as
shown in Figure 101.

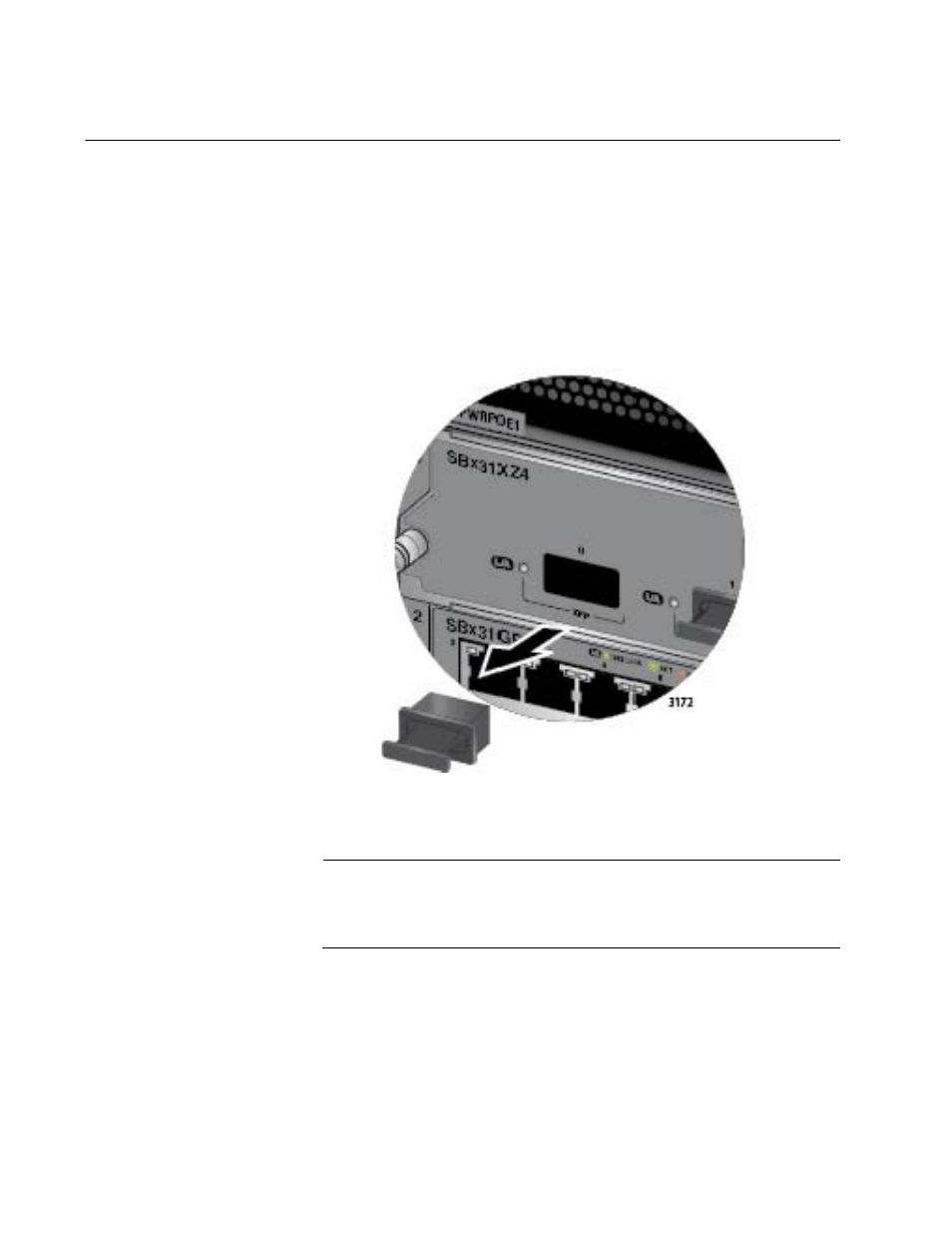

Figure 101. Removing the Dust Cover From an XFP Slot on the AT-
SBx31XZ4 Line Card
Note
Do not remove the dust plug from the XFP slot if you are not
installing the transceiver at this time. The dust plug protects the line
card from dust contamination.
2. Remove the transceiver from its shipping container.
3. Orient the transceiver with the handle on top, as shown in Figure 102
on page 163.
