Chapter 8: Installing the Transceivers and Cabling the Ports
152

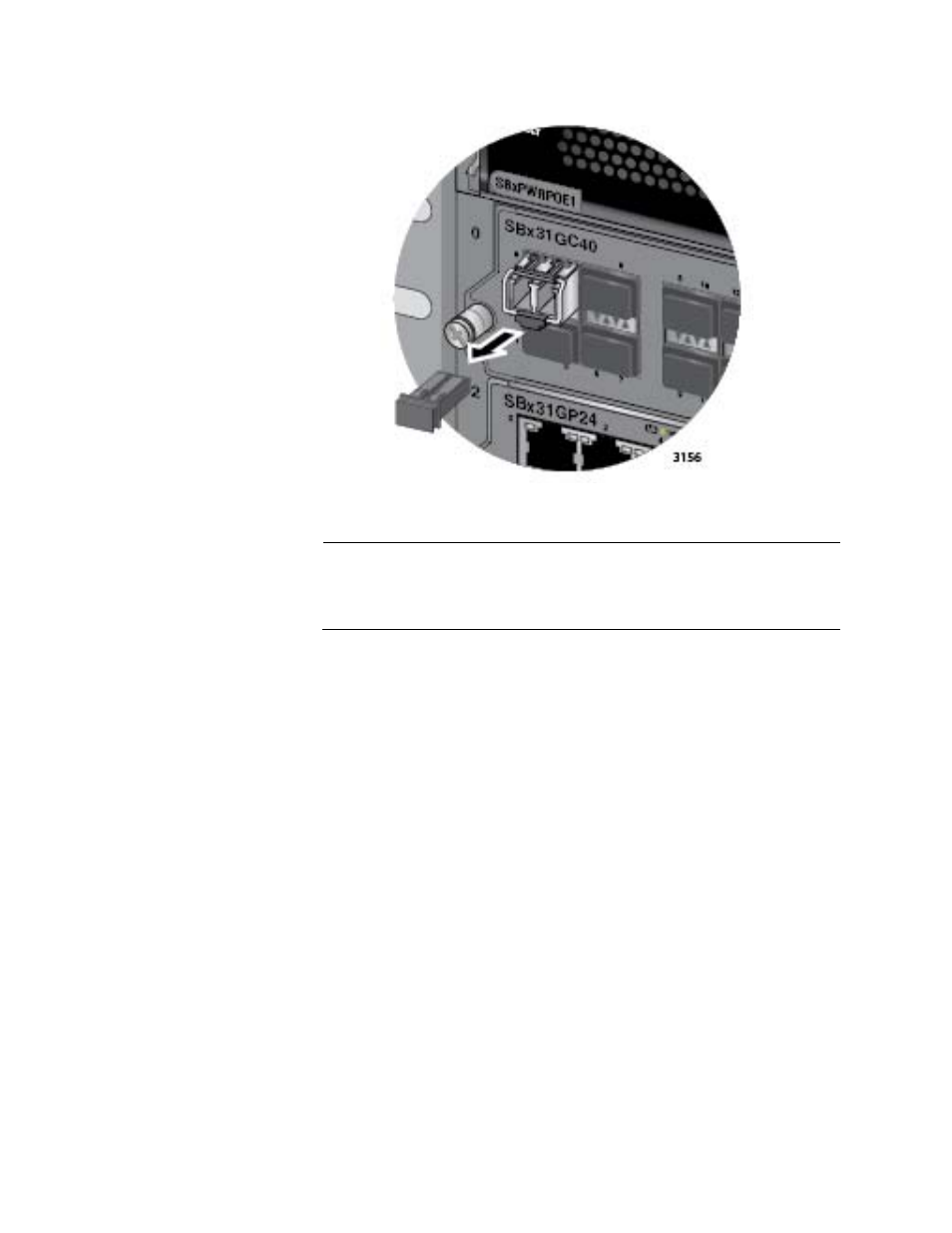

Figure 92. Removing the Dust Cover from an SFP or a CSFP Transceiver
Note
The dust cover protects the fiber optic ports on the transceiver from
dust contamination. It should not be removed until you are ready to
connect the fiber optic cable.
6. Connect the fiber optic cables to the port on the transceiver, as shown
in Figure 93 on page 153. The connectors should snap into the ports. If
you are connecting only one cable to a CSFP transceiver, you may
connect it to either port.
