Allied Telesis AT-SBx31CFC960 User Manual
Page 279
SwitchBlade x3112 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
279

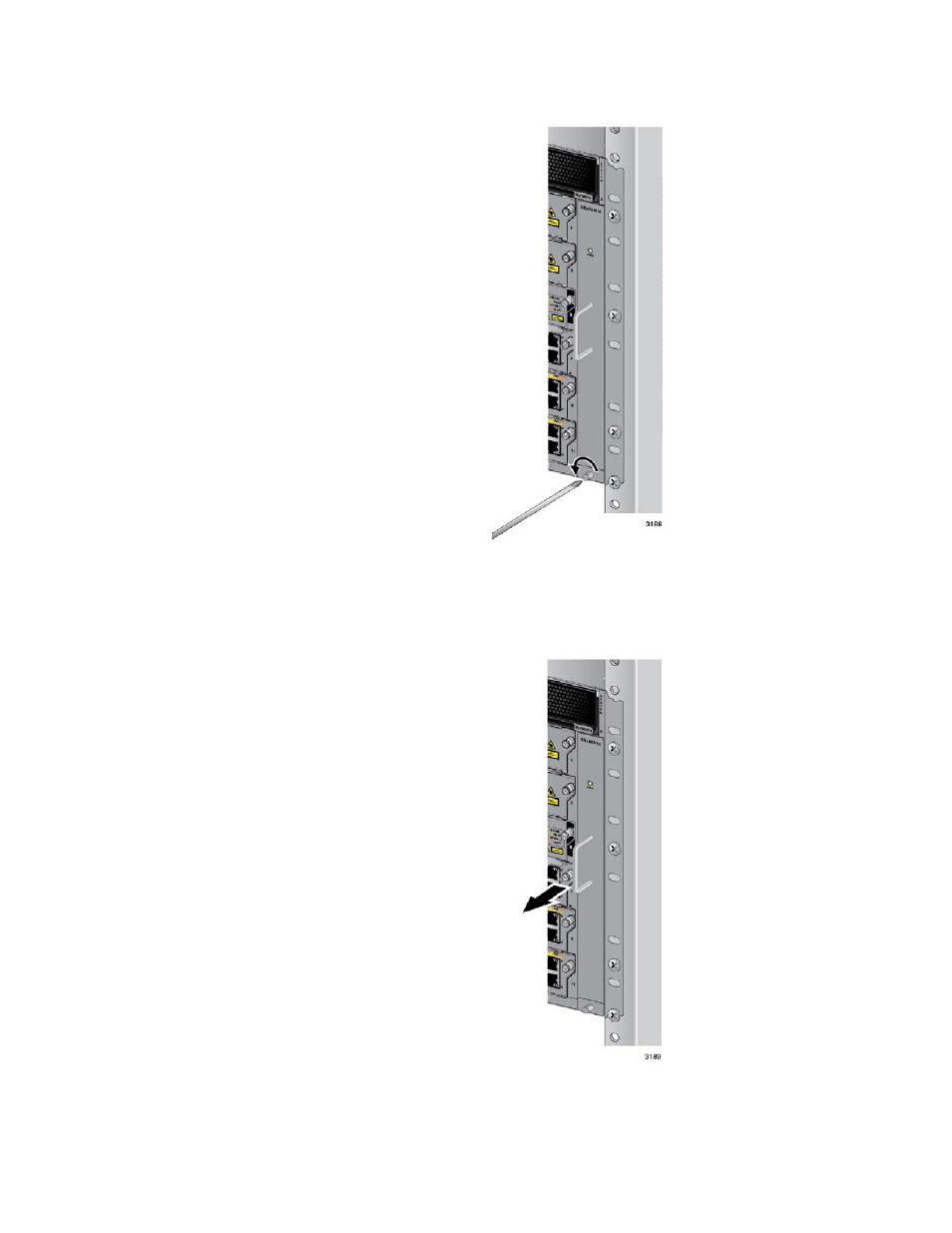

Figure 172. Loosening the Screw on the AT-SBxFAN12 Fan Module
6. Carefully pull on the handle to disconnect the fan module from the
connector on the backplane of the chassis. Refer to Figure 173.
Figure 173. Loosening the AT-SBxFAN12 Fan Module from the Backplane
Connector
