Chapter 1: Overview of the Chassis and Power Supplies

22

AT-SBx3112 Chassis

The AT-SBx3112 Chassis is a 7RU unit with slots for ten Ethernet line
cards, two controller cards, two system power supply modules, and two
PoE power supply modules. The chassis components are identified in
Figure 4 here and Figure 5 on page 23.

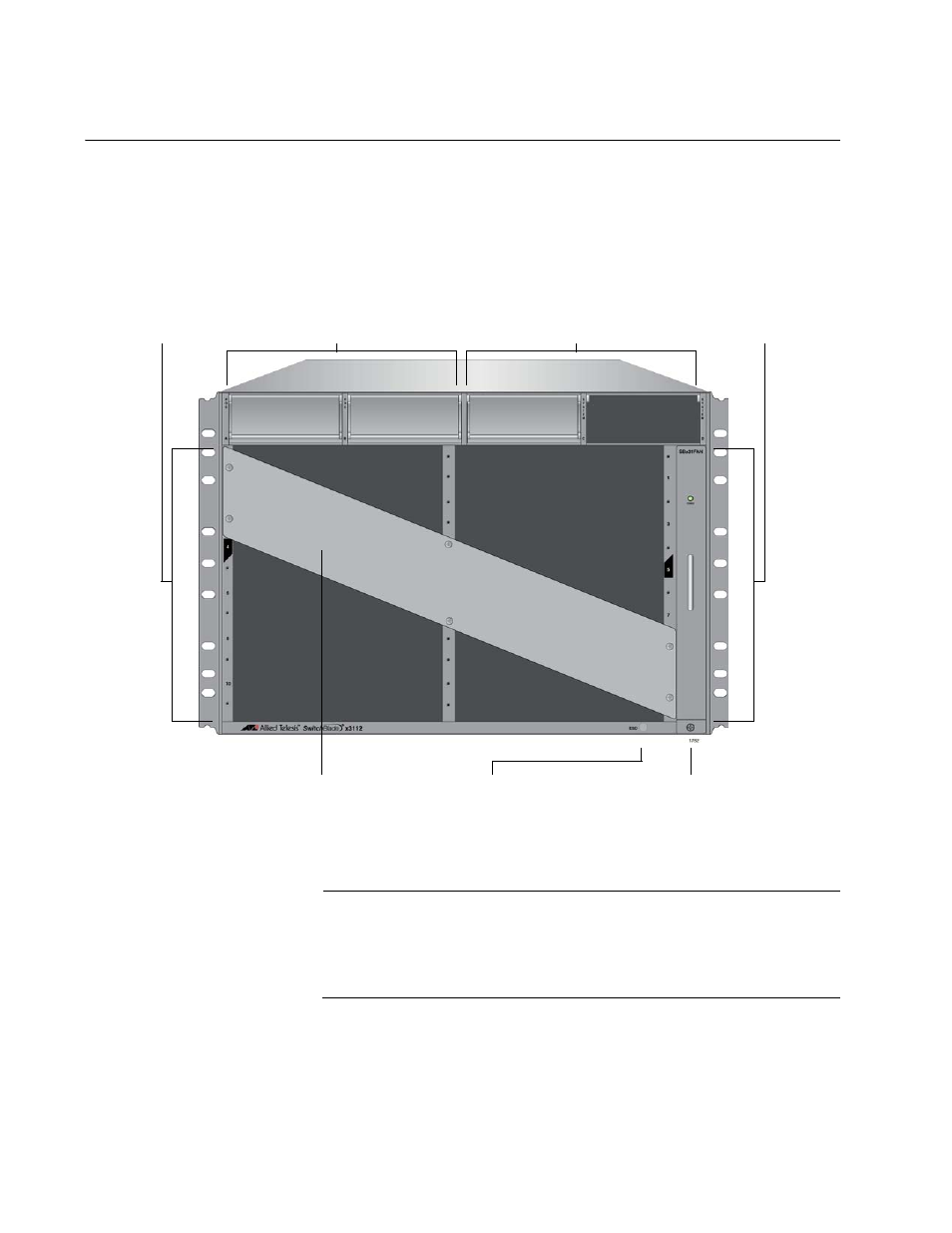

Figure 4. Front View of the AT-SBx3112 Chassis

Note

Do not remove the shipping brace from the front of the chassis until
after the unit is installed in the equipment rack. You might bend the
chassis and cause misalignment of the slots and card guides if you
lift the chassis into the equipment rack without the shipping brace.

Slots for Ethernet

Line Cards and
Controller Card

Slots for Ethernet

Line Cards and
Controller Card

PoE Power

Supply Slots

System Power

Supply Slots

Shipping Brace

AT-SBxFAN12

Module

ESD Wrist Strap

Plug
