Powering On the AT-SBxPWRSYS1 AC Power Supply
The procedure in this section explains how to power on the AT-
SBxPWRSYS1 AC Power Supply. For installation instructions, refer to
“Installing the AT-SBxPWRSYS1 AC System Power Supply” on page 107.
Note
If the chassis has both AT-SBxPWRSYS1 and AT-SBxPWRPOE1
Power Supplies, you may power on the power supplies in any order
or simultaneously.
To power on the chassis, perform the following procedure:
1. Identify AC sockets C and D in the recessed panel on the back panel
of the chassis, shown in Figure 111. The sockets correspond to the
AT-SBxPWRSYS1 System Power Supplies in slots C and D on the
front panel of the chassis.

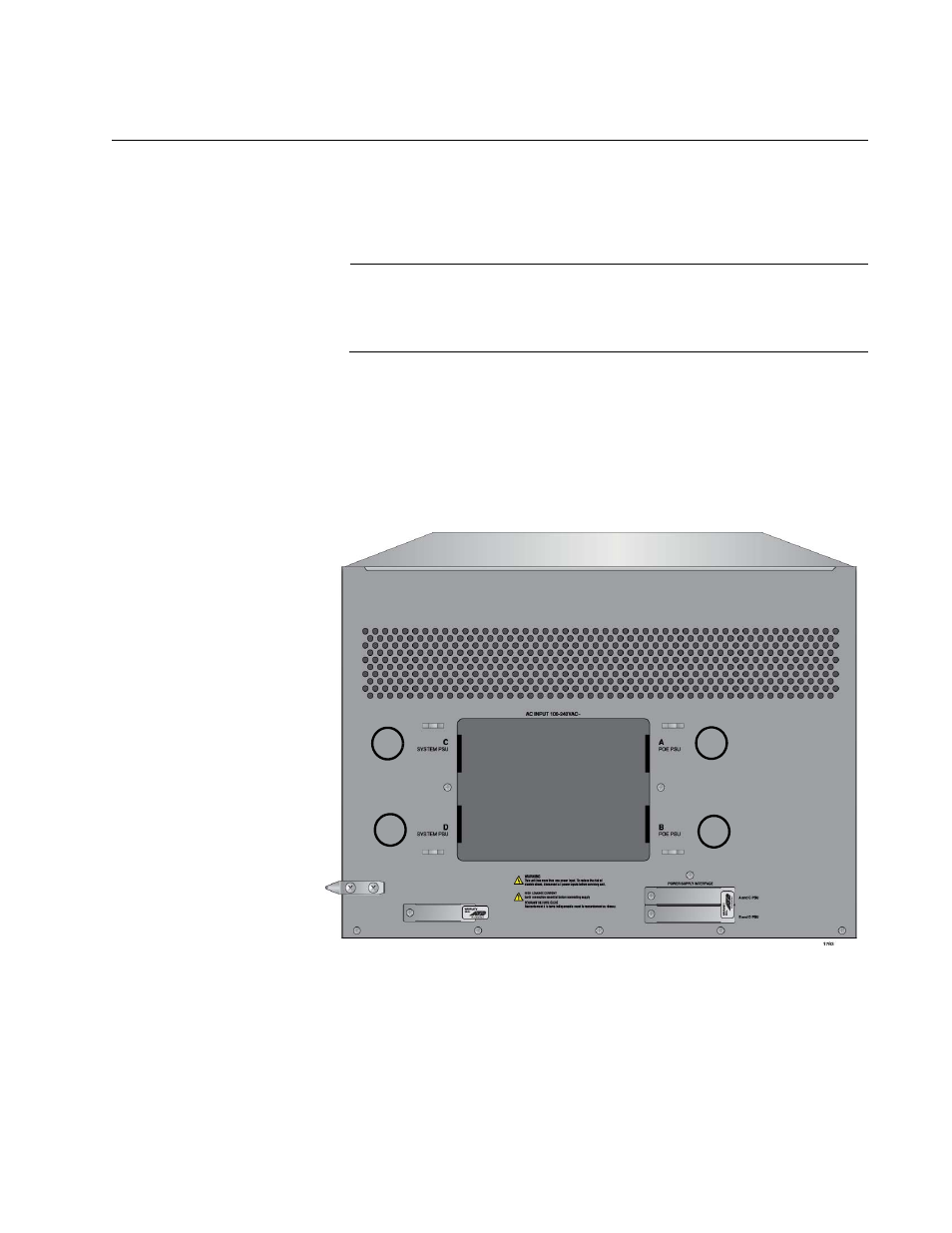

Figure 111. AC Sockets on the AT-SBx3112 Chassis Rear Panel
2. Plug the AC power cord that comes with the power supply into a plug
whose corresponding slot on the front panel has a system power
supply.
