SwitchBlade x3112 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
281

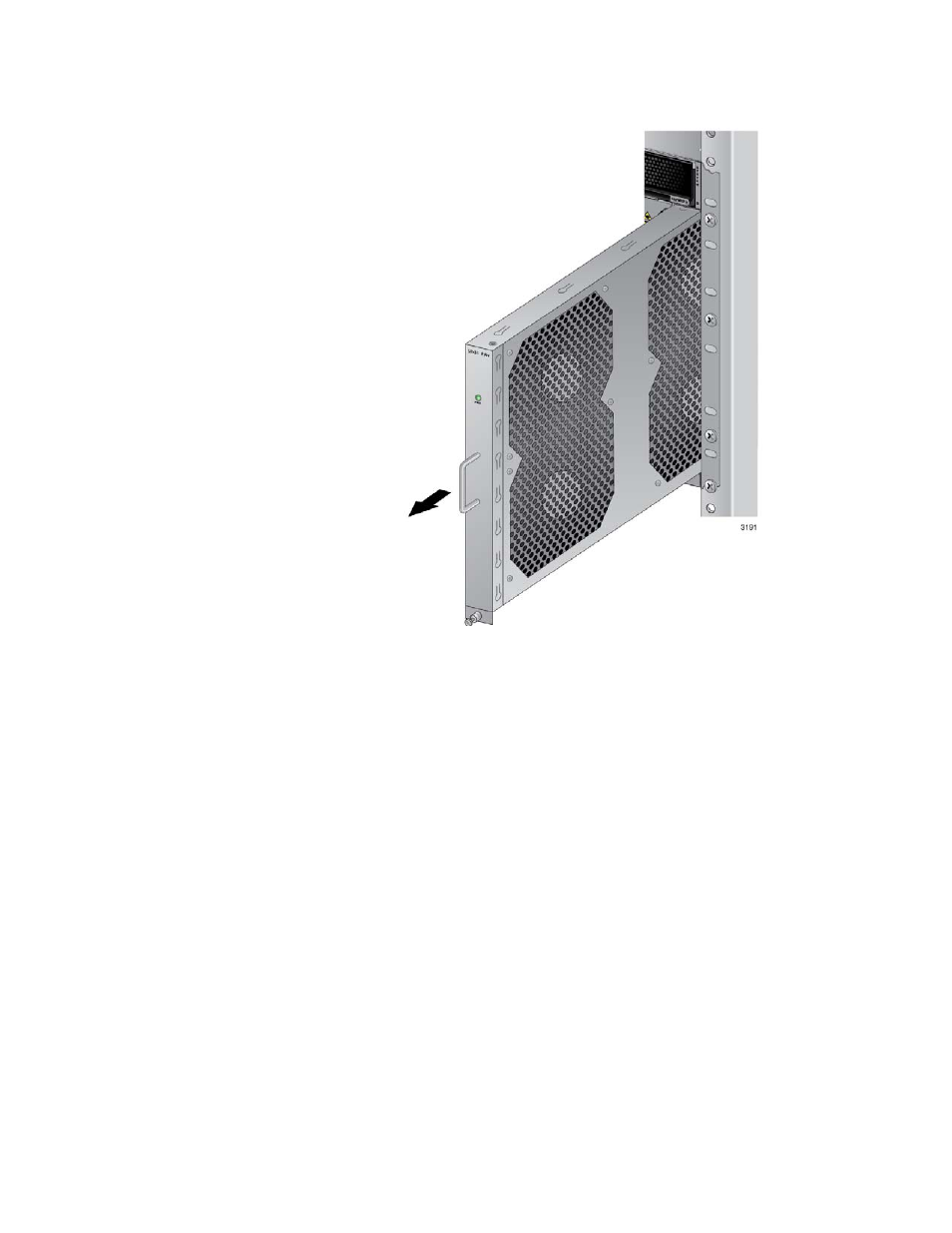

Figure 175. Removing the AT-SBxFAN12 Fan Module from the Chassis
Installing the
New AT-
SBxFAN12 Fan
Module
This procedure assumes that you have already removed the old fan
module from the chassis and are continuing directly from the previous
procedure, “Removing the AT-SBxFAN12 Fan Module” on page 278. To
install the new fan module, perform the following procedure
1. Orient the new module with the LED and module name on top and
carefully slide the module into the slot in the chassis. Refer to Figure
176 on page 282.
