Figure 130: opening the plastic cover – Allied Telesis AT-SBx31CFC960 User Manual
Page 190
Chapter 9: Powering On the Chassis
190

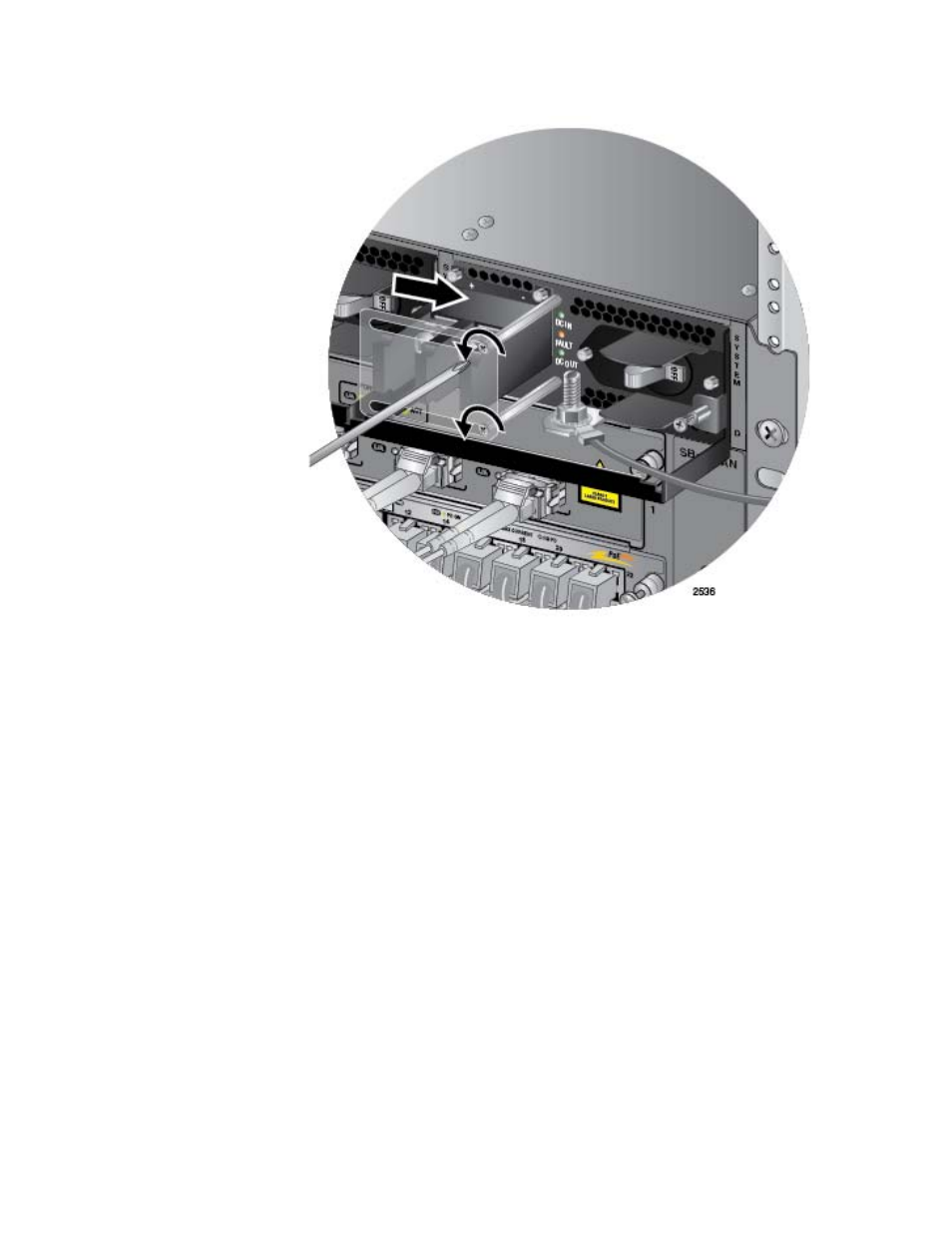

Figure 130. Opening the Plastic Cover
5. Use a #3 Phillips-head screwdriver to remove the two screws from the
positive and negative terminals, as shown in Figure 131 on page 191.
