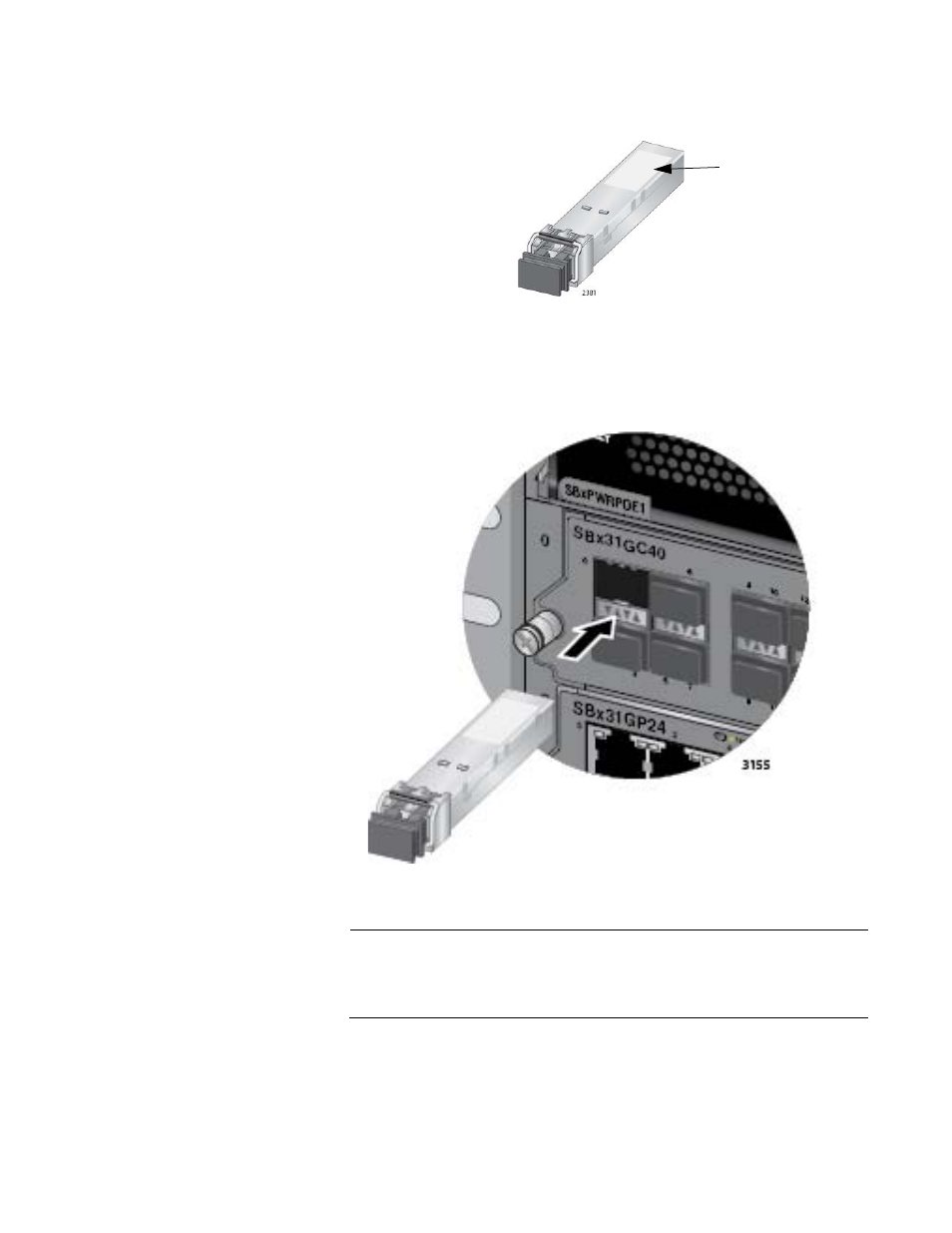

Figure 90. Labels on SFP and CSFP Transceivers
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 91.
Figure 91. Inserting an SFP or a CSFP Transceiver
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 4 to install
the remaining SFP or CSFP transceivers in the line cards.
5. Remove the protective cover from the ports on the transceiver, as
shown in Figure 92 on page 152.
Label
