Chapter 8: Installing the Transceivers and Cabling the Ports
168
Installing SFP or SFP+ Transceivers in the AT-SBx31CFC960 Card
The AT-SBx31CFC960 Controller Fabric Card has four slots for
1000Mbps SFP or 10Gbps SFP+ transceivers. The transceivers can be
used for high-speed links to network servers, switches, routers, or other
network devices. The list of supported SFP and SFP+ transceivers for the
controller card is available on the Allied Telesis web site.
To install SFP or SFP+ transceivers in the controller card, perform the
following procedure:
1. Remove the dust plug from the slot chosen for the transceiver, as
shown in Figure 106.

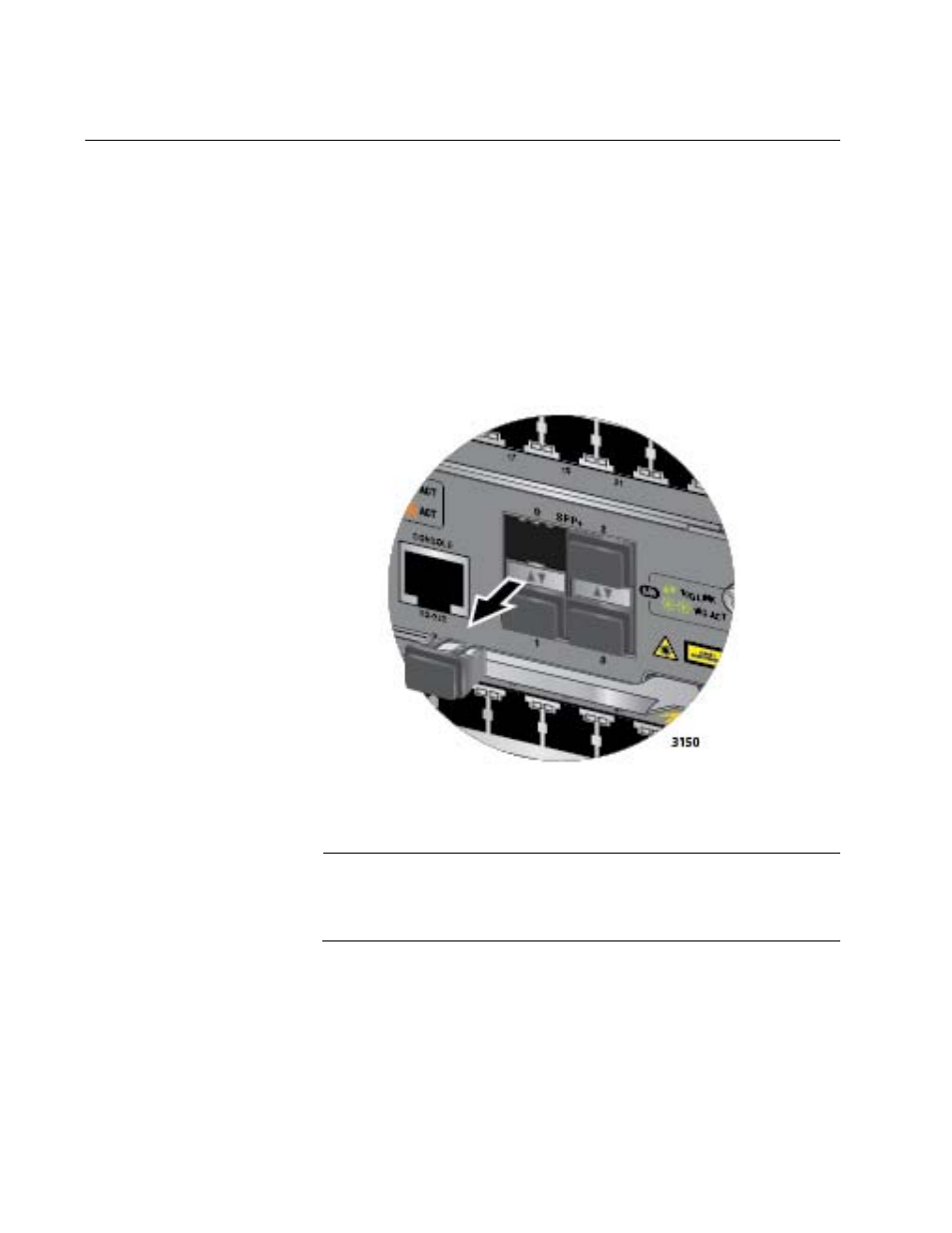

Figure 106. Removing a Dust Cover from a Transceiver Slot in the AT-
SBx31CFC960 Controller Fabric Card
Note
Do not remove a dust plug from a transceiver slot if you are not
installing a transceiver at this time. A dust plug protects the
controller card from dust contamination.
2. If you are installing the transceiver in slot 0 or 2, orient it with the
handle on top, as shown in Figure 107 on page 169. To install it into
slot 1 or 3, orient it with the handle on the bottom.
