Chapter 7: Installing the AT-SBx31CFC960 Card and Ethernet Line Cards
128
Installing the AT-SBx31CFC960 Controller Fabric Card
This section contains the installation procedure for the AT-SBx31CFC960
Controller Fabric Card. You may install either one or two controller cards
in the unit. The chassis must have at least one card. The cards must be
installed in slots 4 and 5 in the chassis.
Note
Please review “Guidelines to Handling the Controller and Line
Cards” on page 126 before performing this procedure.
Note
For instructions on how to upgrade an operational chassis to the AT-
SBx31CFC960 Controller Fabric card from the older AT-SBx31CFC
Card, refer to Chapter 11, “Upgrading AT-SBx31CFC to AT-
SBx31CFC960 Controller Fabric Cards” on page 223.
This procedure requires the following tools:
 #2 Phillips-head screwdriver (not provided)
 #2 Phillips-head, 5 inch-lbs torque screwdriver (optional — not
provided))
To install the AT-SBx31CFC960 Card, perform the following procedure:
1. Choose a slot in the chassis for the AT-SBx31CFC960 Controller
Fabric card.
The card must be installed in slot 4 or 5. If you are installing only one
control card, you may install it in either slot. Refer to Figure 67.

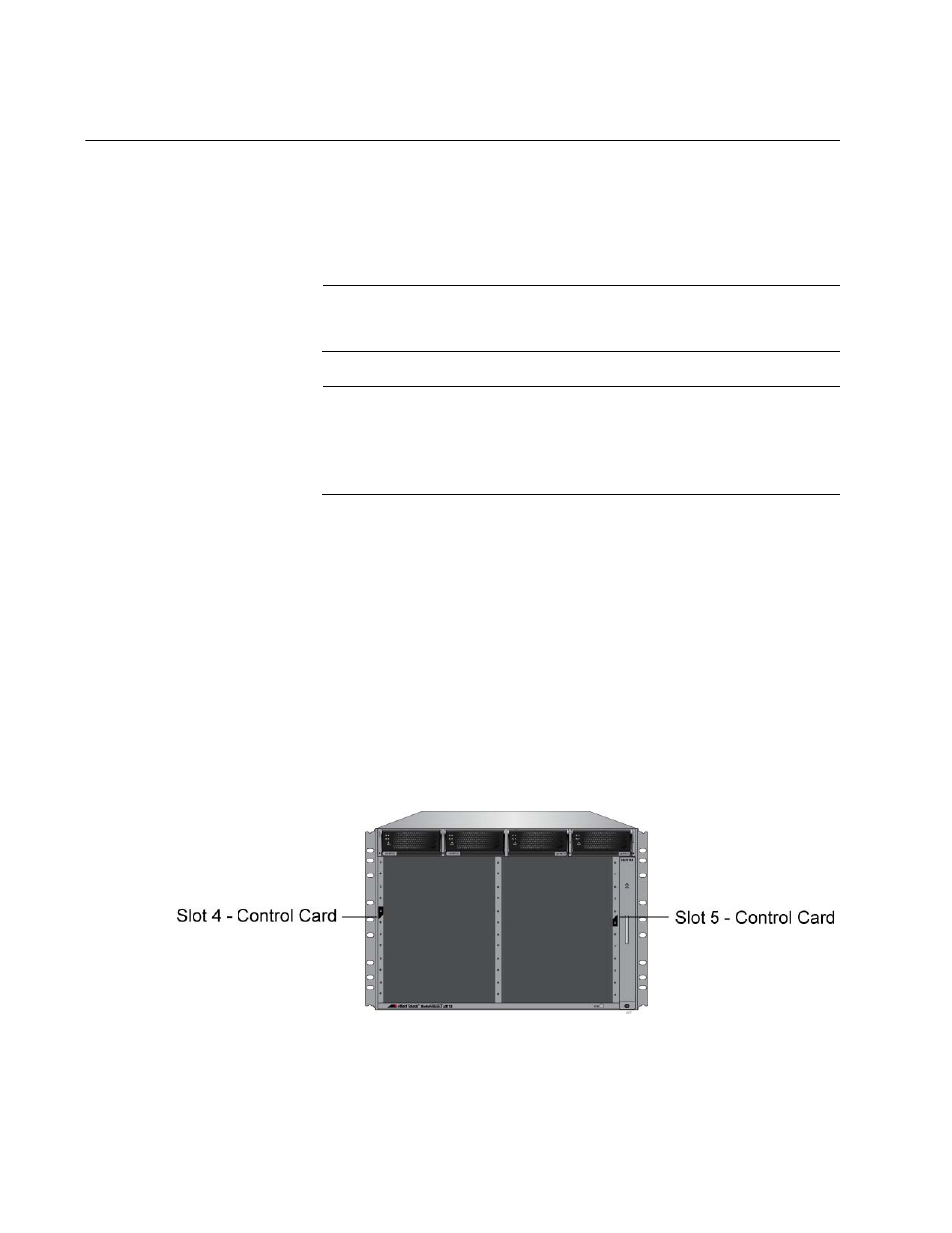

Figure 67. Slots 4 and 5 for the AT-SBx31CFC960 Card
2. Remove the new AT-SBx31CFC960 Card from the shipping package
and verify the package contents, listed in Figure 68 on page 129.
