AT-TQ Wireless Access Point Series User’s Guide
77
After performing steps 1 to 5, do one of the following:
 If the radios in the other access points of the bridge are already
enabled, continue with this procedure.
 If the radios in the other access points are disabled, the default
setting, end your current management session, start a new session
on another unit, and repeat this procedure.
Configuring the
WDS Bridge
To configure the WDS bridge settings, perform the following procedure:
1. Select WDS from the Manage menu.
The access point displays the “Configure WDS bridges to other access
points” window, shown in Figure 21.

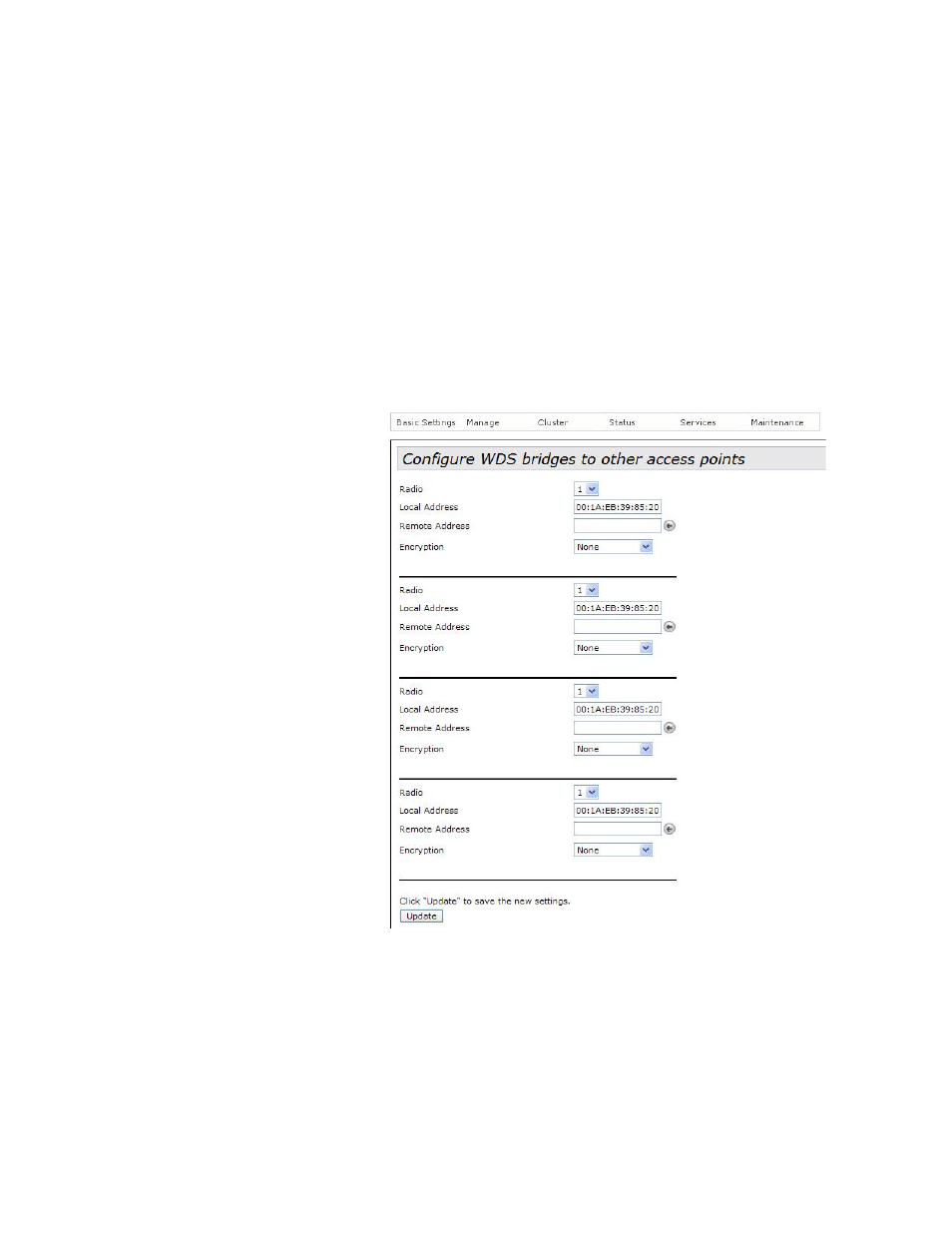

Figure 21. Configure WDS Bridges to Other Access Points Window
The window has four sections. You may use each section to create a
WDS bridge to a different access point.
2. Use the Radio pull-down menu in one of the sections to select the
radio for the WDS bridge between the access points. Radios 1 and 2
are the 2.4 and 5 GHZ radios, respectively, The default is radio 1.
