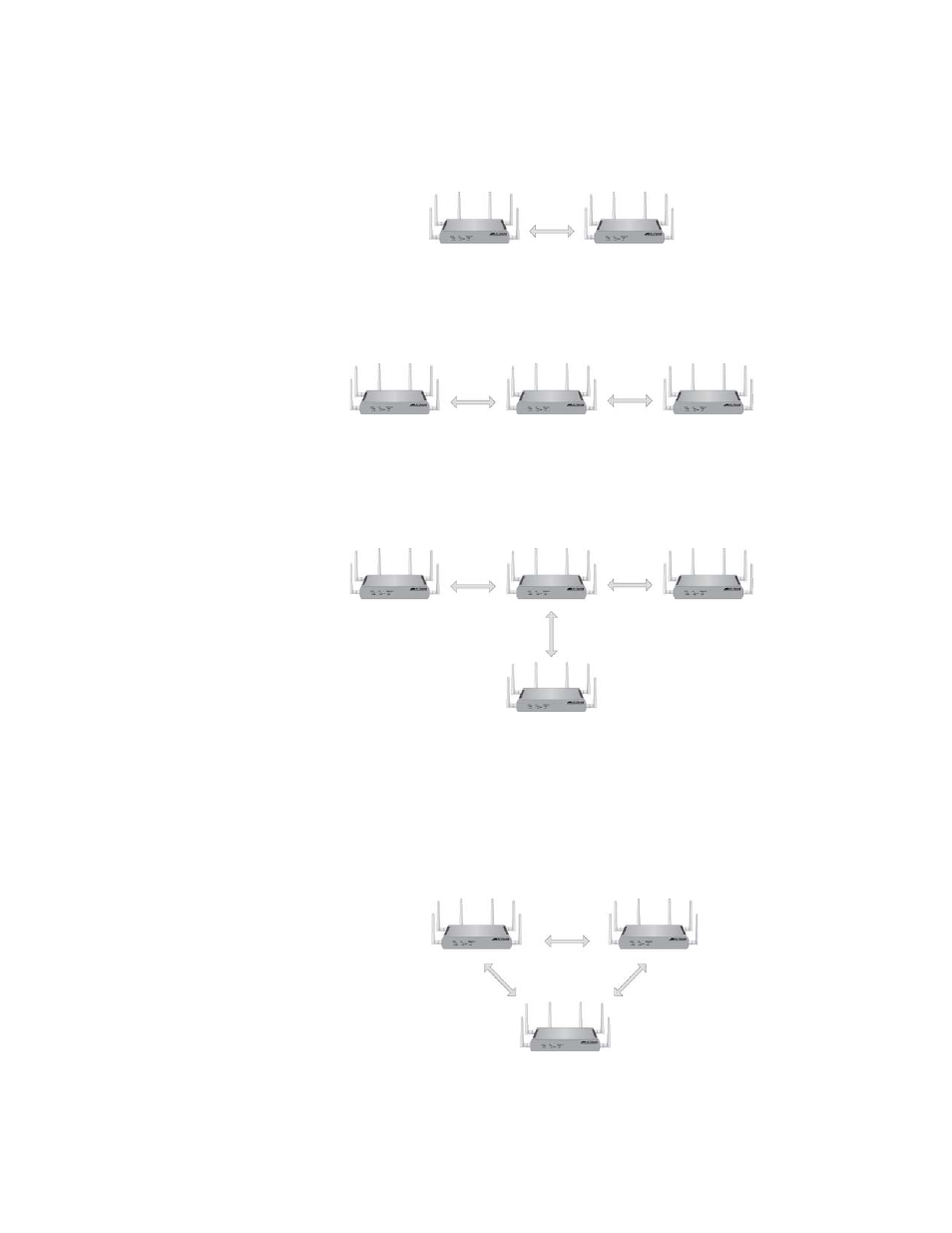

Figure 17. Valid Configurations of WDS Bridges
Here are the configuration restrictions of WDS bridges:
The wireless connections of the access points in a WDS bridge
must not form a loop. For instance, Figure 18 is an invalid loop
configuration of three access points.
Figure 18. Invalid Loop Configuration of Access Points
One configuration for a WDS bridge of two units.
One configuration for a WDS bridge of three units.
One configuration for a WDS bridge of four units.
