Chapter 5: Status Menu
134
Viewing Basic IP and Radio Information
To view basic configuration settings about the LAN port and radios, select
the Interfaces selection from the Status menu. The selection displays the
“View settings for network interfaces” window, shown in Figure 43.

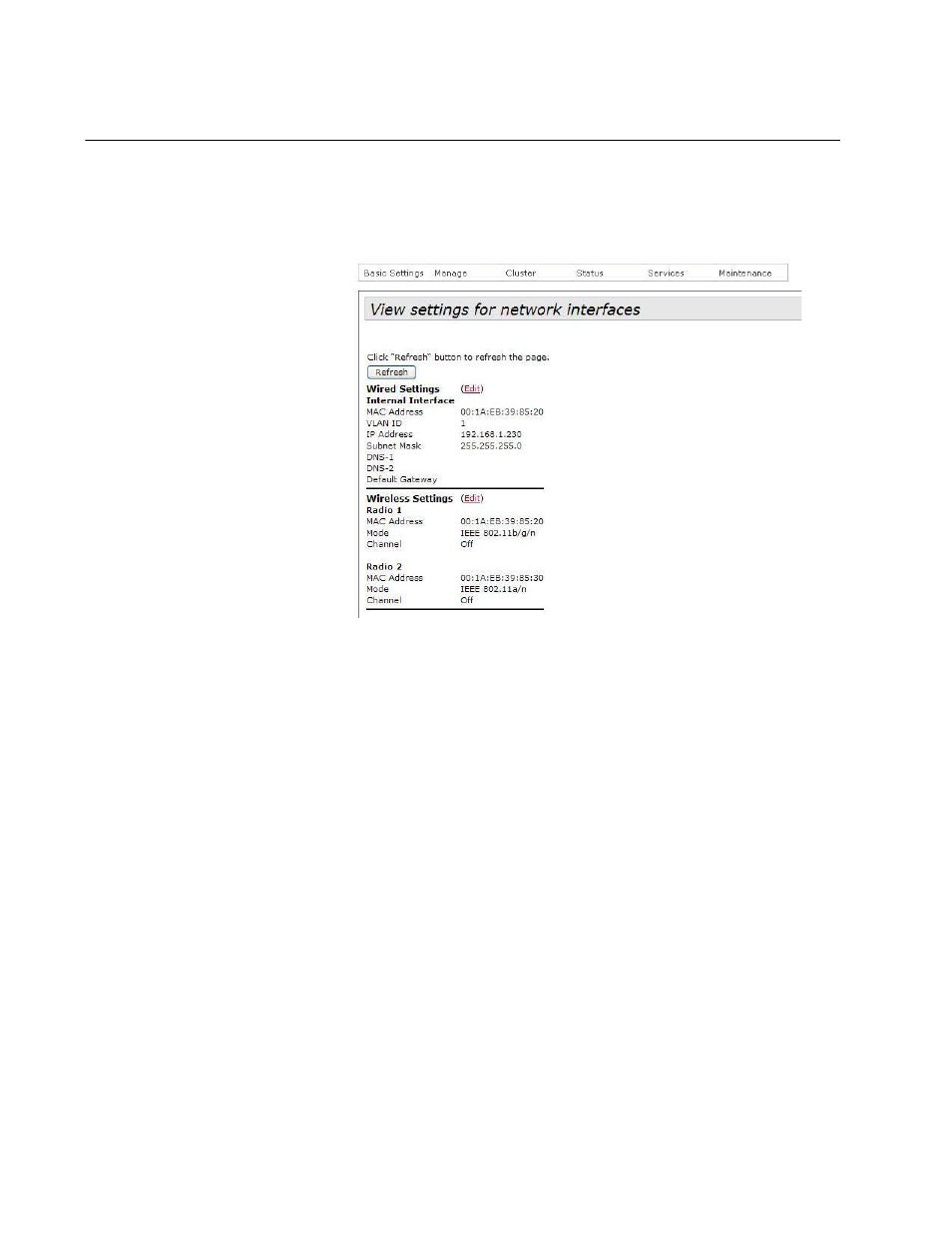

Figure 43. View Settings for Network Interfaces Window
The top section of the window displays the MAC and IP addresses of the
access point, along with the subnet mask, default gateway, and domain
name servers. To configure the settings, click Edit to display the “Modify
Ethernet (Wired) settings” window, shown in Figure 7 on page 36, and
explained in “Assigning a Static IP Address to the Access Point” on
page 36 and “Assigning a Dynamic IP Address from a DHCP Server to the
Access Point” on page 38.
The bottom section of the window displays the basic settings of the radios
and includes their MAC addresses, operational modes, and channels. To
configure the settings, click Edit to display the “Modify wireless settings”
window, shown in Figure 8 on page 41 and explained in “Configuring
Basic Radio Settings” on page 43. To configure additional radio settings,
refer to “Configuring the Radio Settings” on page 46.
