ADV/MATE/AGS-----------------------

choose category

QUIET VOLT

SETUP TIME START PG2

ADV/MATE/AGS/PG2----------------

choose category

LOAD MUST

PG1 START RUN PG3

ADV/MATE/AGS/LS------------------

load start 0 kw

DOWN AGS INC DEC

ADV/MATE/AGS/LS------------------

load start 1 min

delay

DOWN UP INC DEC

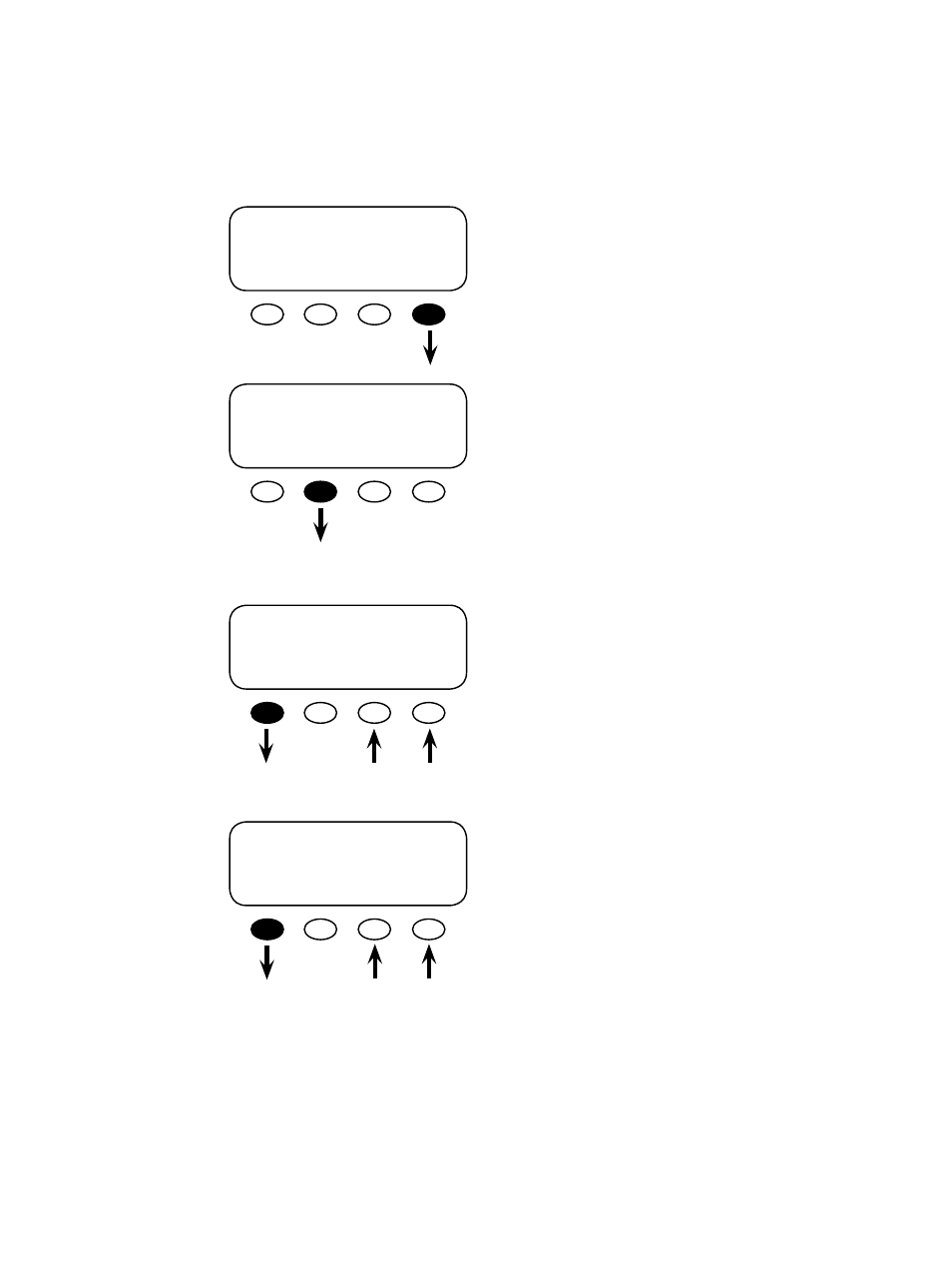

Go to the ADV/MATE/AGS screen and press the

soft key.

At the ADV/MATE/AGS/PG2 screen, press the

soft key.

In the load start kw screen, an AGS start command

will be issued when the total AC load of all the FXs

connected to the MATE exceeds this setting for the

load start delay (next screen) time. A zero value

disables any load start function. and

adjusts this setting between 1 – 50kW. After the

value has been set, press the soft key to

get to the load start delay screen.

This setting is the delay time that the total system AC

load must remain above the load start kw setting (see

previous screen), before the generator is started. It is

adjustable from 1 to 240 minutes using the

and soft keys. After making any adjustments

to the delay time, press the soft key to go

to the load stop kw screen.

Load Start KW

Load Start Delay

To open the Load Start screen:
